Kayak HD — Installation and Service Manual 77
Kayak HD Video Timing

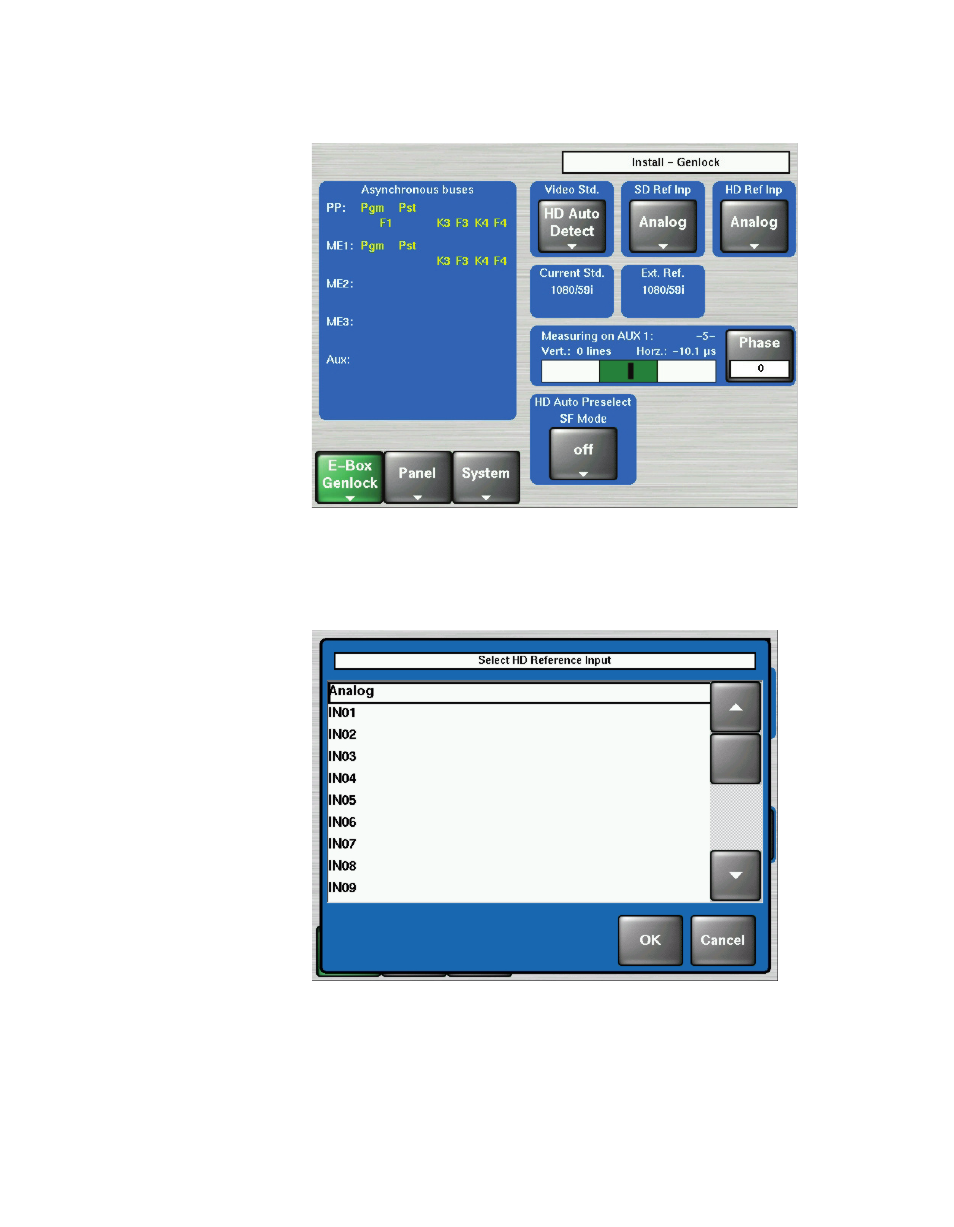

Figure 43. Genlock Menu
Note In Figure 43 the HD Ref Input button displayed reads Analog, but your
switcher may be using a different HD Reference signal.
Figure 44. Select HD Reference Input Menu
2. Press on the arrows to scroll through the list. Press to select the name of
the HD Reference Input signal you want to use. These signals
correspond to video inputs associated with the physical inputs on the
back of the Kayak HD frame.
KHD_I
