158 Kayak HD — Installation and Service Manual
Section 4 — Maintenance
Control Processor Board Replacement
When replacing the 671-6630-00, 691-0000-00, or 771-0060-00 control pro-
cessor board, in either the 4U or 8U Frame, verify that the S2 Boot Mode
Dipswitch settings are all in the up or
Normal position. The dipswitch is
located next to the Flash card on the control processor board, as shown in
Figure 106 .

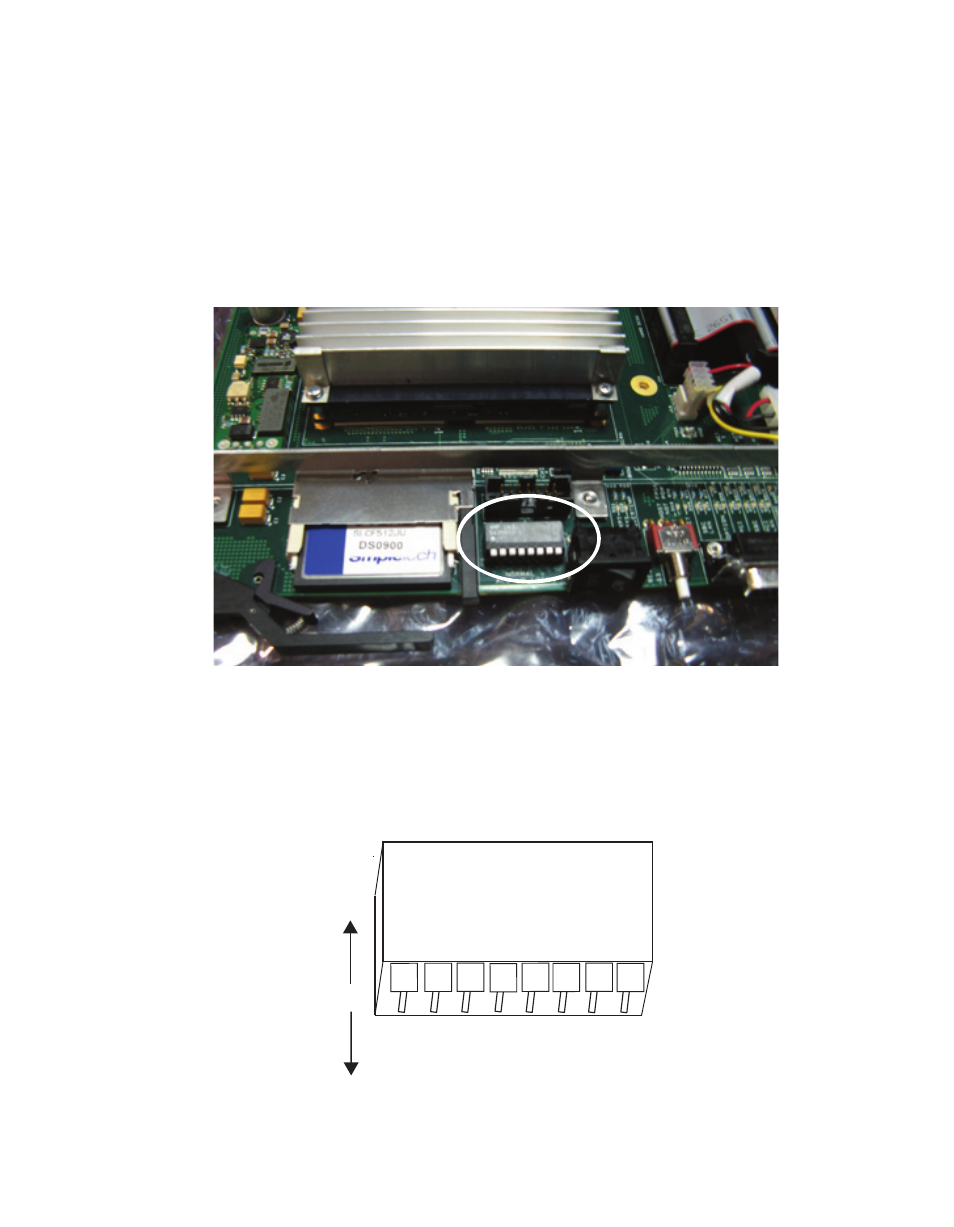

Figure 106. Kayak Control Processor Board - S2 Boot Mode Dipswitch Location
CAUTION If the Dipswitch settings are not in the up or Normal position, the system may
not boot.
Figure 107 shows the S2 Boot Mode Dipswitch settings in the up or Normal
position.
Figure 107. Kayak Control Processor Board - S2 Boot Mode Dipswitch Setting
8448_60_Ct
rlB
rdDipSwitch
All Up=Normal
Down=Factory Use Only
8448_60_Ct
rlB
rdDipSwitchSet
S2 Boot Mode Dipswitch
