Kayak HD — Installation and Service Manual 153
Troubleshooting and Diagnostics

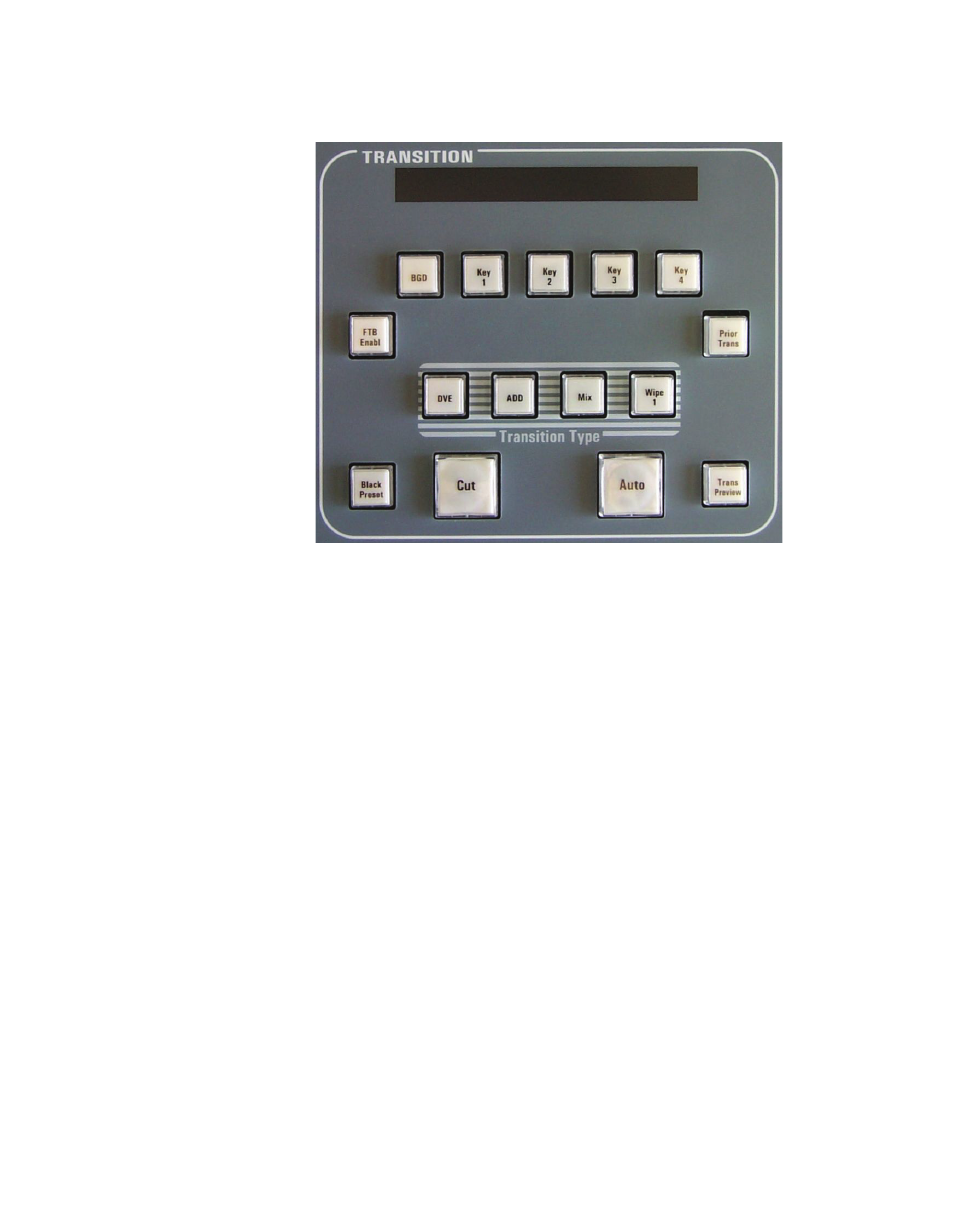

Figure 105. Kayak HD Control Panel Detail - Transition Panel
Local Panel Test Mode 1 (Button Test):
1. Simultaneously press the buttons:
Black Preset + Trans Preview + BGD
2. Now press and hold down a button. This test displays the logical
address of the button pressed.
Local Panel Test Mode 2 (LED Test):
1. Simultaneously press the buttons:
Black Preset + Trans Preview + Key1
2. In this test the light for the button pressed is lit. The associated LEDs
under the panel light when the button is pressed and held.
Special test buttons:
BGD, Key1 - Key4 Turns on associated LEDs under the panel
Shift, Make
(PGM+PST+Delegation) Turns on the Uncal LEDs under the panel
Key1 Cut / Key4 Cut Turns on the arrow ( Fader ) LEDs
