Install – UMD Menu
Grass Valley offers a wide range of programmable 8-character Under
Monitor Displays, especially designed for use in Production Switcher
applications and in Control Systems for indication of source names and
Tally. Single, double and triple displays are available.
The standard modules offer green 8-character displays with red tally lights
an both sides of the display, able to be switched individually on and off for
yellow Tally. The latest versions comprise dual-color-8-character displays
which will switch the source name characters from green to an intensive
red for Tally indication.
The menu serves for installing the Under Monitor Displays connected with
the Kayak HD and set the tally mode. For details refer to your Under
Monitor Display manual.

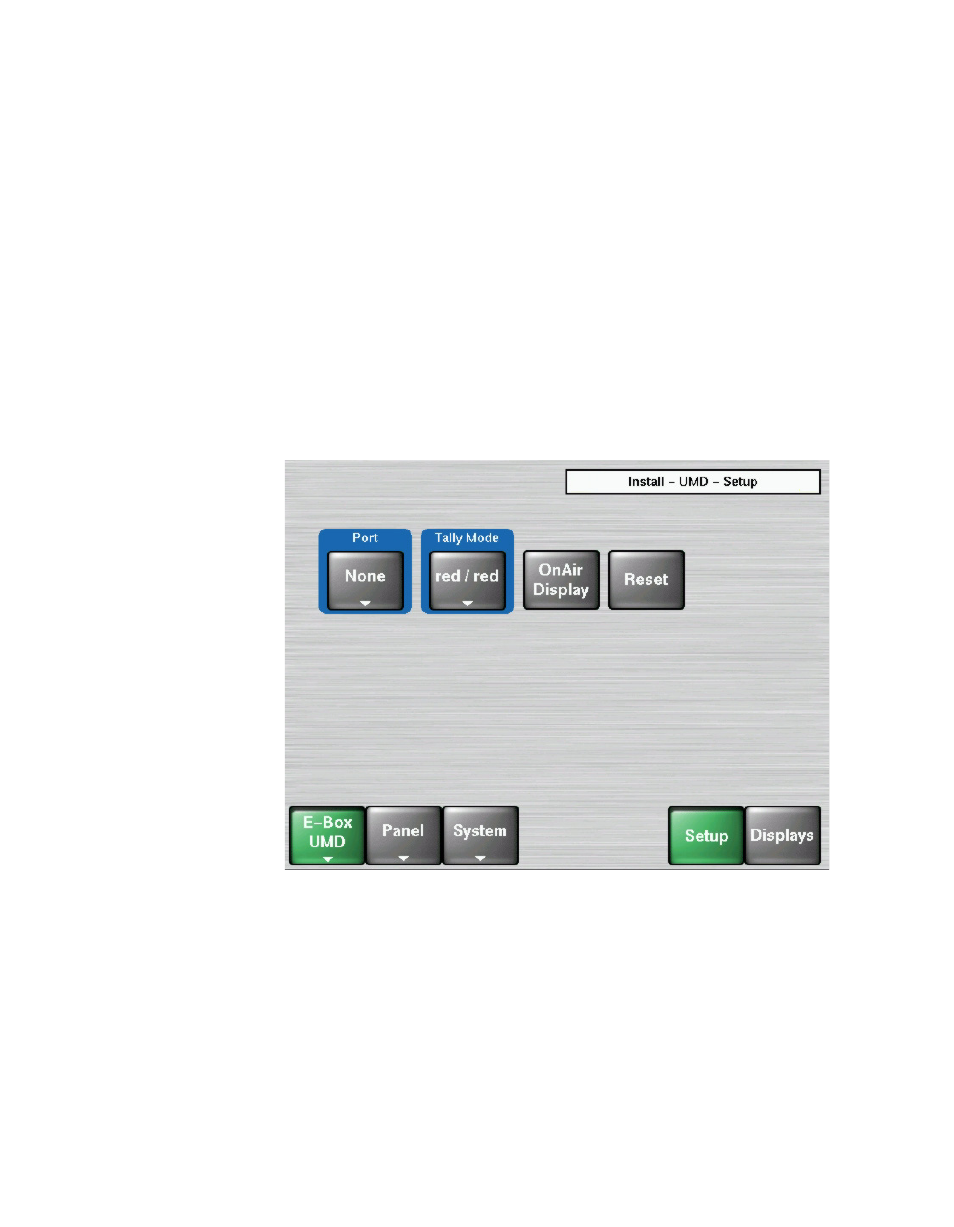

Figure 89. Install – UMD Setup Menu
Port
Touching the Port button opens a dialog with all ports plus ”None” like in
all other menus where a port must be configured.
Note Note: The port must be different to the ports used for Routers, DVEs, Editors,
ext. DSKs, etc.
