Grass Valley Kayak HD Installation v.6.8.8 User Manual
Page 73
Kayak HD — Installation and Service Manual
73
Kayak HD Video Timing

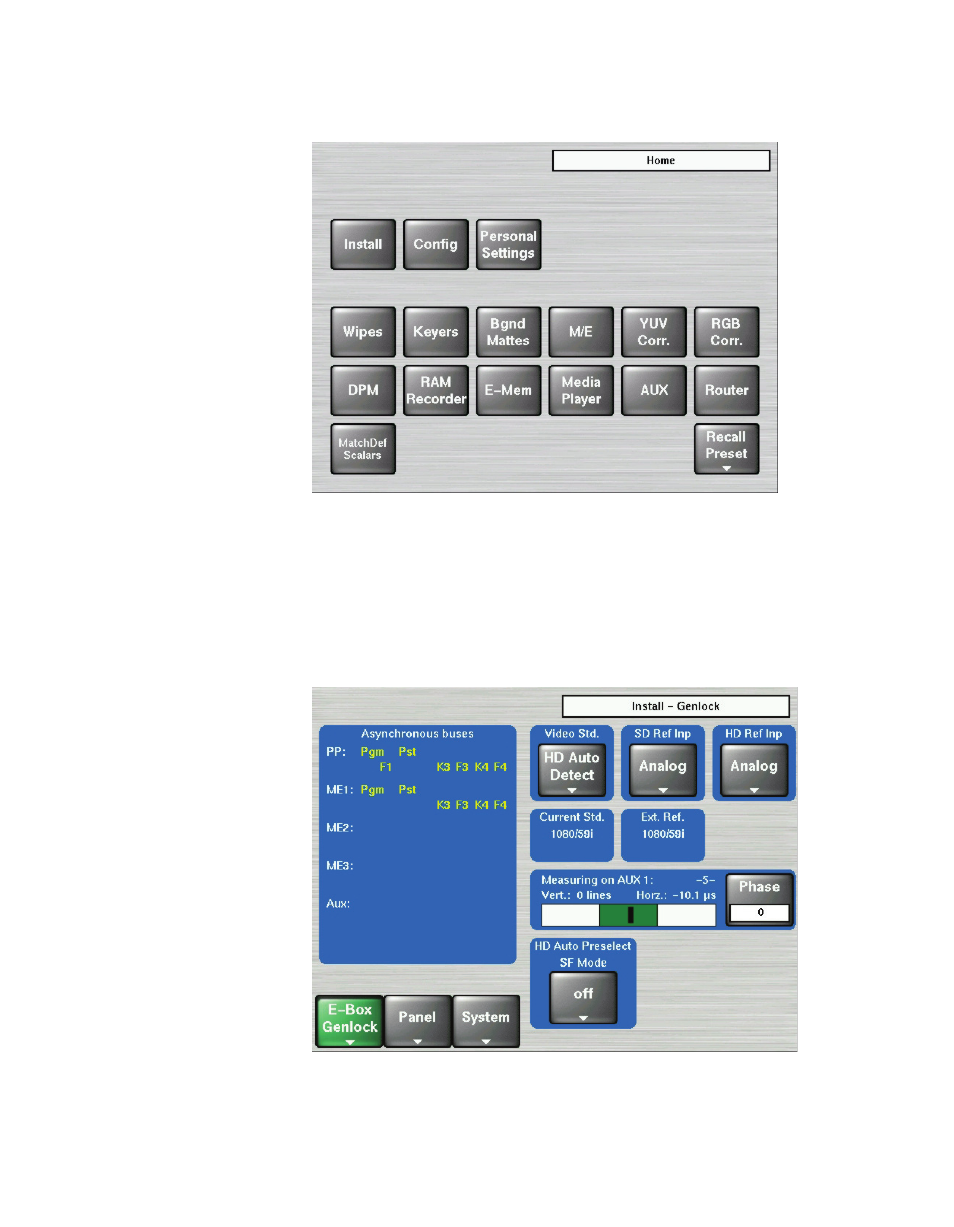

Figure 39. Kayak HD Home Menu
2.
Press the
Install
button in the upper left-hand corner of the menu.
3.
Press the
E-Box Genlock
button to display the
Genlock
menu. The
Genlock
menu reports the status of the Kayak HD system sync generator. It is
used to switch between HD and SD operating modes and to adjust the
internal system timing.
Figure 40. Genlock Menu with Video Signal in Green Legal Timing Window
KHD_I
ns
tall_Ge
n
lock_LegalT
imi
n
g
