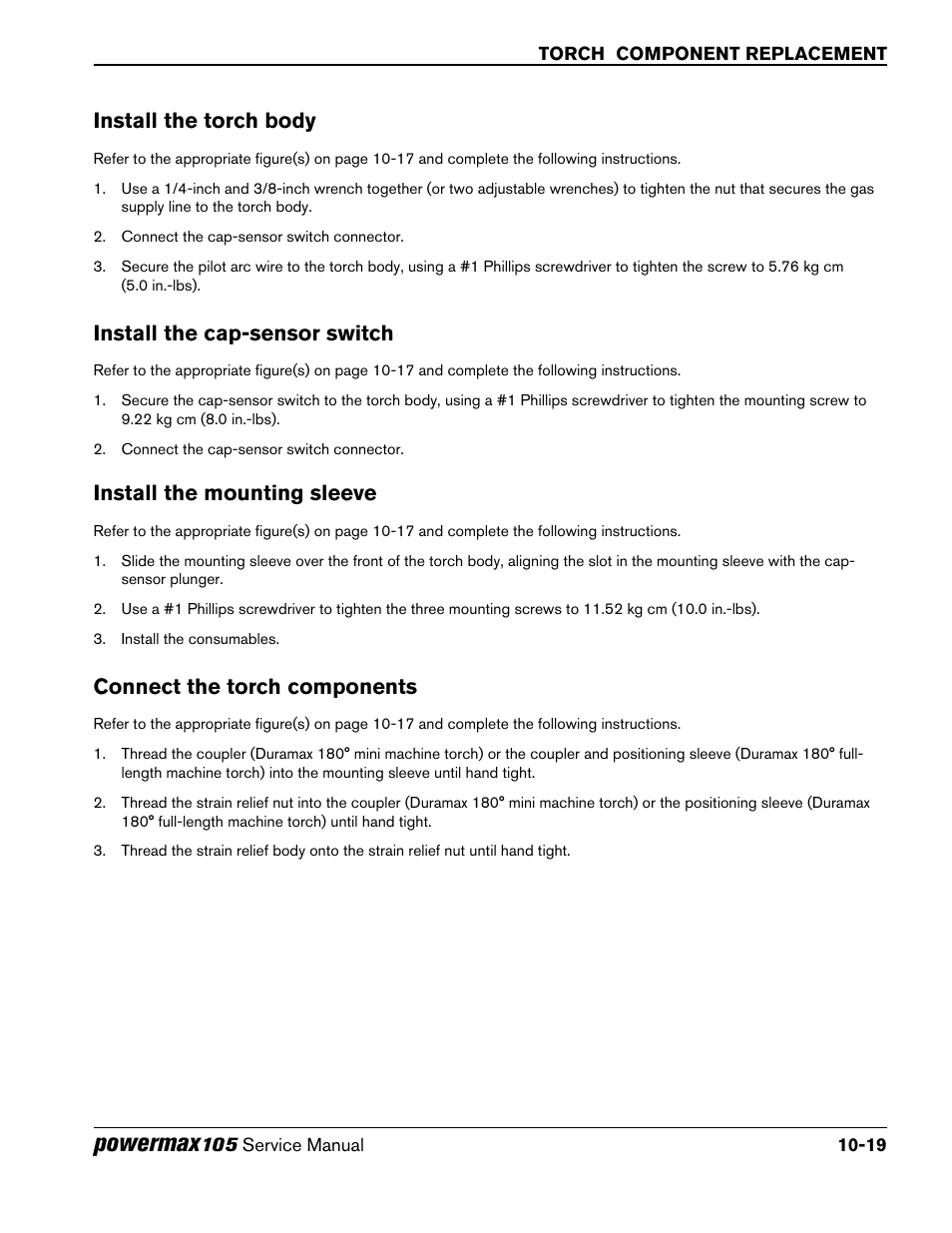

Install the mounting sleeve, Connect the torch components, Install the cap-sensor switch – Hypertherm Powermax105 Service Manual User Manual
Page 309: Install the torch body, Powermax
