10 • 2. Loading Supplies Users Manual - 610 / 611 / 612 Printers

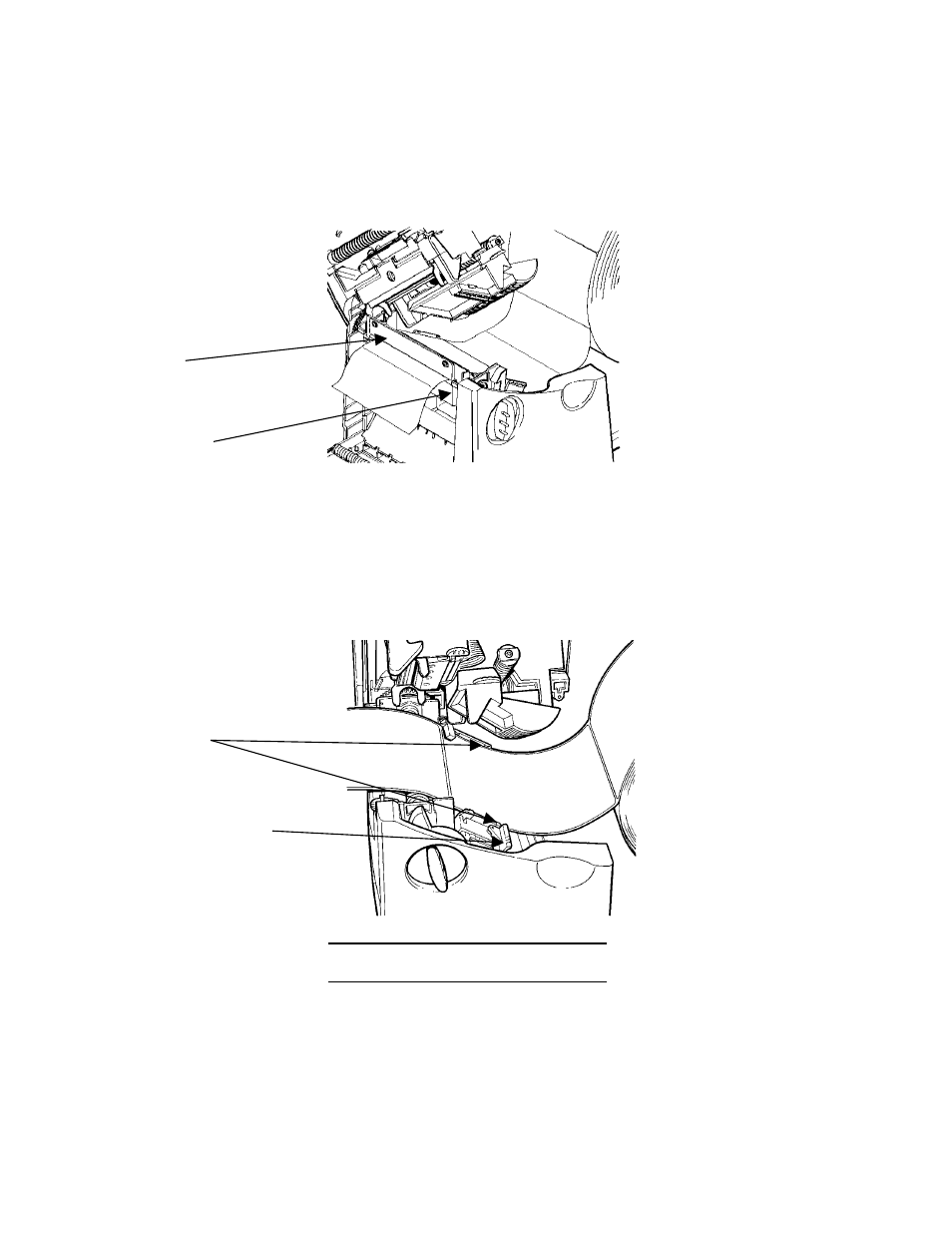

6. Push down on the supply lever to unlock the supply guides.
7. Lay the label strip across the supply guide. Lift the auxiliary rollers slightly and thread the
supply under the rollers until it appears in the knife opening.
CAUTION
Make sure the supply is straight in the supply path and
aligned with the printhead.
8. Tuck the supply under the nibs.
Make sure a few inches of supply are past the front end of the printer.
Nibs
Supply Lever
Peel Bar
Ribbon Bar
