Asymmetric Test
46 ETS-1000G
Testing Example
Testing Example
The following description is an example of an asymmetric testing for the
BERT (for RFC 2544 procedure is similar).

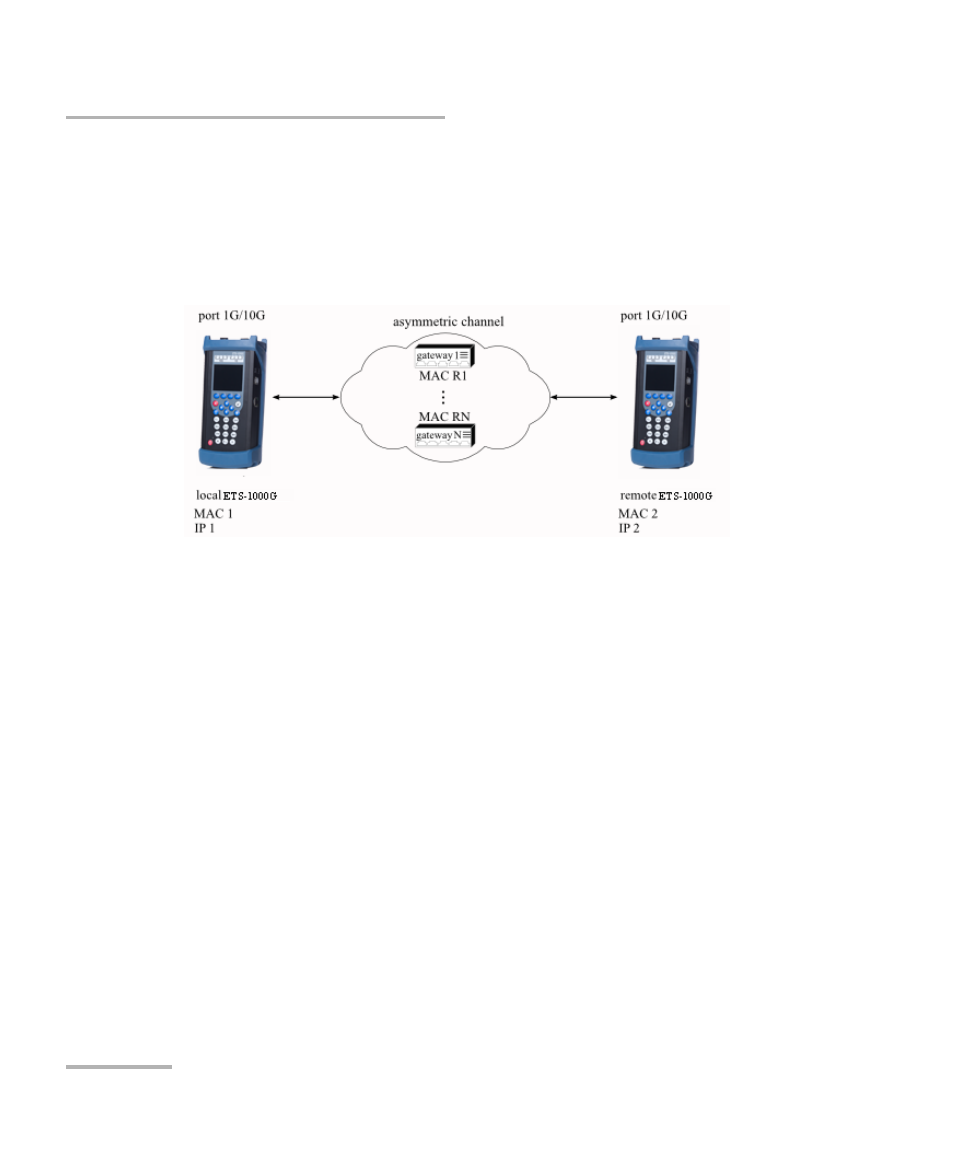

Connection scheme is shown in the following image.
The following notation conventions are used in the diagrams:
MAC 1 – local device MAC address;
IP 1 – local device IP address;
MAC R1 – MAC-address of the gateway that is nearest to the local
device;
MAC RN – MAC-address of the gateway that is nearest to the re-
mote device;
MAC 2 – remote device MAC address;
IP 2 – remote device IP address.
To perform measurement in the direction from local device to
remote, do the following:
1. Make sure that the local and remote device support asymmetric test
function: in the ETS-1000G. Setup > Device settings > Options menu
list of options should contain XAT option.
