Latency test results – EXFO ETS-1000G User Manual
Page 50
Analyzing RFC 2544
40
ETS-1000G
Latency Test Results
1. The maximum value on the Y-axis indicates the maximum data rate.
Empty columns indicate the maximum theoretical throughput value.
2. The maximum value on the Y-axis indicates the maximum measured
throughput value.
In both cases values on the X-axis indicate frame size values.
Filled columns in the diagram are used for displaying the throughput value
obtained as a result of testing which is expressed in fps and in percentage
terms relative to the stated load.

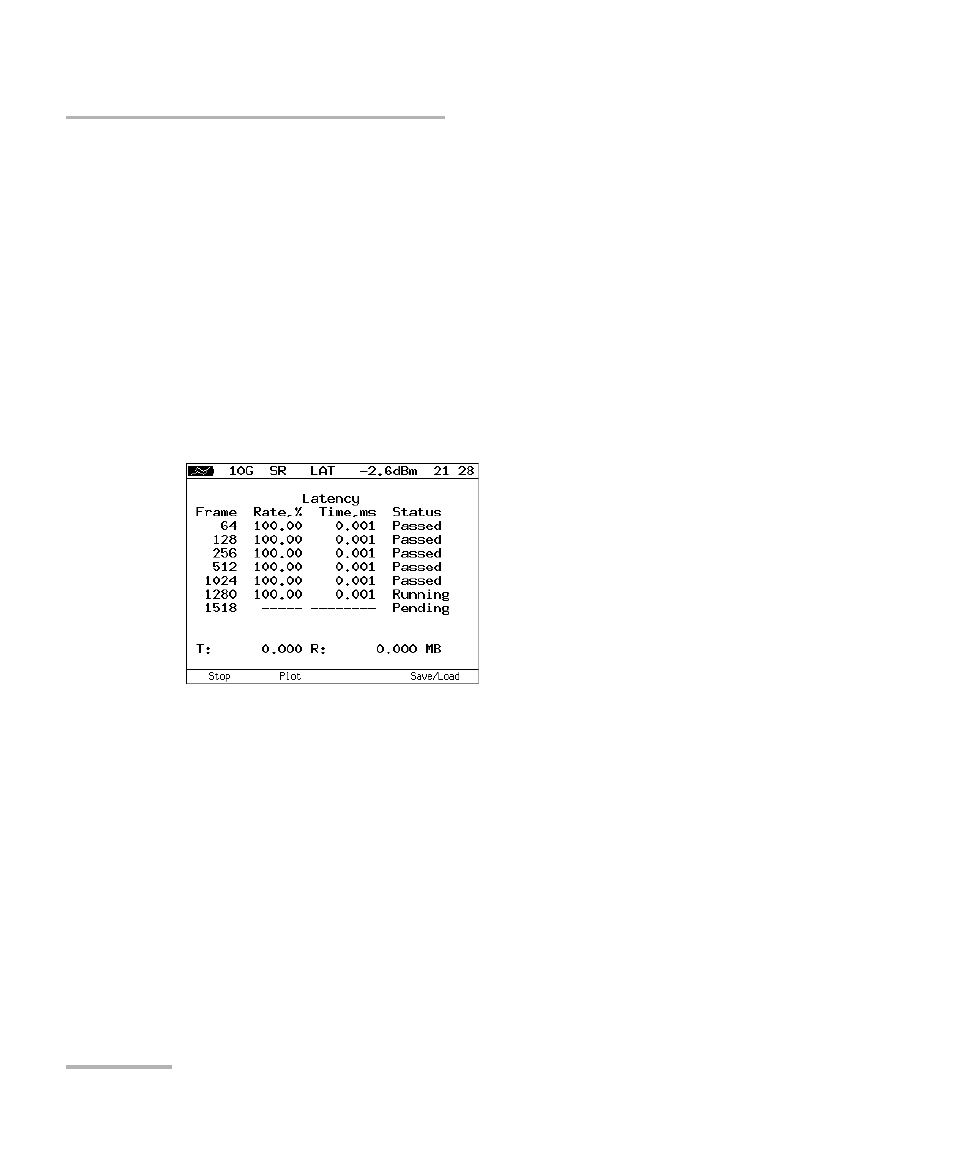

Latency Test Results
The table displays an average latency value (in ms) for each data frame
size specified in the settings and the respective throughput value (in %),
which has been obtained as a result of the Throughput test.
