10 Gigabit Ethernet Analyzer 23
5 Preparing RFC 2544 for
Analysis
To make an analysis in compliance with RFC 2544, it is necessary
to
connect the device to the device/network under test according to
one of

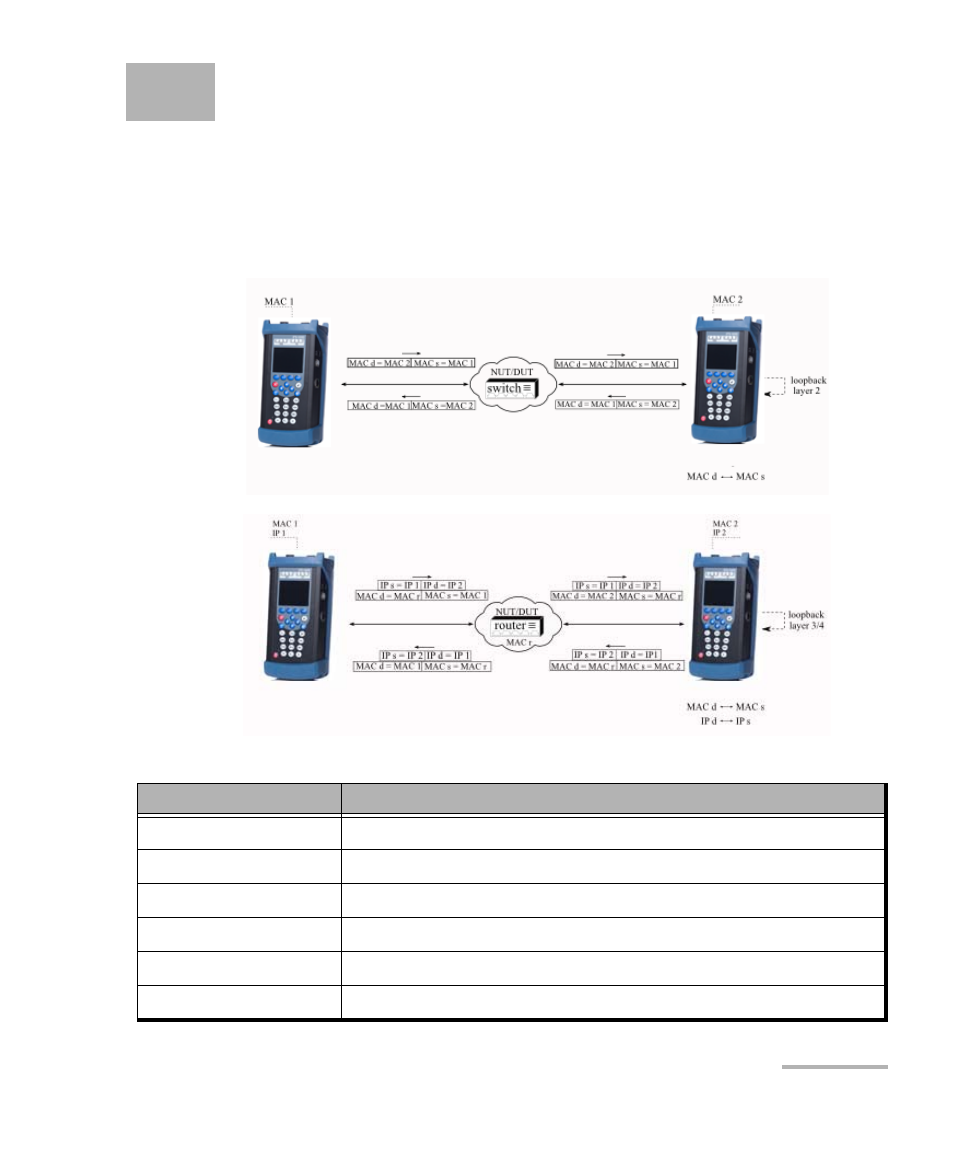

the diagrams shown below.
The following notation conventions are used in the diagrams:
Notation Description
MAC s A sender's MAC address.
MAC d A destination MAC address.
IP s A sender's IP address.
IP d A destination IP address.
MAC r A router's MAC address.
MAC 1 A MAC address of ETS-1000G.
