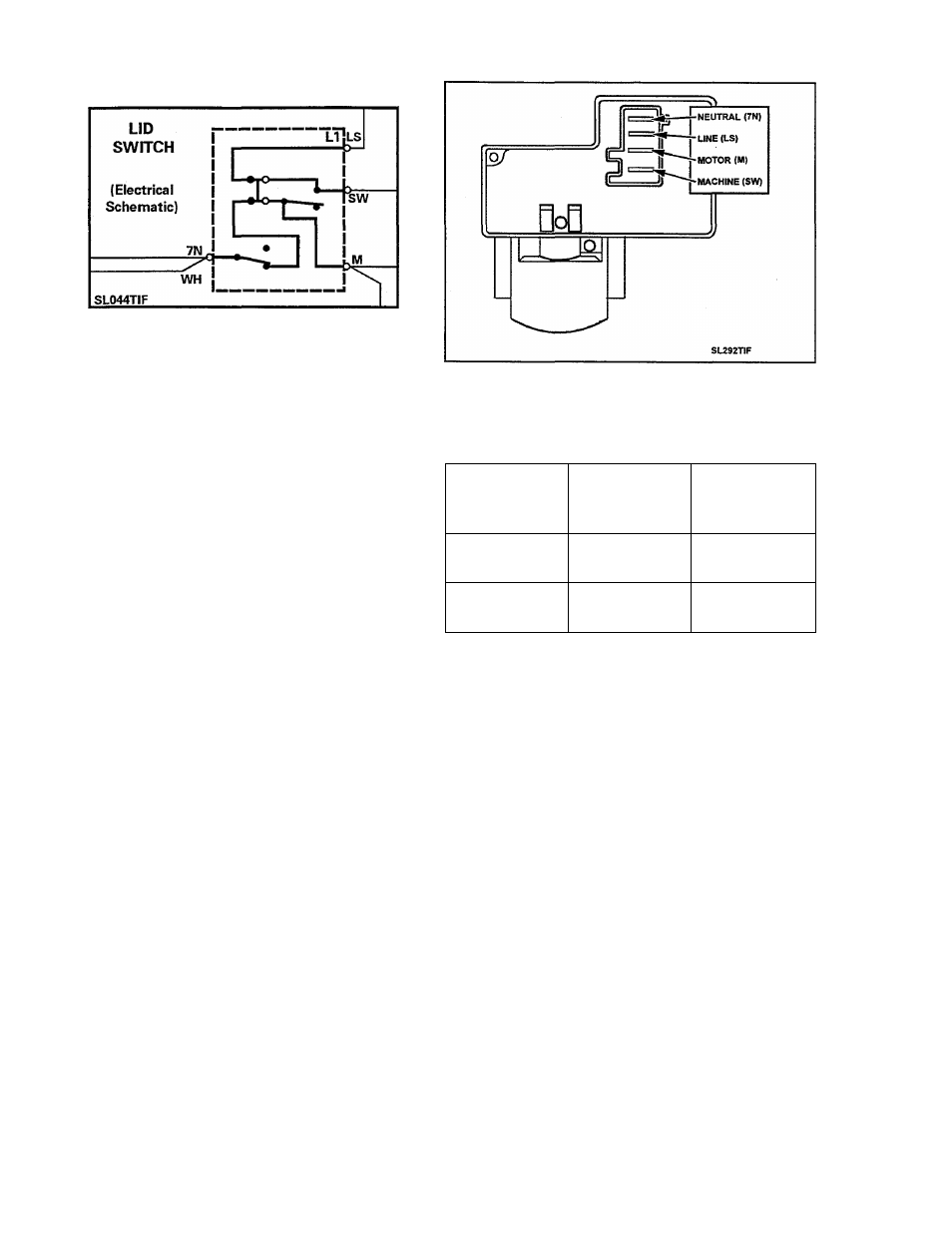

Figure 8-19
Figure 8-20
Unfortunately, the resistive carbon fuse link can­
not be easily detected with a regular ohm
meter.
An easier and more accurate method would
be to measure the resistance between LINE and
MACHINE terminals (Figure 8-20).
A properly functioning machine should show
a CLOSED circuit between LINE and MACHINE,
regardless of lid position.
Terminals
Continuity
Check With
Lid Open
Continuity
Check with
Lid Closed
LI (Line to
SW (Machine
Continuity Continuity
LI (Line to M
(Motor
No
Continuity
Continuity
16009485-01 Section 8. Electrical Components & Testing
©1999 Maytag Appliances Sales Company
8-20
