Lower Bearing

And Housing —
Assembly

Oil Seal ■

Transmission

' Housing

Assembly

Retaining
Ring

Suspension
Housing

Drive Tube
Splines

Drive Shaft
Splines

Brake Spring
Retainer

Brake Rotor

And Lining
Assembly

Brake

Stator

Spacer

Thrust Bearing

Washer (Curved)

Outer Edge

Turned Up

Washer (thin)

~ Upper Race

)>^Washer (thick)

Lower Race

Washer (thin)
Thrust

I Drive Pulley
I Assembly

Lower Cam ■

Retaining

Ring

-Thrust

Washer

■Dust Cap

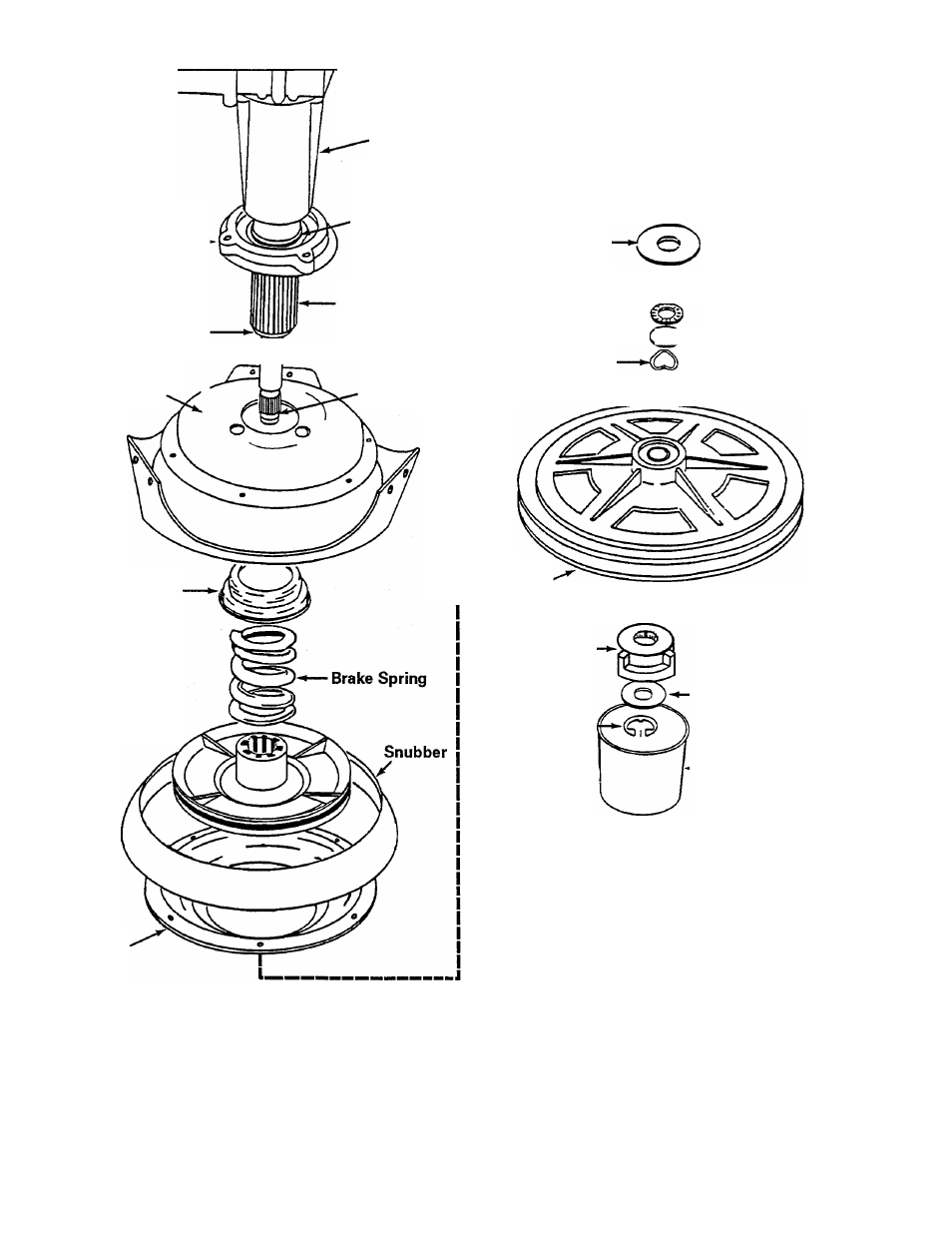

Figure 2-2

16009485-01
