6. Disconnect lower wiring from the cabinet

rear (water mixing valve, power cord, etc.)
and remove pressure switch hose from tub
air bell.

7. Remove the screws attaching the cabinet

to the base.

8. Remove lower screws on cross braces.

9. Push the front of the cabinet slightly back

and carefully push or pull it off the rear of

the base assembly.

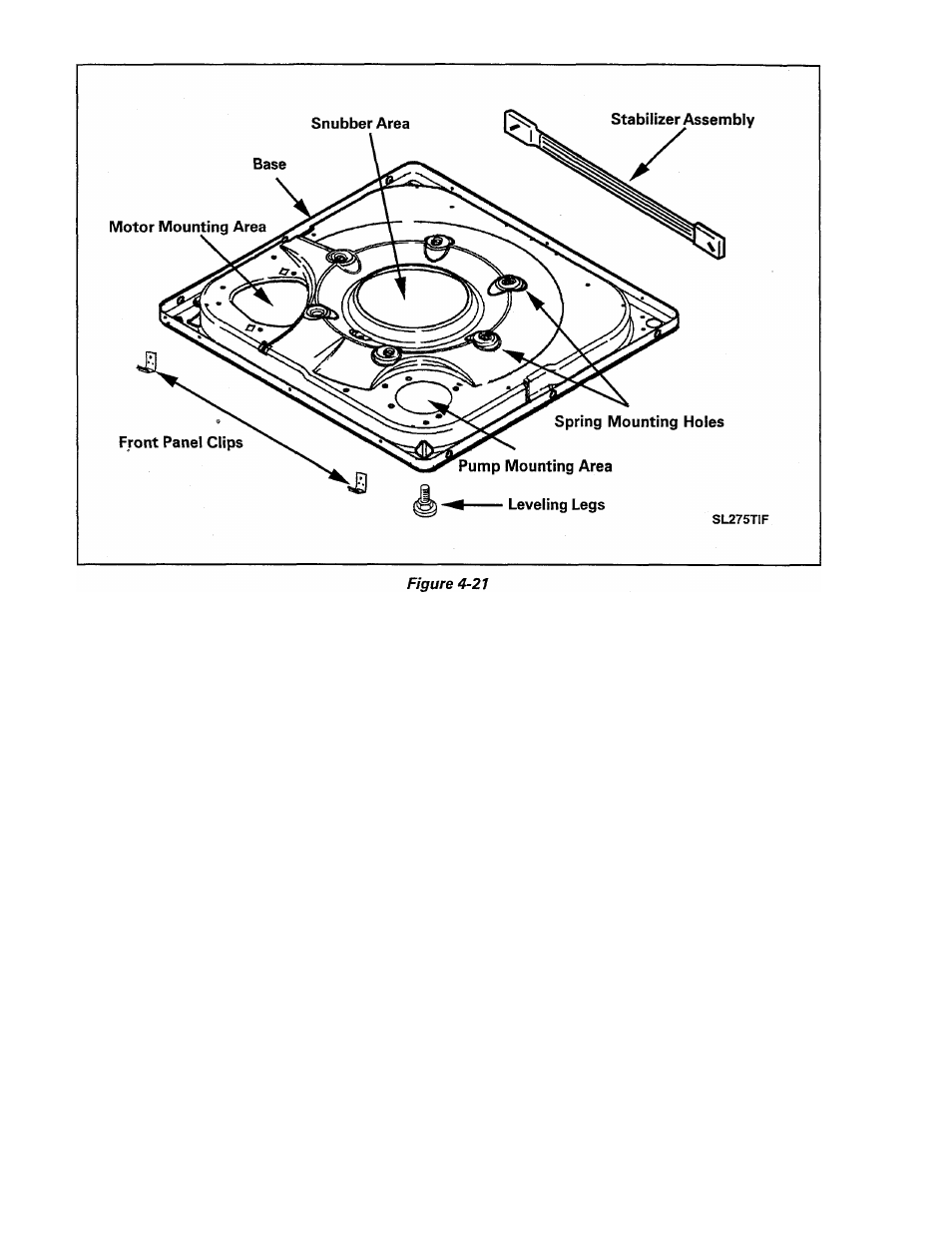

11. Remove motor mounting screws, ground

wire and wiring clips from base. Lift the

motor and plate assembly from the base.

12. Remove the suspension springs (See

SPRING REMOVAL, Page 6-2 thru 6-3).

13. Remove the stabilizer assembly from

the base assembly, as detailed later in
this section.

14. Transfer the remaining hardware from

the defective base to the replacement.

10. Disconnect the pump hose from the tub

outlet and remove the pump assembly and
hose from the base.

15. Installation is a reversal of the above

procedure.
