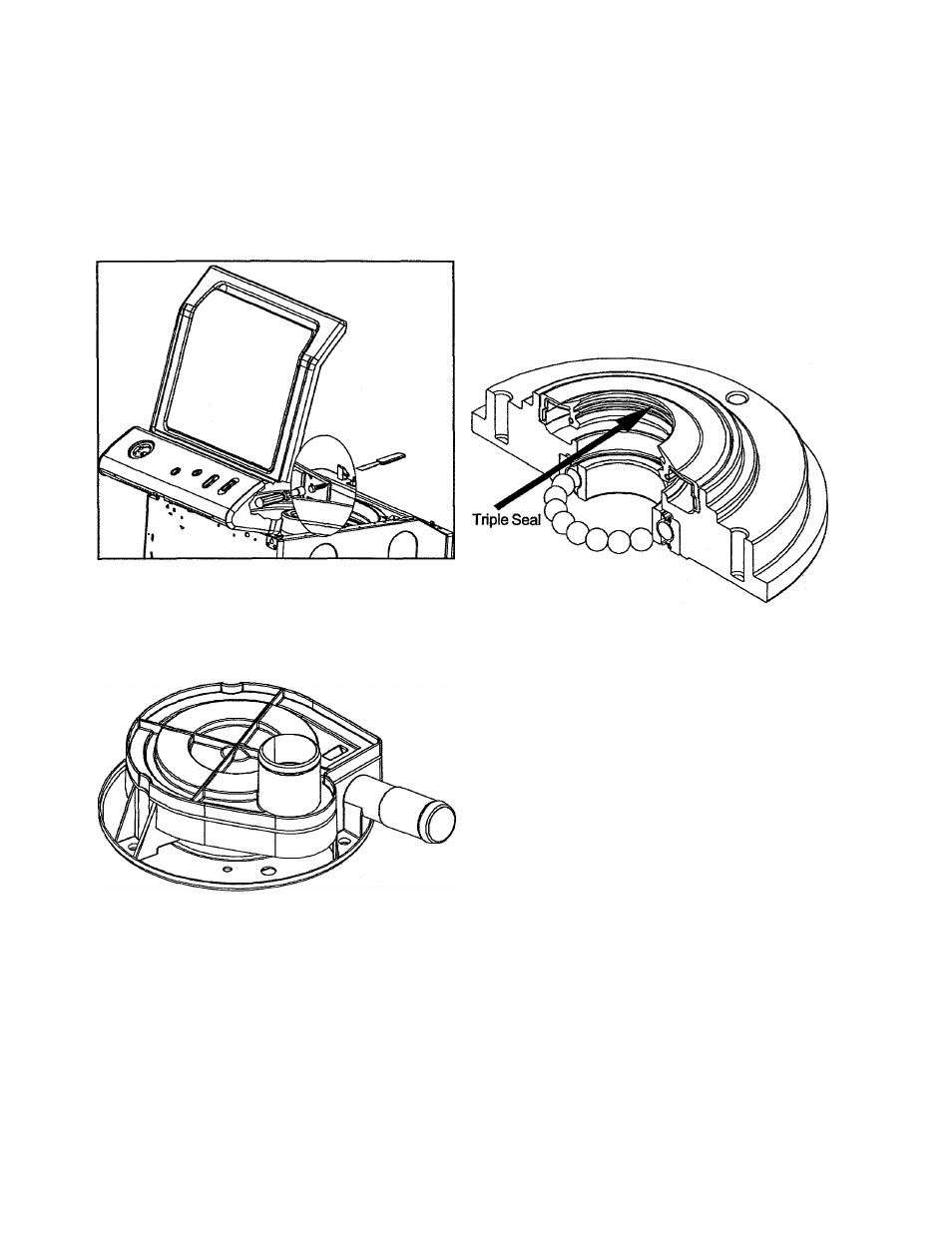

Section 5. Front Removal

Procedure

Lift Top Assembly by releasing spring clips between

top and front panel. Use a plastic putty knife to

disengage clip. Lift top and remove top screws through

the back of the Front Panel. There are two spring clips

a screws one each side.

Section 6. Pump Assembly

Atlantis washers use a new pump assembly which will

be totally replaced should it require repair. A pump kit

will be available containing the entire pump assembly.

Section 7. Tub Seal and

Bearing

The Allantis III Seal and Bearing are unique and are

matched to the duel drive high torque transmission,
used on this washer. When replacing the seal and
bearing, order parts specific to the Atlantis III washer.
The seal and bearing used on older models will not

fuction properly. The seal kit will also be supplied with
the replacement transmission assembly if it is

necessary to install a new one.

16009485-03 Rev. 0
