Page 36

Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

Front panel removal will allow access to the:

Motor
Motor Mount
Motor Wiring
Motor Pivot Spring
Suspension Springs

Tub Brace

Pump

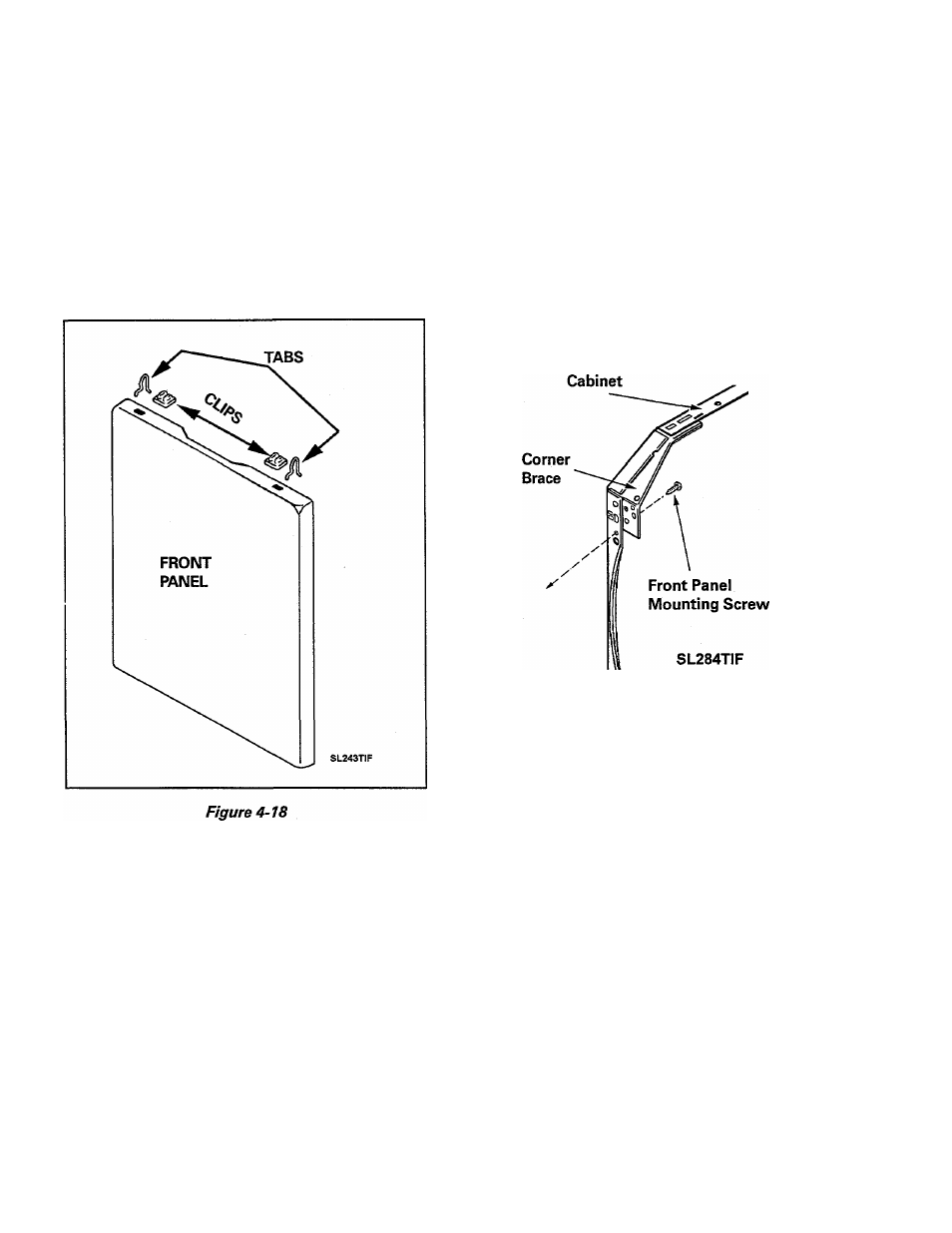

Remove the two 5/16" hex/cross head
screws securing the front panel to the up
per front corner braces of the cabinet.

(Figure 4-19 & 4-20)

Move top edge of front panel away from

cabinet while lifting. This will disengage

the bottom of front panel from base clips.

REPLACEMENT

1. Reverse above steps.

REMOVAL

1. Disconnect power to the unit.

2. Insert a thin-bladed tool between the front

panel and the top cover assembly, approxi
mately three (3) inches in from each cor
ner. While lifting up on the top cover as
sembly, press the blade against the wire
clips, one side at a time to disengage them.

Lift the top cover up to a stationary
position.

Figure 4-19

REAR ACCESS PANEL

Removal of the access panel, gains access

to the rear inside components of the washer.

Panel removal will allow access to:

• Stabilizer Assembly
• Rear and Side Suspension Springs
• Tub Braces

REMOVAL

1. Remove the four screws surrounding

the access panel (Figure 4-20).

16009485-01

Section 4. Cabinet Assembly Components

4.3
