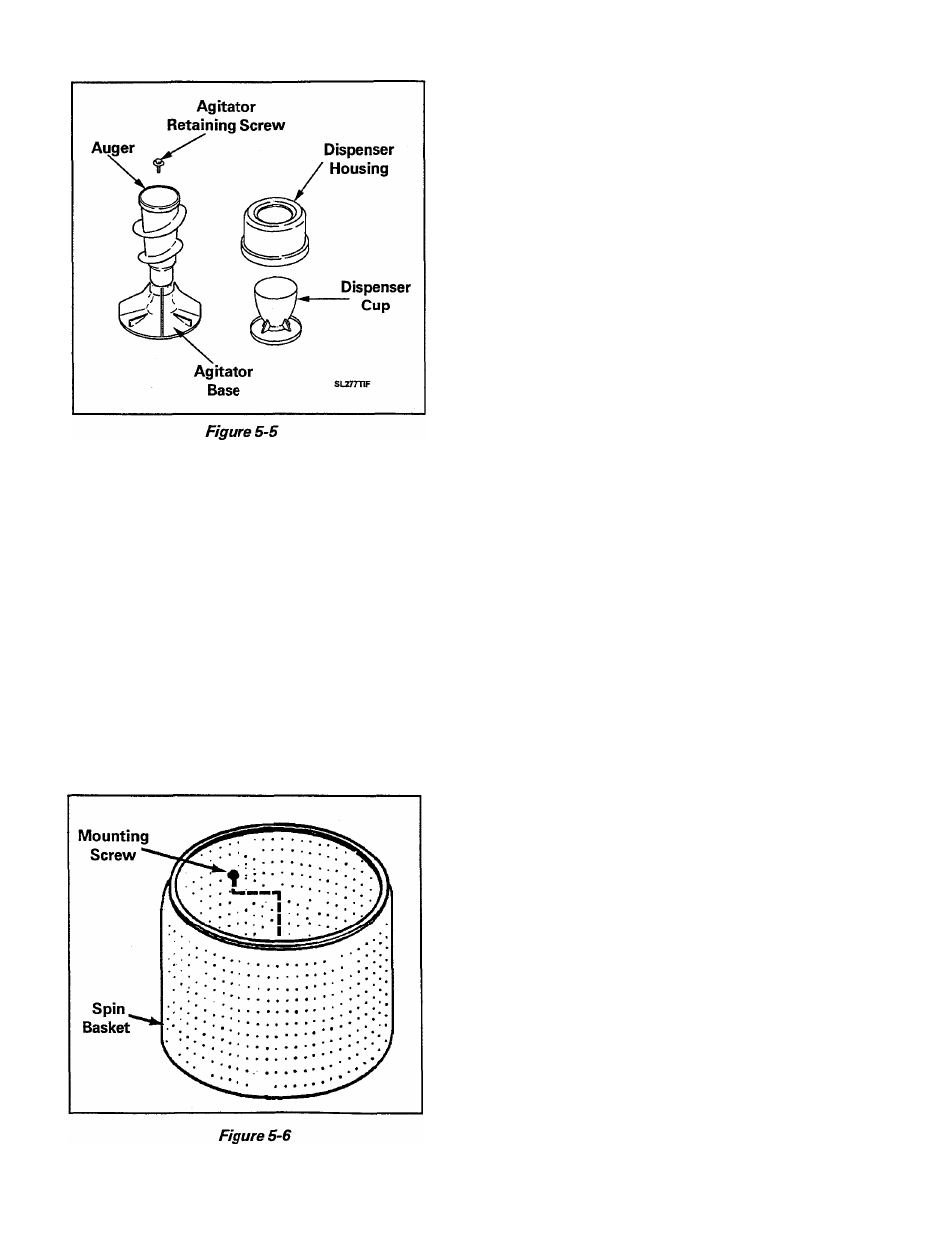

INNER TUB

The inner tub is perforated in a pattern de

signed to allow free flow of the wash and rinse
water for maximum efficiency in removing
sediment, soil deposits, and lint.

The inner tub is constructed entirely of

polypropylene and is secured to the basket
hub assembly with four (4) mounting screws.

A foam gasket is installed between the basket
and the basket hub assembly.

REMOVAL

1. Disconnect power to the unit.

2. Raise the top assembly and lean it back.

3. Remove the tub top.

4. Remove the agitator.

5. Remove the mounting screws.

6. Lift the inner tub up over the center post

and out of the cabinet.

NOTE: When reinstalling the inner tub, be

sure to:

•

Clean all connecting surfaces to ensure
proper sealing.

•

Position the basket on the basket hub

assembly.

• Align the assembly and tighten all screws

securely.

OUTER TUB ASSEMBLY

The outer tub assembly is molded entirely of

polypropylene.

The outer tub assembly is mounted to the bear

ing and seal housing and to the tub support.

A foam gasket and a rubber seal are installed

between the tub bottom and the bearing and
seal housing.
