WATER VALVE INJECTION
SYSTEM

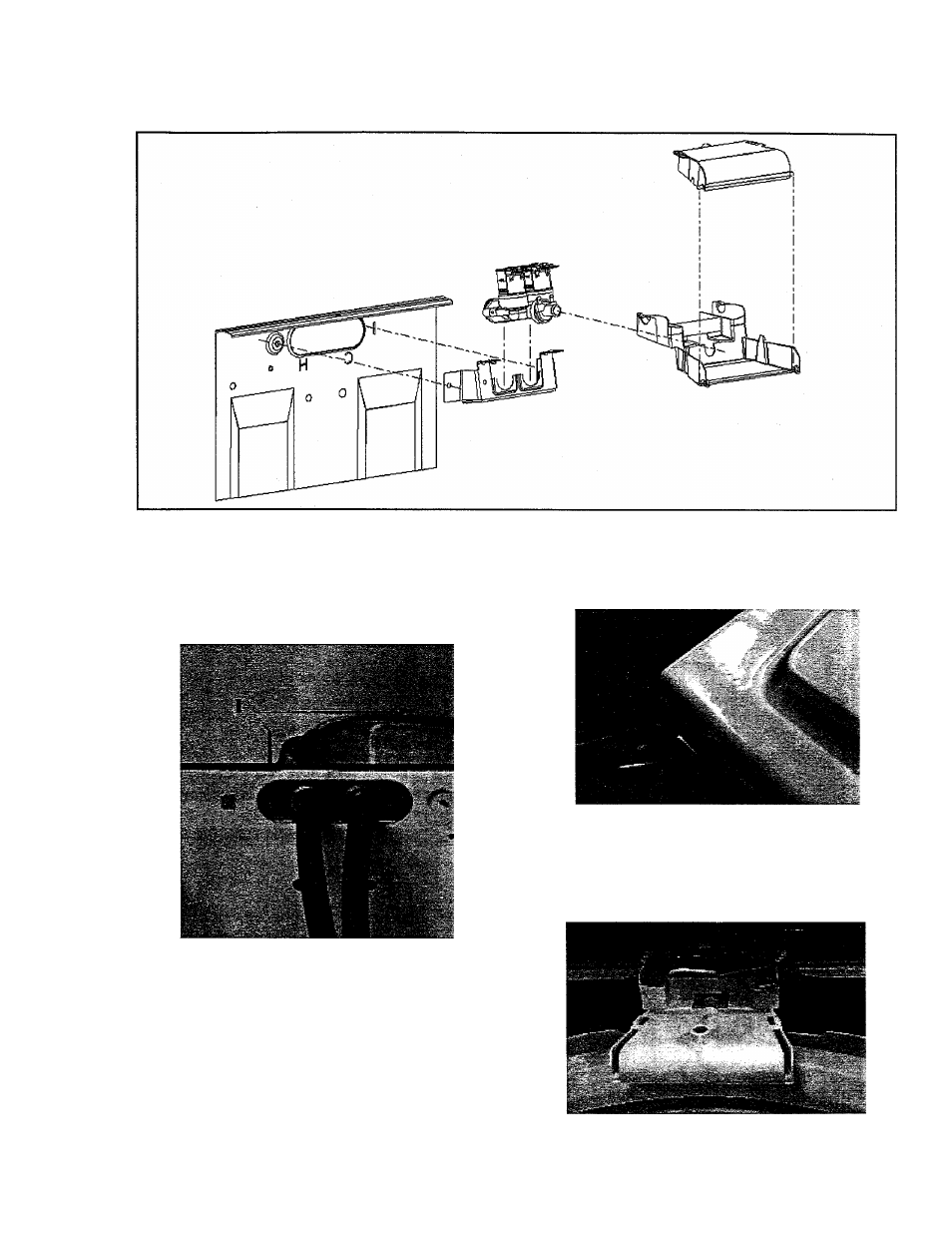

On some models the water valve is installed
at the top rear of the cabinet (Figure 5-1).
The following procedures are used to
remove the water valve.
Figure 5-1
To raise the top asssembly, insert a thin
bladed tool (such as a putty knife) between
the front panel and top assembly
approximately three inches in from each
corner. While lifting up on the top cover
assembly, press the blade against the wire
clips, one side at a time to disengage them.
Lift the top cover up to a stationary position.
(Figure 5-2)
Figure 5-2
With the top assembly up you will have
access to the water valve assembly.
(Figure 5-3)
Figure 5-3
16010280
(16009485-02) SECTION 5. Water - Related Components
