Slide the metal part of the bracket out of the
slots in the plastic part of the bracket.

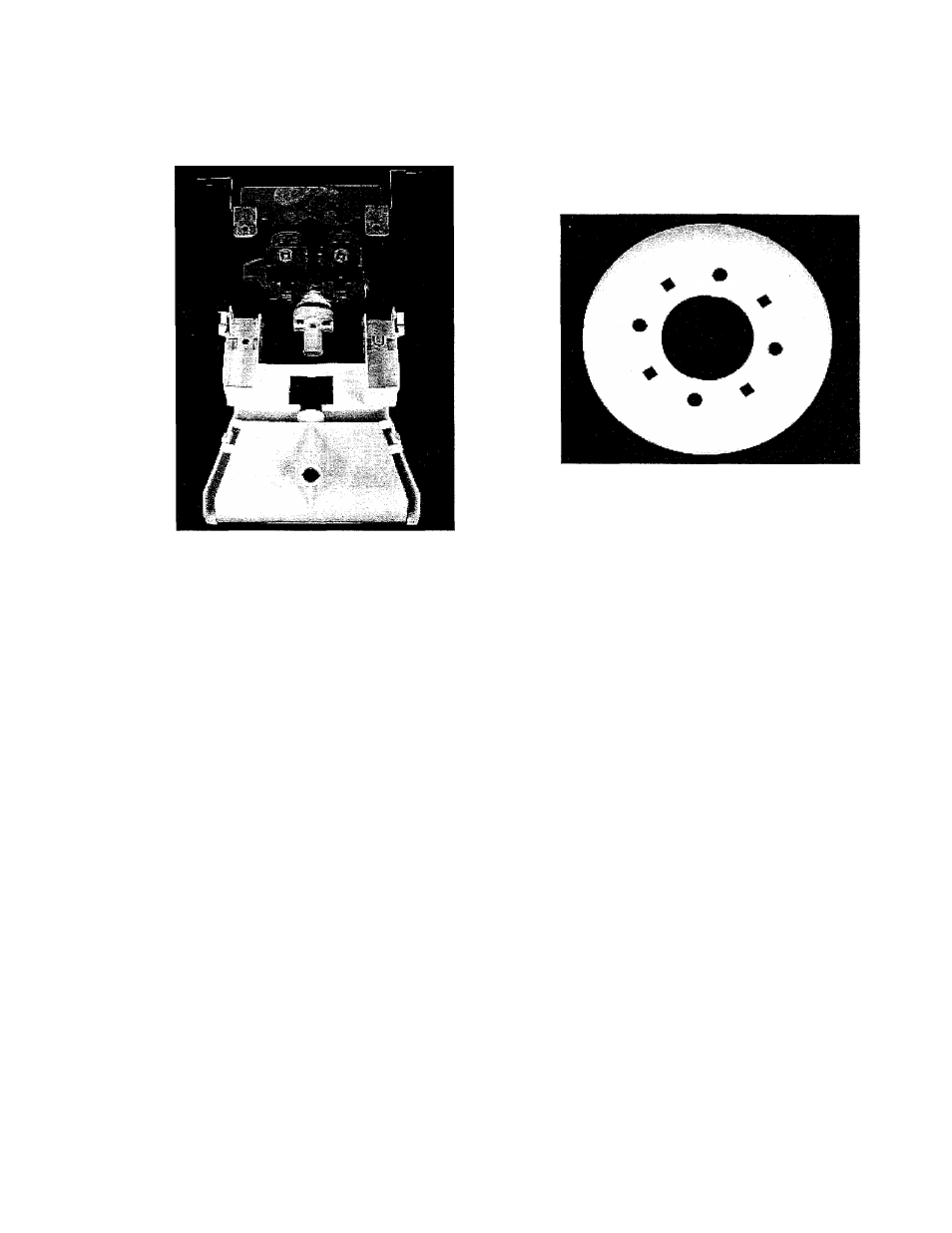

(Figure 5-10)

Figure 5-10

Installation of the water valve is the reverse

of the above procedure.

Stainless Steel
Spinner Assembly

The stainless steel spinner is composed of a

crimped stainless steel basket and a
polypropylene spinner top. There is a lower
insulating ring attached to the bottom of the
spinner and an upper insulating ring that fits
over the inner spinner bottom. These

insulating rings provide stability to the lower

spinner area. When replacing a spinner it is

recommended that the insulating rings be
replaced with the spinner assembly.

Removal:

1. Disconnect the power to the unit.

2. Raise the top assembly and lean it back.

3. Remove the tub top.

4. Remove the agitator

5. Remove the mounting screws.

6. Remove the upper insulating ring.

(Figure 5-11)

Figure 5-11

Lift the spinner up over the center post

and out of the cabinet

Depress the six (6) tabs (Figure 5-12) that
hold the spinner top to the spinner and
remove the spinner top.

Depress the four (4) tabs that hold the

lower insulating ring to the bottom of the
spinner and remove. (Figure 5-12) These

four (4) tabs are not necessary for correct

machine operation. These tabs are used

to assist in the manufacturing process. If

one or more break during removal, the

part is still functional. (See Figures 5-13

thru 5-14)
