92
PFC-4410RC • 5403550 • REV Q • 11/12

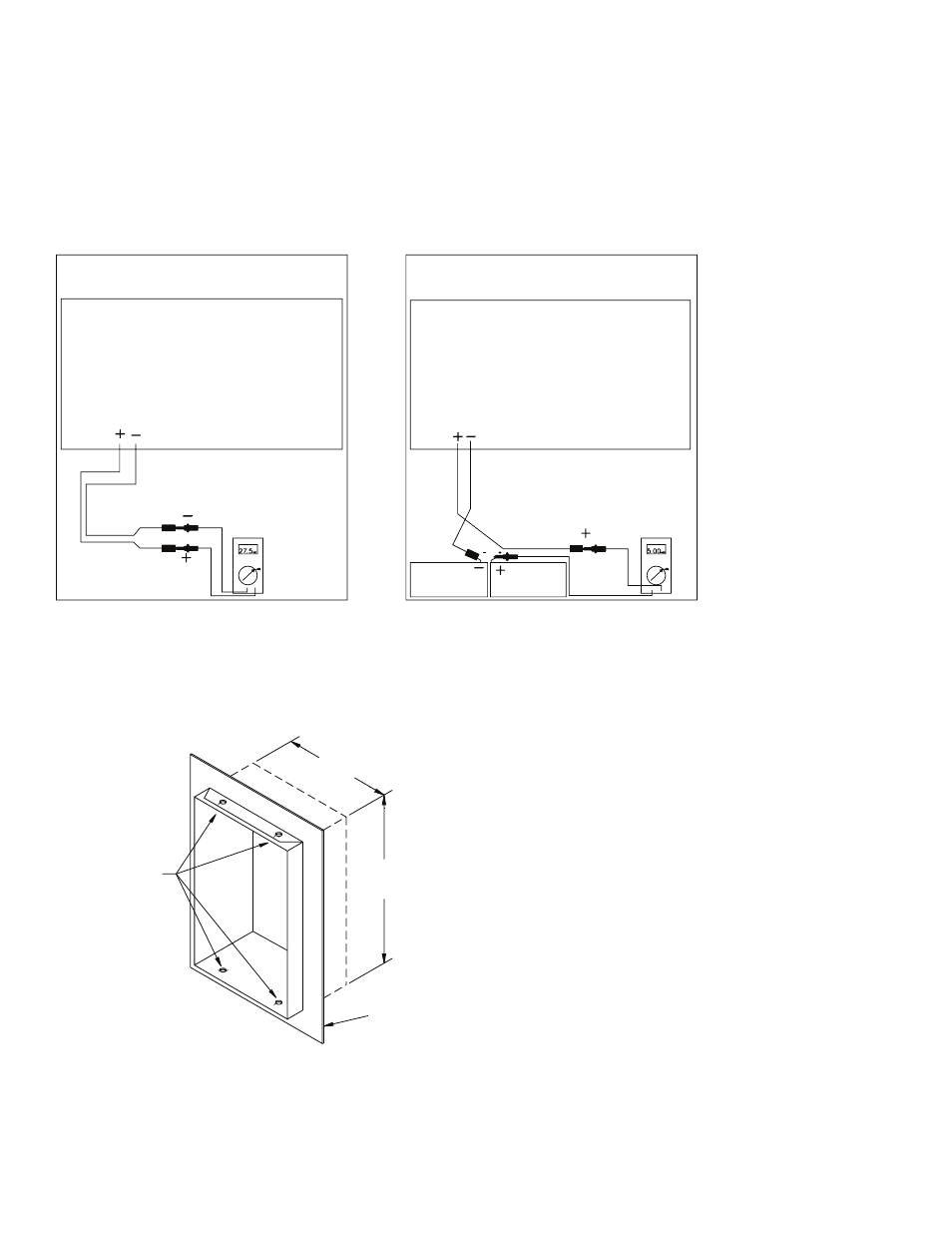

Connection Procedure for Battery Charging Current and Voltage
1) To measure the battery charging voltage:
Place a voltmeter across the battery terminals as shown in FIG. 4
2) To measure the battery charging current:
Place a current meter in series with the battery terminals as shown in FIG. 5.
Fig. 4 Fig. 5
Installation Of Bezel For Semi-flush Installations
DWG# 3527-9
VOLT
METER
CURRENT
METER
PANEL PANEL
(4) #6-32 X 1/4”
MACHINE SCREWS
AND NUTS
OPTIONAL TRIM
18 1/2”
14 1/4”
DWG# 3503-8
