Page 24
24
PFC-4410RC • 5403550 • REV Q • 11/12
+
OUTPUT
1
BATT
2
OUTPUT
ASSY
DIODE
EOL
OUTPUT
3
4
OUTPUT
RE
D
BLAC
K
NO
COM
NC
NC
NO
NO
NO
COM
COM
COM
-
-
+
+
+
-
+
-
+
-
LIMITED AND
NON-POWER
SUPERVISED
S
BLAC
K
RED
5.1K
EOLR
BLAC
K
RE
D
EOLR
5.1K
BLAC
K
RE
D
RELEASE
ALARM
GENERAL
CIRCUIT
BELL
ZONE 4
MANUAL
STATION
WATER
FLOW
ZONE 3
SWITCH
ZONE 2
ZONE 1
HEAT OR
DETECTORS
SMOKE
SUP 2
PS10
SUP 1/ABORT
EOLR
5.1K
-
+
-
+
ZONE 1
-
+
+
-
ZONE 2
DRY CONTACTS RATED AT 3A, 30VDC
TROUBLE
SUPV
N
120
HOT - BLACK
NEUTRAL - WHITE
EARTH GROUND - GREEN
TO CIRCUIT BREAKER PANEL
120VAC/60Hz
165 VA MAX.
RELAY CONTACTS
ALARM
-
EOLR
5.1K
EOLR
5.1K
5.1K
EOLR
-
+
-
+
-
-
+
-
+
EOLR
5.1K
220VAC/50Hz
185 VA MAX.
SUPV.
BELL
EOLR
5.1K
RE
D
BLAC
K
WATER
FLOW
BELL
AUX.
+
-
S
RS-485
+
-
24VNR DC
+
-
POWER
120 OHM
EOLR
5.1K
HEAT OR
SMOKE
DETECTORS
24VR DC
WTRFL
PS10A
OBSERVE POLARITY
WHEN CONNECTING
SMOKE DETECTORS
EACH CA2Z WILL CONVERT
2 CLASS B ZONES INTO 2
CLASS A ZONES
OPTIONAL CLASS A
CONNECTIONS EOLR IS
NOT USED FOR CLASS A
OPTIONAL
CA2Z CLASS
A MODULE
PANEL INPUTS (INITIATING ZONES)
CONNECT TO NORMALLY OPEN DEVICES
OR COMPATIBLE 2 WIRE SMOKE
DETECTORS.
MAXIMUM LINE RESISTANCE: 100 OHMS
(EXCEPT WITH LINEAR HEAT DETECTION)
OPTIONAL CA2Z MOUNTING LOCATION
PROGRAM
SWITCH
BATTERY CABLE
OBSERVE POLARITY
RED +
BLACK -
TROUBLE CONDITION
PANEL PROBLEM
LOSS OF AC
LOSS OF BATTERY
WIRING PROBLEM
ALARM CONDITION
SMOKE DET.
HEAT DET.
PULL STATION
WATERFLOW
SUPERVISORY
LOW AIR
VALVE TAMPER
WATERFLOW
DWG# 3550-1
+
POS
-
NEG
+
POS
-
NEG
12V BATT.
12V BATT.
ZONE 1
ZONE 2
ZONE 3
ZONE 4
OUTPUT 1
OUTPUT 2
OUTPUT 3
OUTPUT 4
PROGRAM
MODE
RUN
MODE
AC POWER
POWER TBL
SYSTEM TBL
SUP TBL
GROUND
FAULT
SUP 1/ABORT
SUPERVISORY 2
COMMON ALARM
ALARM SILENCE
STEADY: DISCHARGING
FLASHING: PRE-
DISCHARGE
RUN
PROGRAM
SET
SELECT
FUNCTION
SCROLL-DOWN
BUZZER SILENCE
SIGNAL SILENCE
SYSTEM RESET
SCROLL-UP
BUZZER SILENCE
VIEWING ANGLE
RED OUTPUT LED STEADY: ABORT
AC IN CONNECTOR
NON-POWER
LIMITED AND
SUPERVISED
+
See page 89 or label inside panel door for smoke detector
compatibility data.
See page 85 for battery information.

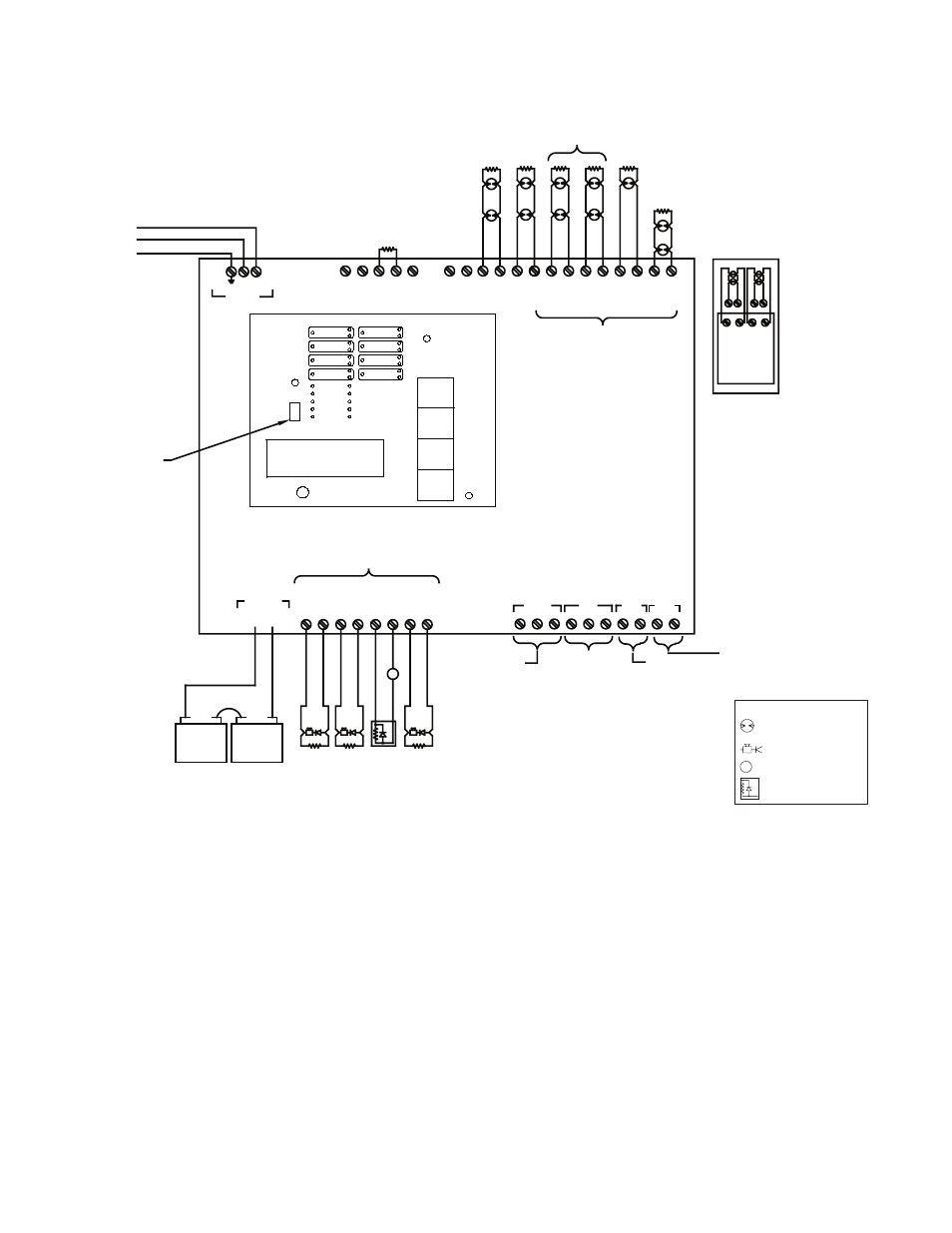

Wiring Diagram Program #2
Single Hazard, 2 Alarm Zones (Cross-Zoned), 1 Manual
Station Zone, 1 Waterflow Zone, and 2 Supervisory Zones
}
LAMP TEST
10. Maximum resistance on outputs is 10 ohms. Maximum
resistance on outputs programmed as releasing, is 1
divided by current requirements of solenoid.
11. Notification outputs do not provide synchronization.
If synchronization is needed, refer to the NAC table on
page 90. Synchronization is only on one circuit and not
betweeen circuits. The maximum cannot exceed 1 amp or
whatever the maximum that the sync' module can support,
whichever is lower.
NOTES:
1. Connect only UL Listed 24VDC devices to indicating
circuits.
2. Connect EOL Diode assembly IN SERIES with solenoid
on release circuit
3. Leave EOLR (provided) on all unused circuits.
4 Polarity is shown on indicating circuits in an activated
(off-normal) condition.
5. Polarity reverses when output is activated.
6. Maximum current per output is 1 Amp. Maximum voltage
is 33VDC.
7. Outputs identified as Release are Special Application. All
other outputs are Regulated 24 VDC, Rated 1 Amp each,
2.5 Amp total for all 4 circuits.
8. All initiating and NAC/Release circuits are supervised and
power limited. See note 3 on page 92 for power limited
wire routing instructions. All frequencies are continuous.
9. Refer to pgs. 16, 83-85 for installation, test and
maintenance information.
S
Initiating device
Notification appliance
Solenoid
End-of-Line diode assy
Legend
