EVCO EVCLC33DJ2 User Manual
Page 9
EVCO S.p.A.
Vcolor 338 L | Installer manual ver. 2.0 | Code 144VC338LE204
page 9 of 66
Control module dimensions and installation

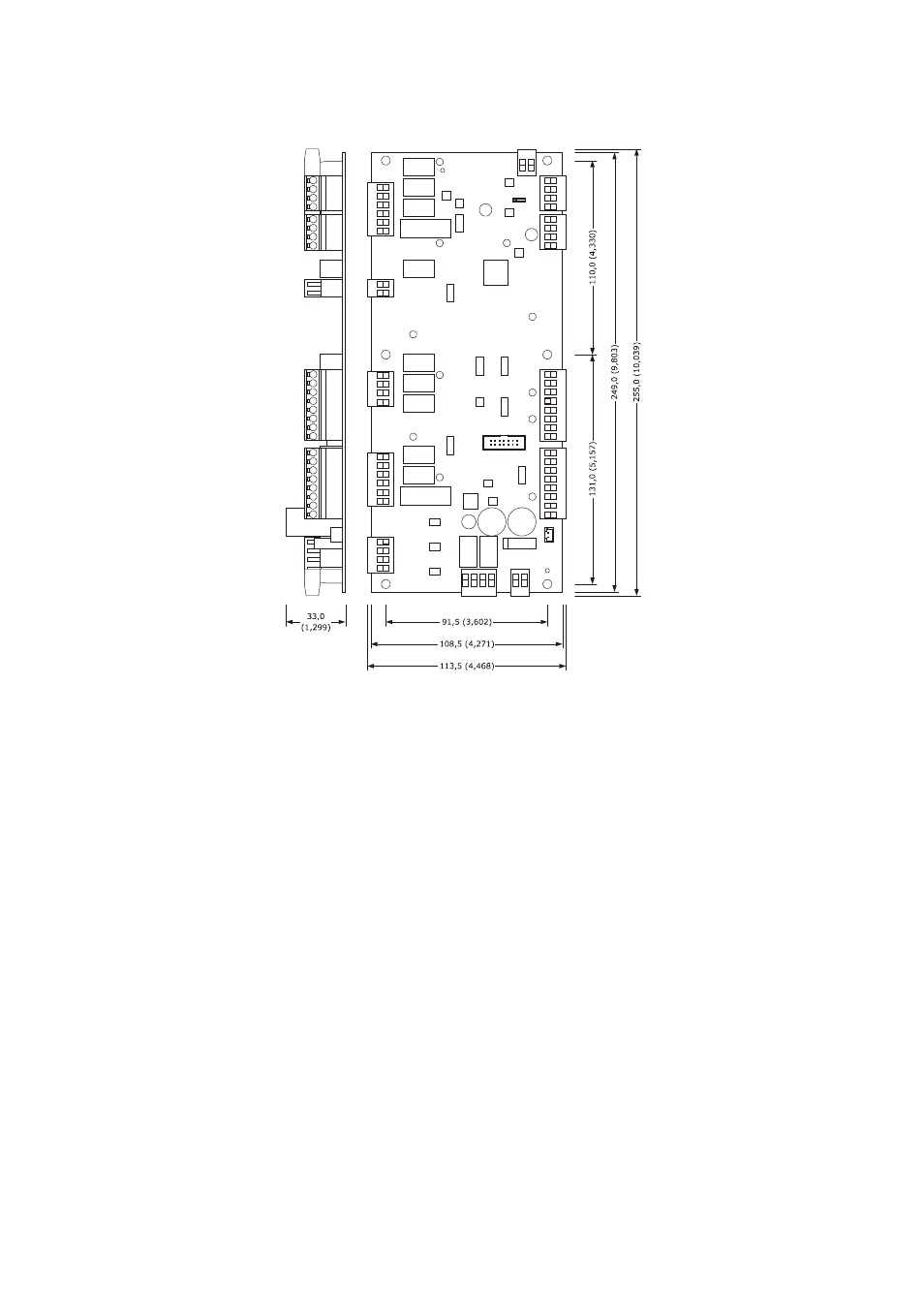

The following drawing illustrates the device's control module dimensions; these are expressed in mm (in).
The control module is to be installed on a flat surface, with spacers.
