EVCO S.p.A.
Vcolor 338 L | Installer manual ver. 2.0 | Code 144VC338LE204
page 8 of 66
2
DIMENSIONS AND INSTALLATION
2.1
User interface dimensions

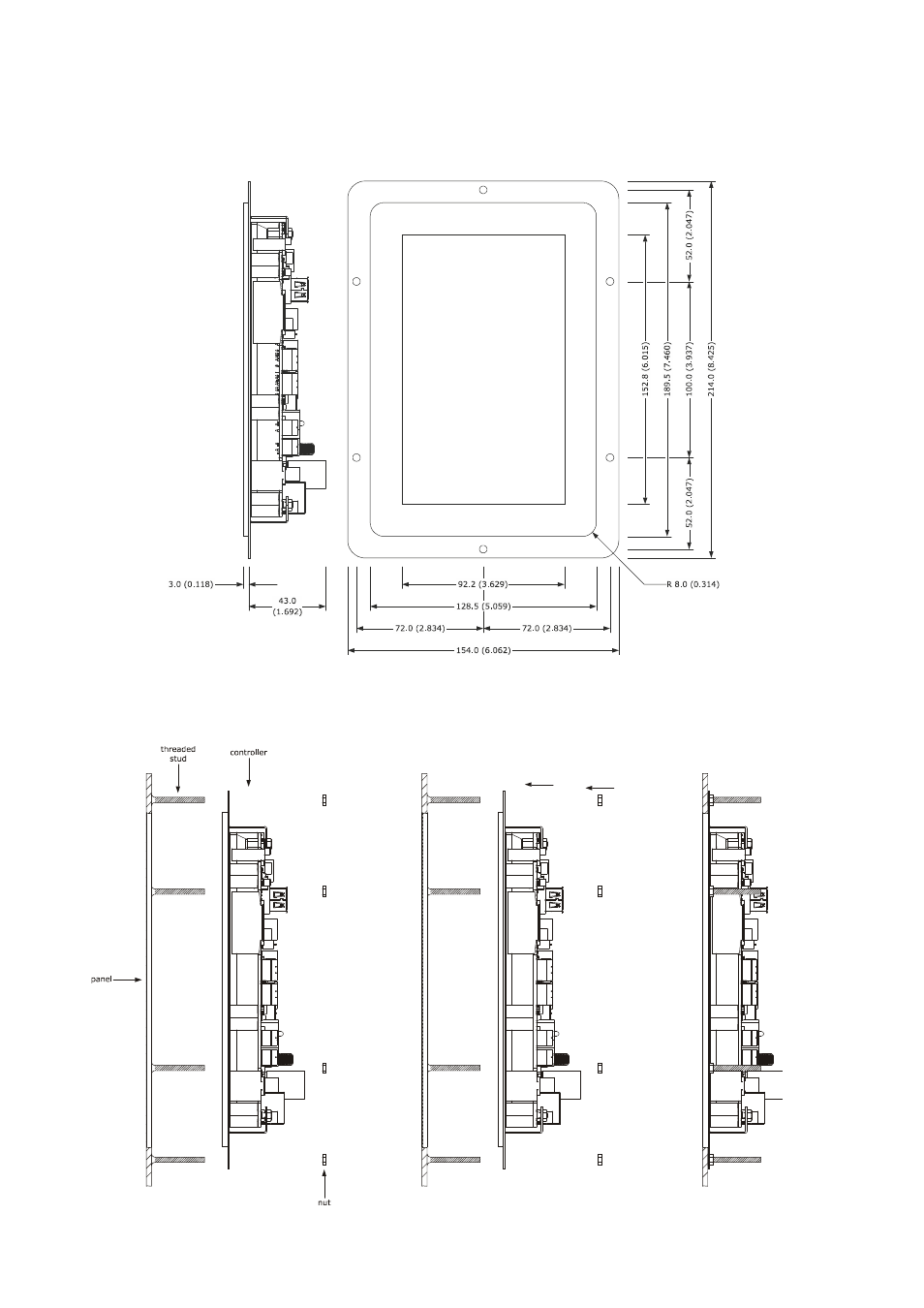

The following drawing illustrates the device's user interface dimensions; these are expressed in mm (in).
2.2
Installation of user interface
The following drawing illustrates the installation of the device user interface.
This is to be installed on the back of the panel, with studs and allows flush mounting.
