Vcolor 338 L | Installer manual ver. 2.0 | Code 144VC338LE204
page 26 of 66
6.10
User
interface
variant
for

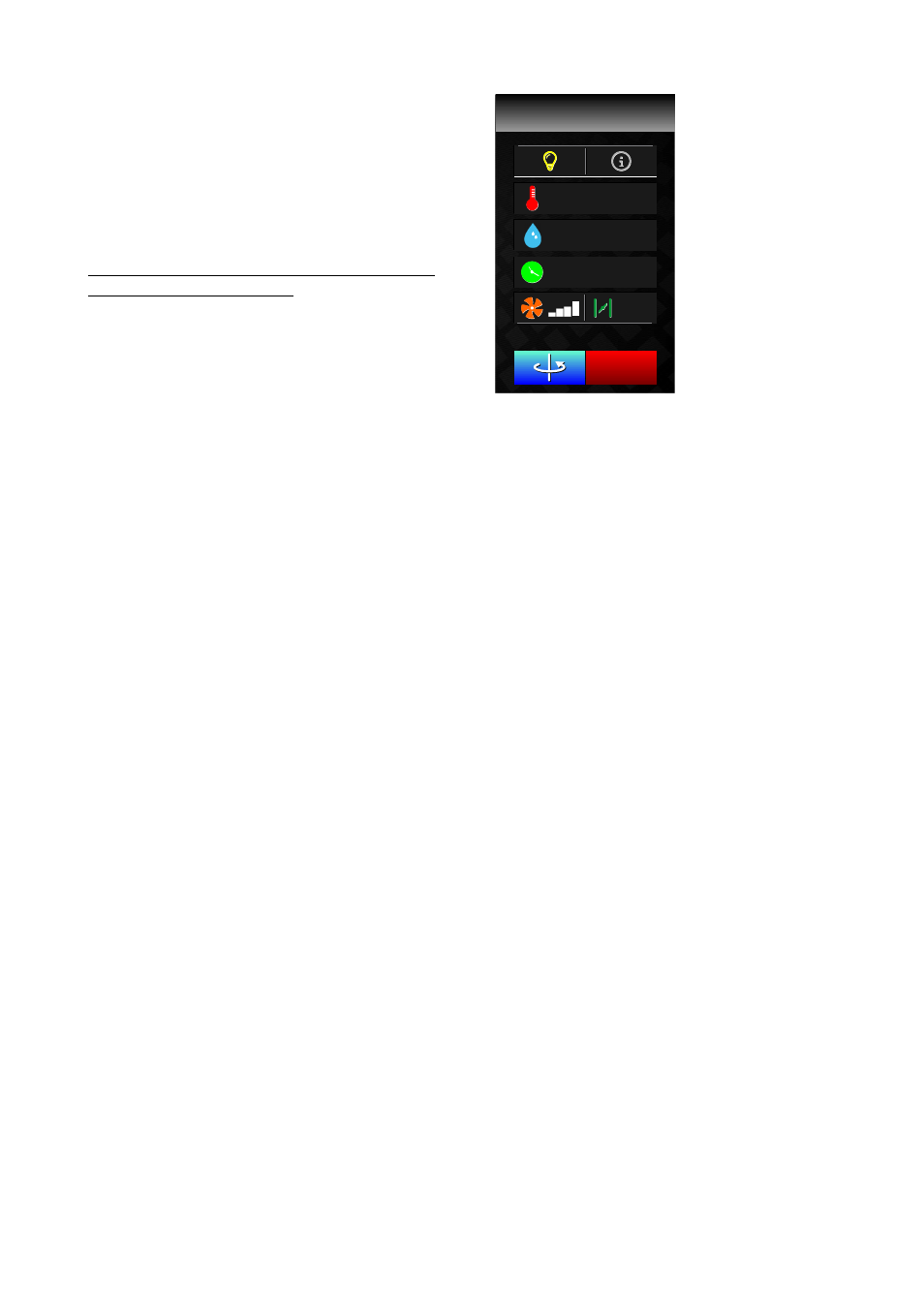

ROTOR ovens management
The ROTOR management controller differs from a COMBI one
due to the additional presence of:
-
rack rotation motor control relay
-
rack limit switch digital input
that determines the
STOP position
Management of the motor rotation control relay output
and rack limit switch digital input
The motor rotation output is activated automatically at the
start of the oven preheating phase .
It will be possible to stop or restart the rotation at any
moment, with the relevant motor rotation/stop key in the user
interface; the motor will stop at the next forthcoming
activation of the limit switch input, which indicates the position
allowing the rack to be extracted after opening the door.
If the limit switch input is fault, incorrectly wired or not
installed (e.g., for rotor ovens with non removable rack), the
rack will stop after a maximum time determined by parameter
k2.
If the door is opened while the rack is rotating, the output
stops immediately (without waiting the limit switch activation
and the expiration of the maximum time period), to avoid any
hazard for the operator.
With the door closed, parameter k1 will establish whether the
rack starts to rotate again automatically or remains still in the
position it was before the door opening.
