Connection of audio components
VR-2090/VB-20aQ/KBF-Vaeeia/mf-V777^D (gn/K]
The connected components shown here are given as ex­
amples because the available models vary depending on
marketing areas.

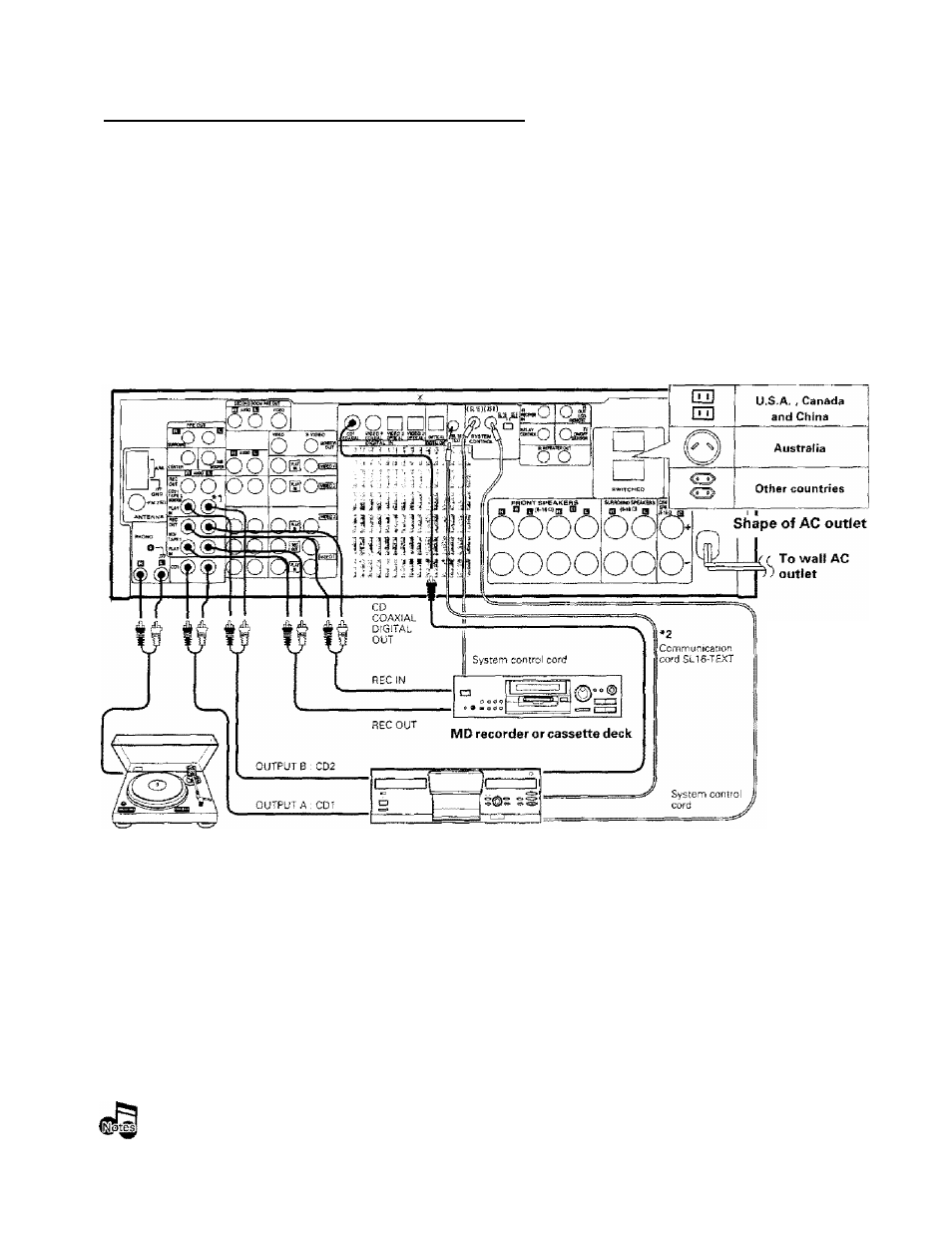

Make connections as shown below.
When connecting the related system components, refer
also to the instruction manuals of the related compo­
nents.
A Do not plug in the power lead until all connections are
completed.
Also connect the system control cords when the KENWOOD
Audio Component System is connected.
Mat function of microcomputer
If operation is not possible or erroneous display appears even
though all connections have been made properly, reset the
microcomputer referring to "In case of difficulty".
*1 To the CD2/TAPE2 MONITOR ¡acks, connect a second CD
player, second cassette deck or a graphic equalizer.
Do not connect system control cord to the unit (expect for
graphic equalizer) connected to the CD2/TAPE2 MONITOR
¡acks.
CAUnOISKForU.K.)
Whe n usi ng the AC out­
lets equipped with this
unit, be sura to consuit
your dealer for the cor­
resportding plug.
Record player Multi-room capability or other CD player
*2 Note on the SL-16 TEXT fack (provided except for some destination areas): When using a KENWOOD CD player equipped with the SL-
16 TEXT jack, connect it to this unit using the communication cord provided with the CD player. This makes it possible to display the
disc and track titles on the remote control unit (provided with this unit).
Do not forget to set the SL-16 / XS
-8 switches of the CO player and this unit to SL-16.
Caution regarding placement (Except for US. A, and Canada}
To maintain proper ventilation, be sure to leave a space around the (jnit (from the largest outer dimensions including projections) equal to, or greater
than. Left and right panels : 10 cm. Rear panel: 10 cm, Top pane!; SO cm
Ventilation fan
The ventilation fan runs during high-power reproduction. To allowfor proper ventilation, maintains certain distance (more than about 10 cm .4 inches)
between the wall and the rear of the component.
1. Connect all cord.s firmly. Loose connections may prevent proper sound transmission or produce noise.
2. Be sure to remove the power cord from the AC outlet before plugging or unplugging any connection cords. Plugging/unplugging connection
cords without disconnecting the power cord can cause malfunctiorrs and may damage the unit.
3. Do not connect power cords from components whose power consumption is larger than what is indicated on the AC outlet at the rear of
this unit.
