Vn-20B0/VR-2080/KRF-VB8Q1D/KHF-V7771D (En/Ki
FRONT SPEAKERS B connections (d !:
These connections allow you to connect the speakers in Room B directly
to the receiver without using an additional power amplifier. The sourtd
from the mam system (Room A) automaticailv switches to stereo when
SPEAKERS B are turned on.
• If the Room B operation is not set, the speakers in another room can
be used as SPEAKERS B,
13

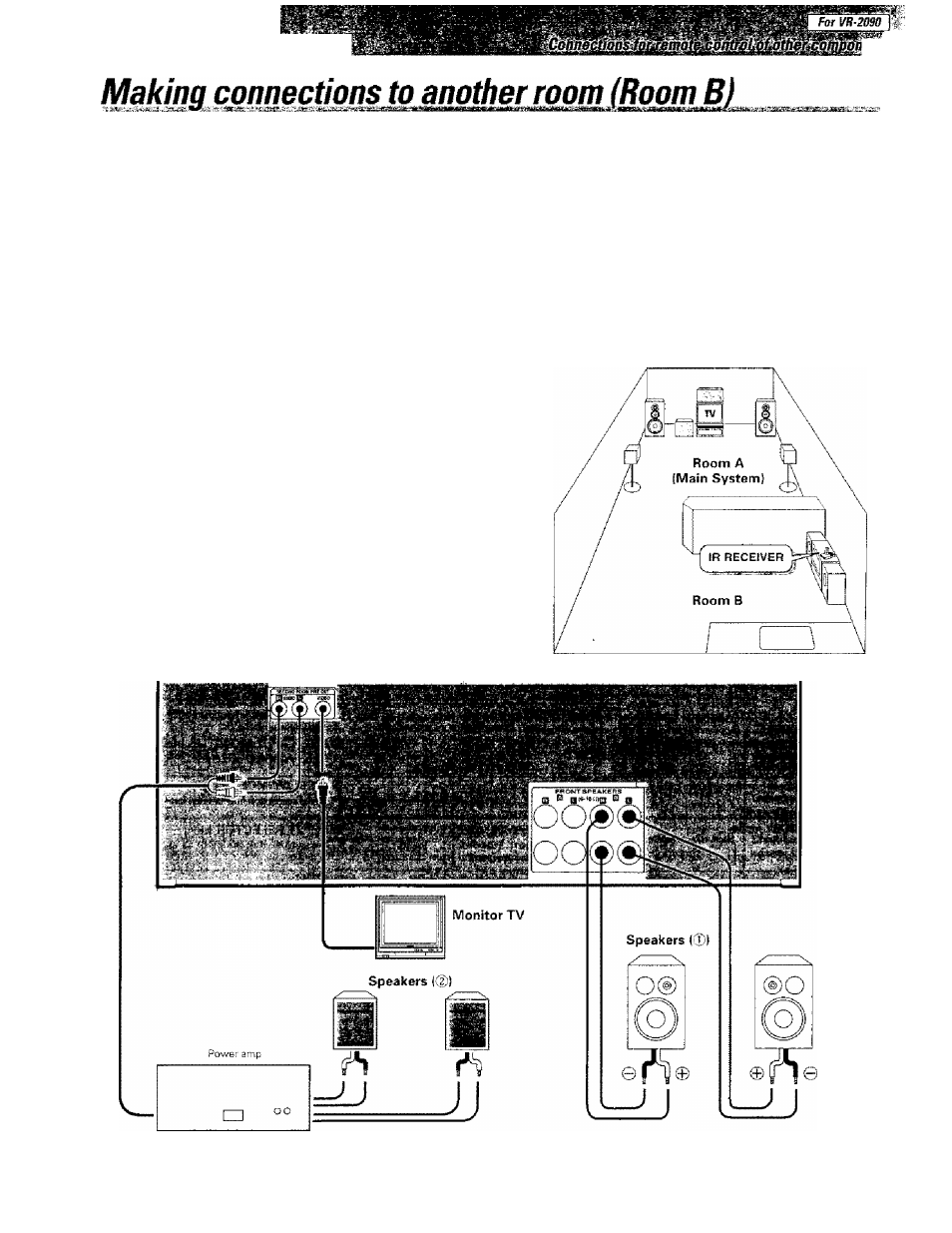

The following connections allow you to connect your main system to a monitor TV and speaker system located in another area
(Room B). The monitor TV can be connected directly to the SECOND ROOM pf{E OUT VIDEO jack. To connect the speakers, use
either of the connections described below.
To select the input and adjust the volume (etc.l for your other area {Room Bi, set the remote control to the Room S operation
mode.
SECOND ROOM PRE OUT connections (@h
Use these corsnecfions if you want to errjoy surround sound from your
main system fRoom A) while outputting another source to Room B.
Connecting a speaker cord directly to a SECOND ROOM PRE OUT jack
Will
not produce any sound from the speaker. Connect ths SECOND
ROOM PRE OUT jacks to powered speakers or power amplifiers con
nected to speakers.
§
(a
• To view the monitor TV in
"Room B",
connect ths composite video
signal (yellow jacks! from the video source component to the
receiver.
The SECOND ROOM PREOUT terminal
is only available for VR-2090 sold in the
U.S.A. and Canada.
