10. Lower the steering column assembly onto the frame
of the mower.
NOTE: Slide the steering shaft coupler over the
input shaft of the steering gearbox while low-
ering the steering column in place.
See Figure 6.109.
11. Install the lower coupler bolt.
12. Tighten both of the coupler bolts with a pair of 1/2”
wrenches.
13. Install the six screws that hold the steering column
to the frame. See Figure 6.110.
14. Install the floor pan by following the procedures
described in Chapter 4: Body.
15. Install the steering column cover.
16. Align the holes in the axle castings with the holes in
the steering gears.
17. Install a pair of 5/16” pins in the holes.
See Figure 6.111.

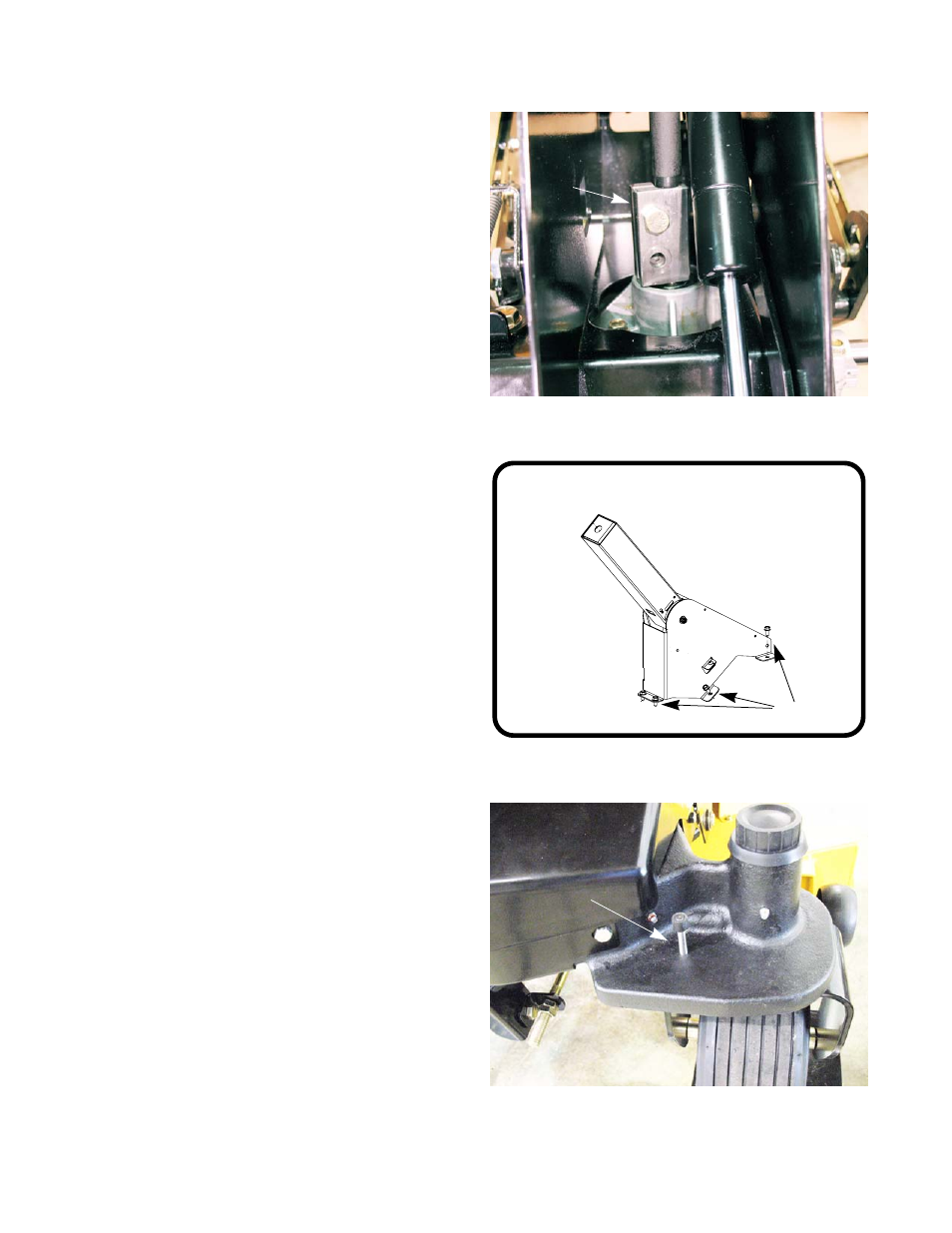

Figure 6.109
Steering column
coupler
Figure 6.110
Screws
Figure 6.111
Axle casting
