Cub Cadet Z-Force S Series User Manual
Page 72
Z-Force-S
66
24.
Install the snap ring on the input shaft.
See Figure 6.65.
25.
Install the return to neutral bracket.
26.
If the screw and spacer was removed from the
speed cam assembly, re-install it.
27.
Center the rack and thread a 1/4”-20x2” bolt into the
hole in the gear box to lock the gear box in neutral.
28.
Install the steering gear box in the mower by follow-
ing the procedures described in the steering gear-
box installation section of this chapter.
29.
Test drive the riding mower in a safe area before
returning to service.

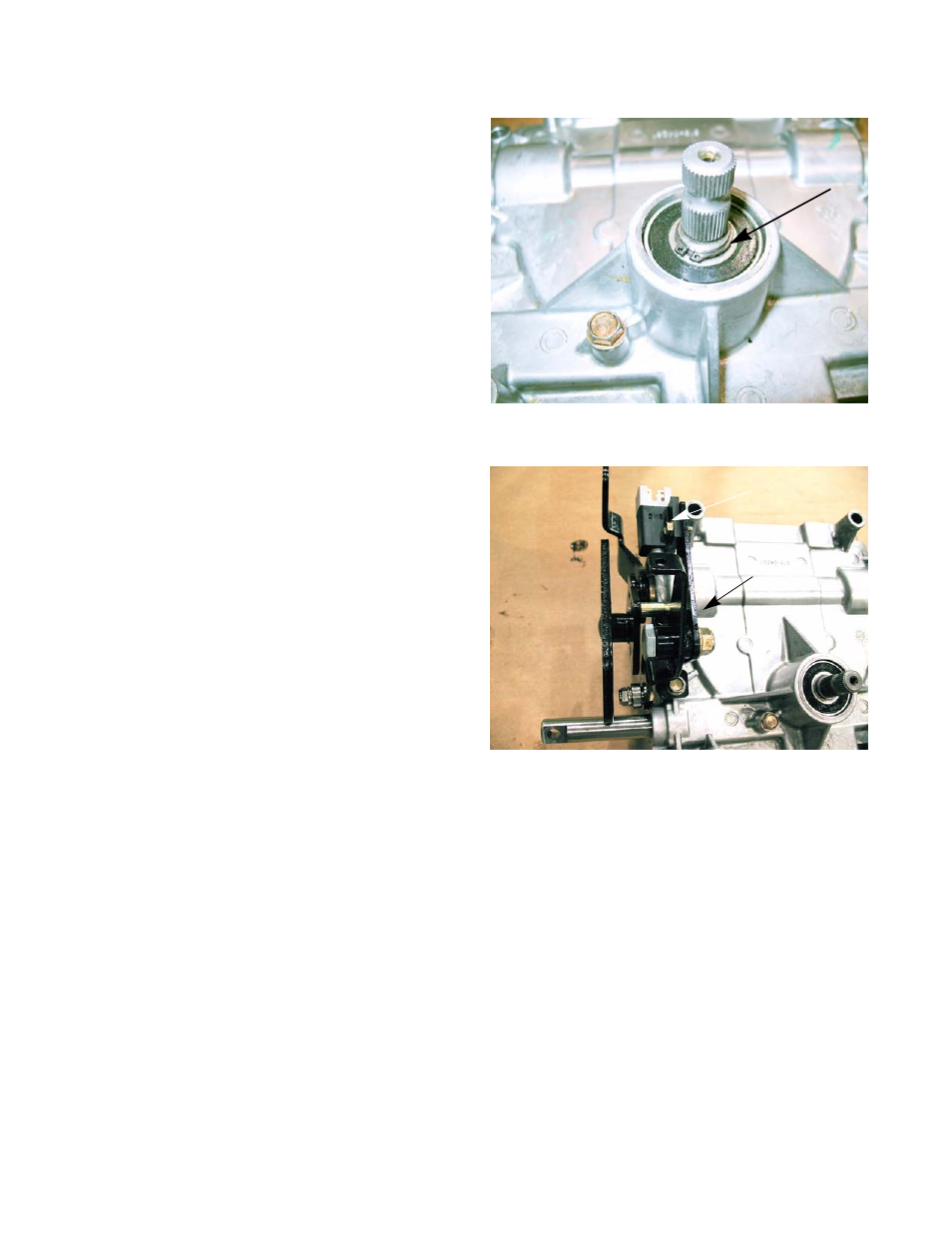

Figure 6.65
Snap ring
Figure 6.66
Reverse switch
Return to neutral
bracket
