Electrical System
95
Starter solenoid
The starter solenoid is mounted to the rear frame cross
member, under the seat. See Figure 7.10.
• When the proper safety conditions are met (brake
applied, PTO OFF), the orange wire with white
trace energizes the windings that magnetize an
iron core, pulling the contacts closed between the
two heavy posts, connecting battery power to the
starter motor.
PTO Relay
The PTO relay is mounted on the rear frame cross mem-
ber, under the seat. See Figure 7.10.
The PTO relay disengages the PTO clutch when it is
energized and latches on until the PTO switch is turned-off.
The list below details the function of the PTO relay.
3 Green wire COM (Common) terminal.
Ground for PTO clutch (not energized) or relay latch
(energized). Hard-wired to ground
5 White/black trace Normally Open (N.O.)
terminal
Connects to COM terminal when the relay is energized.
Power from PTO switch B-N.O. when PTO is ON.
2 Red wire Power for windings
Hot when the key switch is in any position other than OFF.
4 White wire Normally Closed (N.C.)
terminal
Connects PTO clutch to its ground path (through 30)
when the relay is not energized.
1 Yellow/black trace Ground path for windings
Provides ground path, energizing the relay: when seat is
empty and the PTO is turned ON or when the mower is put
in Reverse and the PTO is turned ON, unless the RMC is
armed and activated.

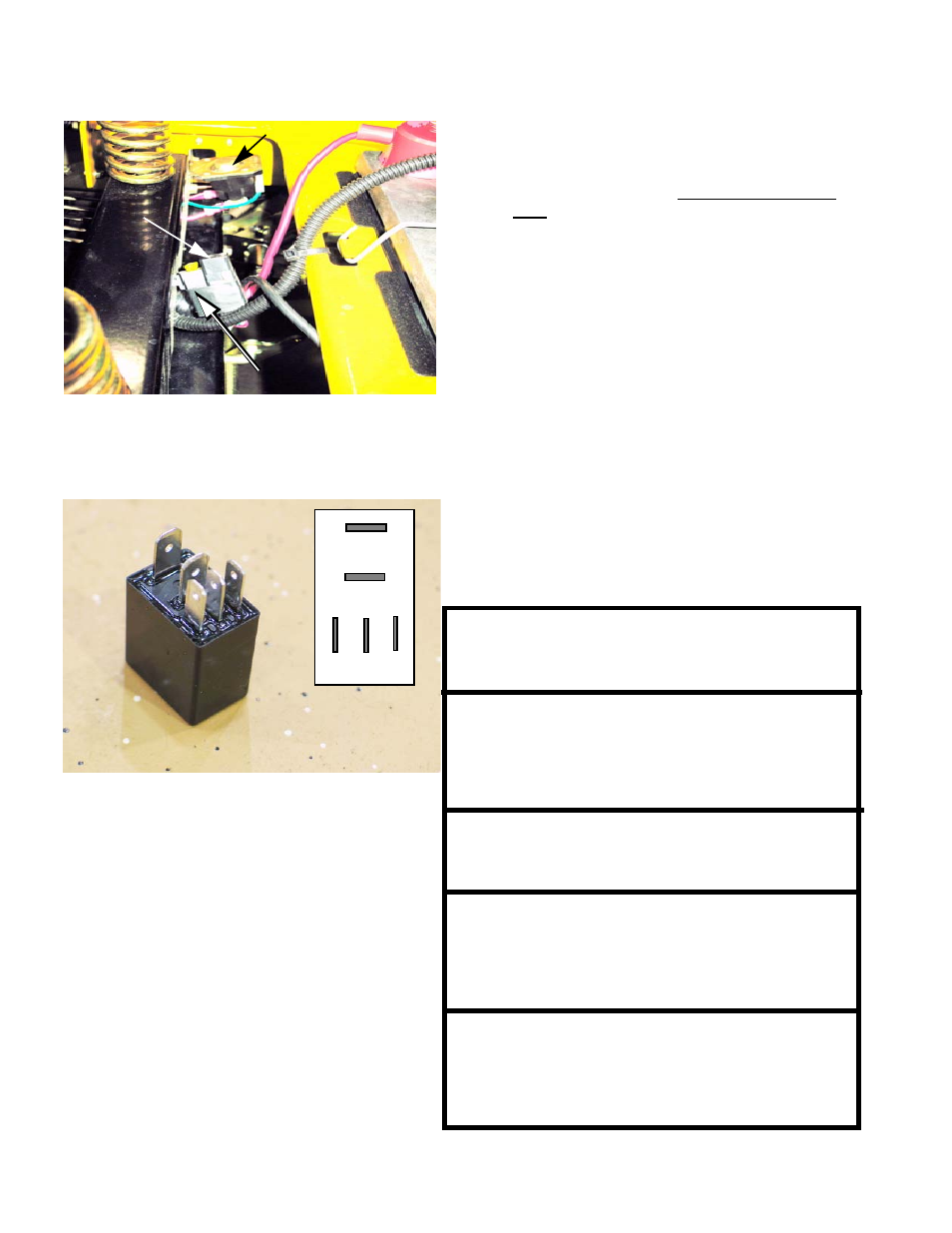

Figure 7.10
Fuse
PTO
Relay
Starter Solenoid
Figure 7.11
2 4 1
3
5
Relay
Relay terminal
pattern
