Body
23
Right control console
To remove/replace the right side control console:
1. Disconnect the choke and throttle cables from the
engine. See Figure 4.15.
NOTE: Paint marking and color coding the cables will
make reassembly easier.
NOTE: On mowers equipped with the 60” decks, remove
the deck by following the procedures described in
Chapter 8: Decks and Lift Shafts.
2. Remove the two screws from the underside of the
right control panel using a T-30 torx driver.
See Figure 4.16.
3. Remove the two screws that hold the right control
panel to the seat box assembly using a T-30 torx
driver. See Figure 4.17.
4. Remove the two screws that hold the control panel to
the control consoles using a T-30 torx driver.
5. Lift the control panel off of the control console.
NOTE: If the control panel is being replaced, remove the
throttle and choke cables from it and install them
on the new control panel.

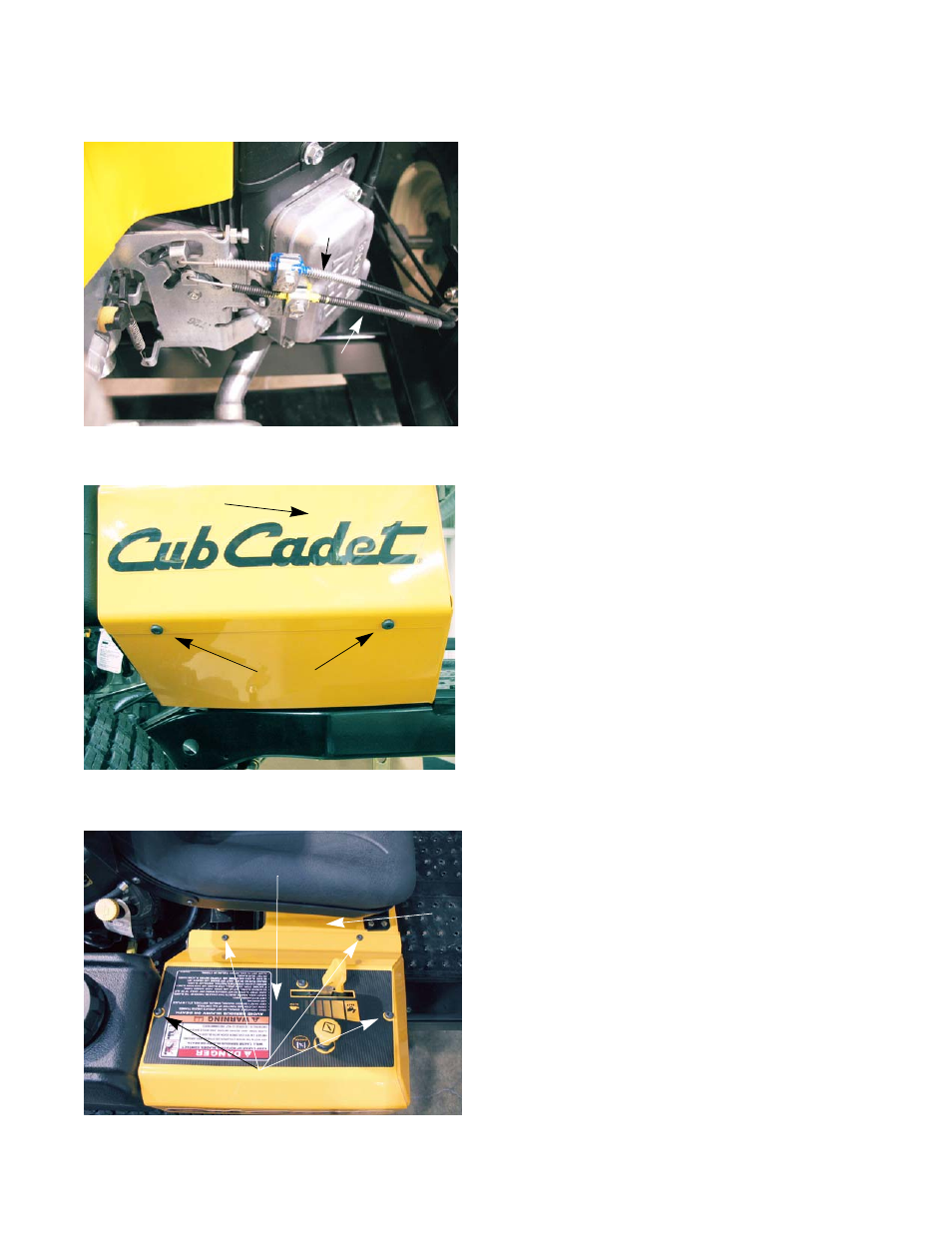

Figure 4.15
Choke cable
Throttle cable
Figure 4.16
Screws
right control panel
Figure 4.17
Right control panel
Seat
box
assembly
Screws
