Electrical System
99
Run Circuit
With the key switch in the RUN position, the A1 terminal
sends power to:
• the afterfire solenoid
• the windings of the PTO relay
• the PTO switch C-COM terminal
• the RMC module “A1 pwr” terminal
• the headlight switch, where used
• the system monitor
See Figure 7.16.
This is identical to what happens with the key in the
START position, except that the circuit that actually spins
the starter motor is not energized.
2-#
3EAT
237
'RND
!
!
%04/
h/Nv
' !
, 3 !
- "
.H\6ZLWFK³5HYHUVH&DXWLRQ0RGH´
6WDUWHU6ROHQRLG
%DWWHU\
1(* 326
&USE
'RND
'ROUND
'ROUND
'ROUND
³$UPHGDQG$FWLYDWHG´
3726ZLWFK
&20 12 1&
6\VWHP
0RQLWRU
+HDGOLJKW6ZLWFK
3725HOD\
$W5HVW
$IWHUILUH
6ROHQRLG
*URXQG
!
"
#

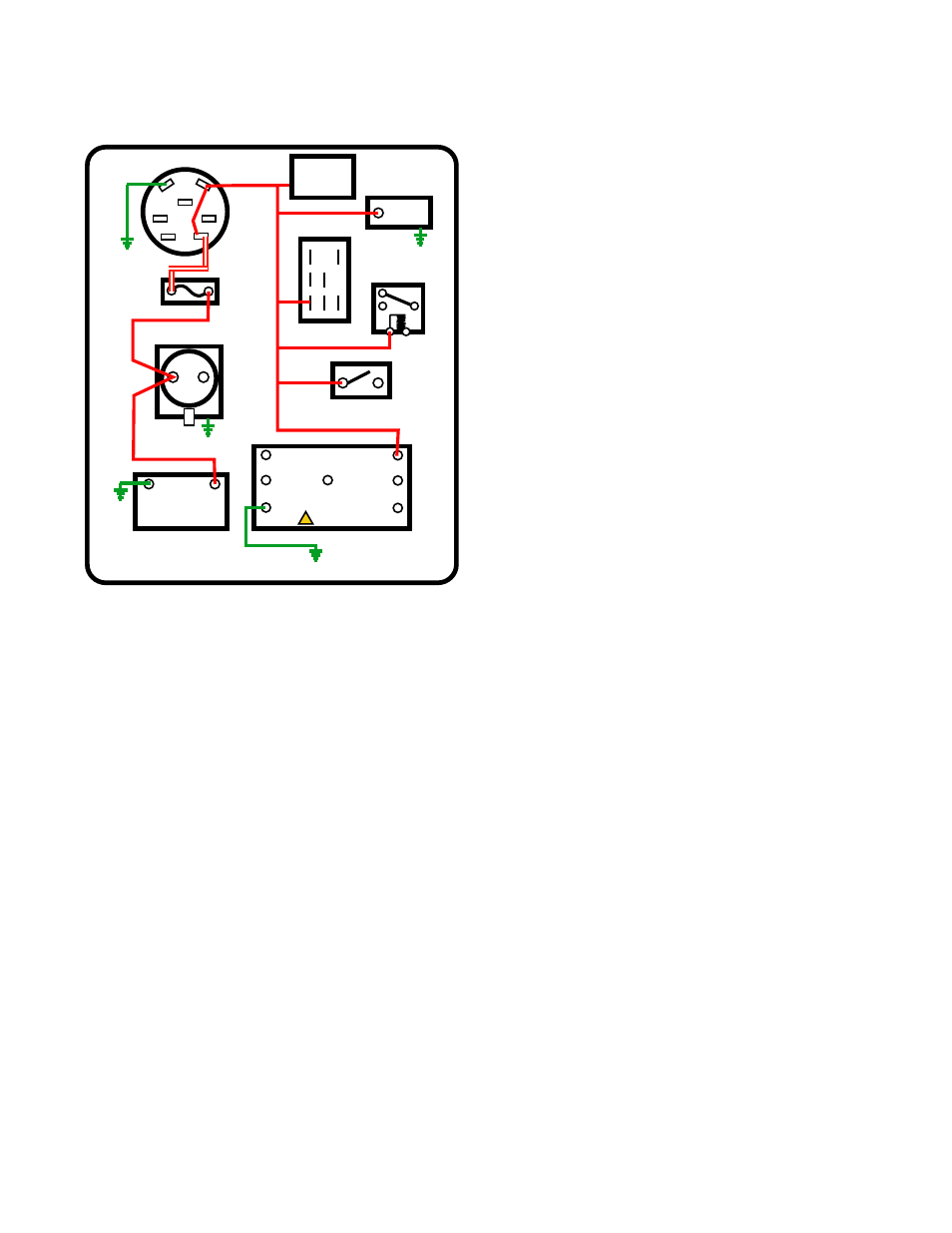

Figure 7.16
