Body
17
Floor pan
To remove/replace the floor pan:
1. Remove the deck by following the procedures
described in Chapter 8: Decks and Lift Shafts.
2. Remove the two screws that hold the tilt steering
pedal using a T-30 torx driver. See Figure 4.1.
3. Remove the tilt steering pedal.
4. Remove the rear nut, bolt and spacer from the deck
lift indexing bracket using a pair of 9/16” wrenches.
See Figure 4.2.
5. Remove the clevis pin from the deck lift indexing
bracket. See Figure 4.2.
6. Lower the deck lift pedal.
7. Remove the pedal by removing the shoulder bolt and
nut using a pair of 9/16” wrenches.
NOTE: On mowers equipped with a 60” deck, there are
two lift assist springs. With the deck removed,
these springs will hold the lift pedal arm in the for-
ward position with great force.

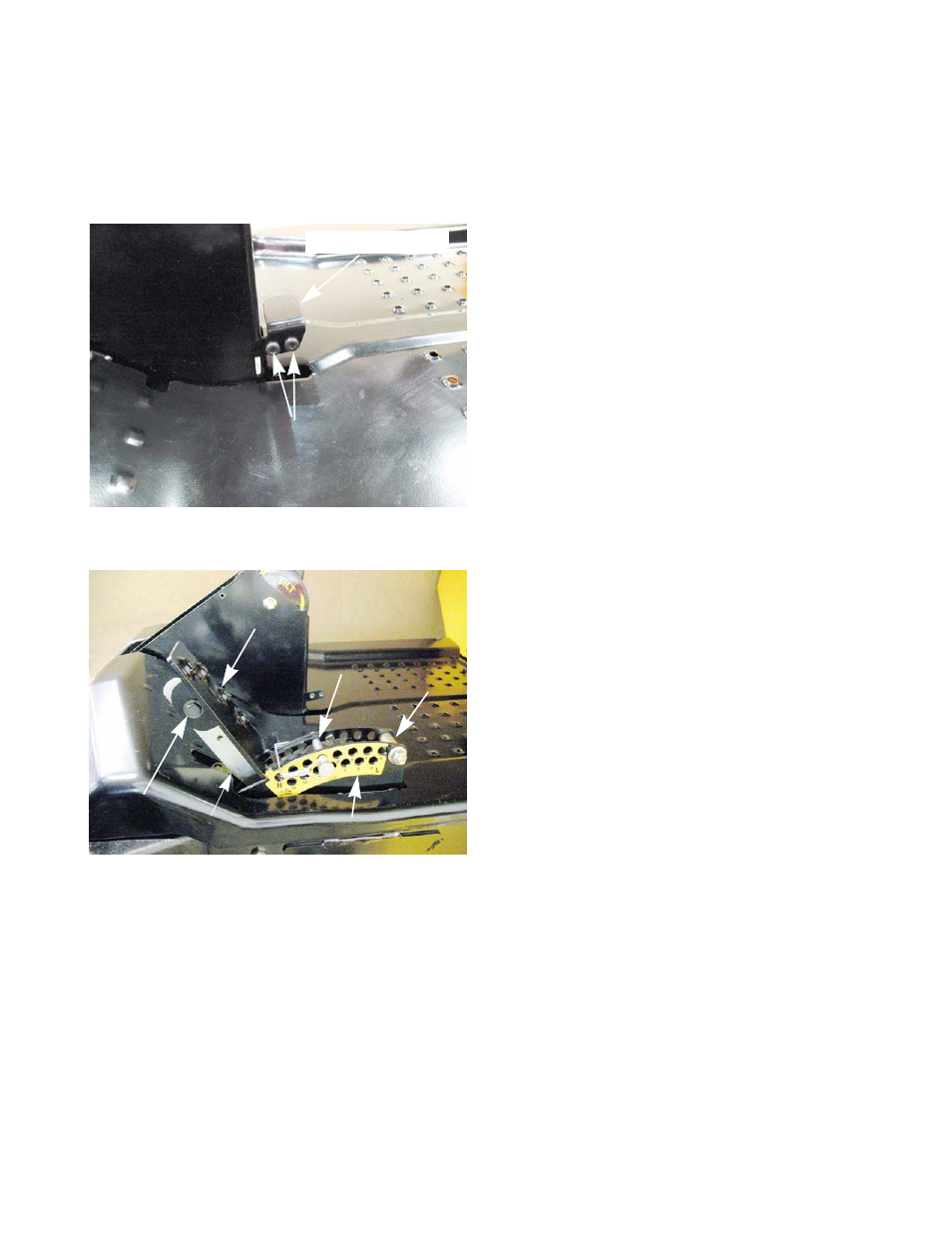

Figure 4.1
Tilt steering pedal
Screws
Figure 4.2
Deck lift indexing bracket
Spacer
Clevis pin
Deck lift pedal
Shoulder bolt
Lift pedal arm
CHAPTER 4: BODY
