NOTE: On mowers equipped with a 60” deck, dis-
connect the deck lift assist spring.
6. Remove the nuts and bolts that hold the fuel tank
bracket to the control console using a pair of 1/2”
wrenches. See Figure 4.19.
7. Remove the two screws that hold the rear of the
control console to the seat box assembly using a T-
30 torx driver and a 7/16” wrench. See Figure 4.20.
NOTE: On mowers equipped with a 60” deck, the
upper screw will go through a reinforcement
plate for the lift assist spring.

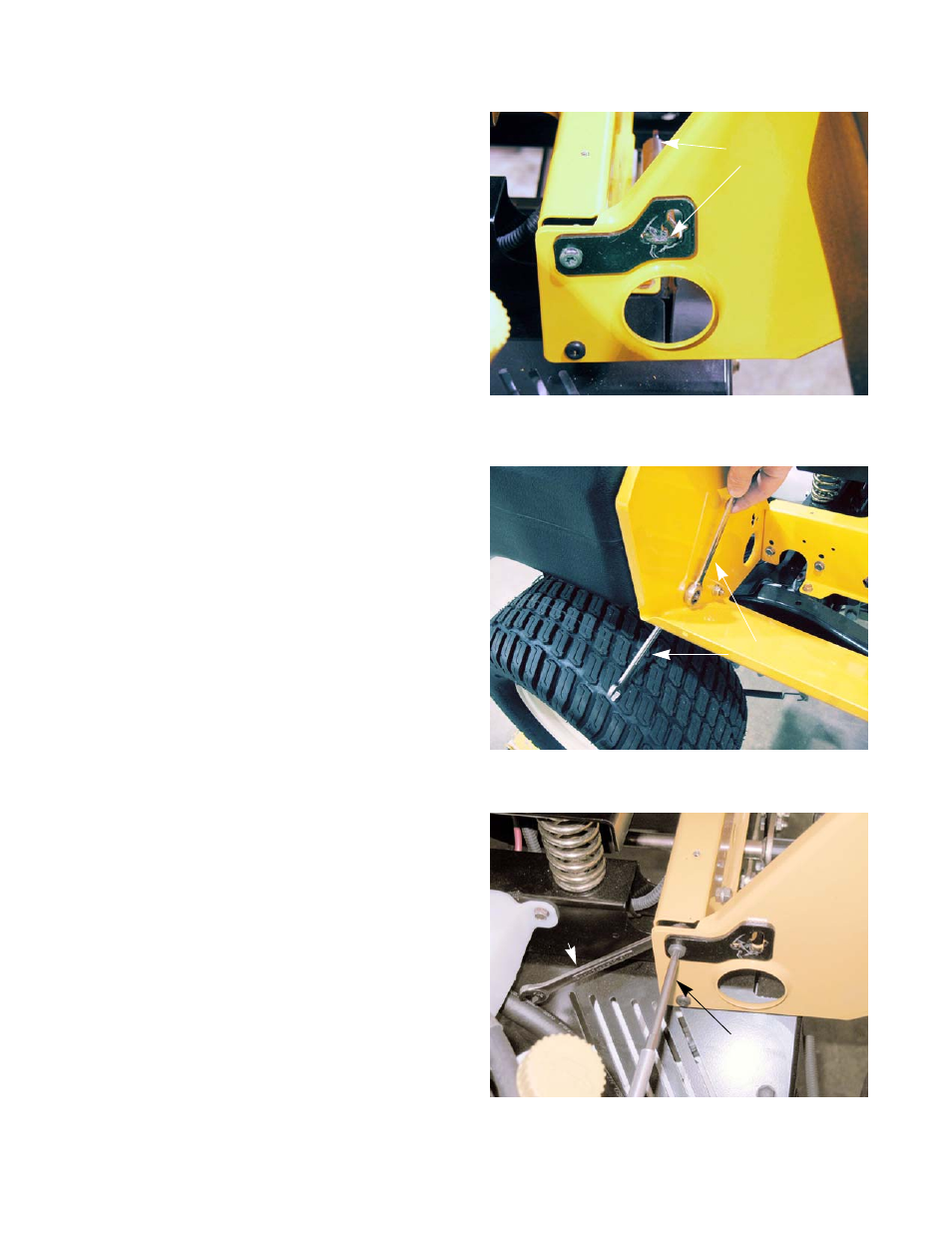

Figure 4.18
Lift assist spring
Figure 4.19
1/2” wrenches
Figure 4.20
7/16” wrench
T-30 driver
