Z-Force-S
80
10. Remove the lower steering shaft bushing.
NOTE: The long half of the steering shaft can be
inserted through the upper bushing hole and
used to tap out the lower bushing.
To remove the steering column dampener:
11. Remove the steering column dampener pivot bolts
using a 9/16” wrench and a 3/4” wrench.
See Figure 6.100.
12. Remove and discard the cotter pin that secures the
end of the dampener to mounting post inside the
steering column. See Figure 6.101.
13. Slide the dampener off of the mounting post.

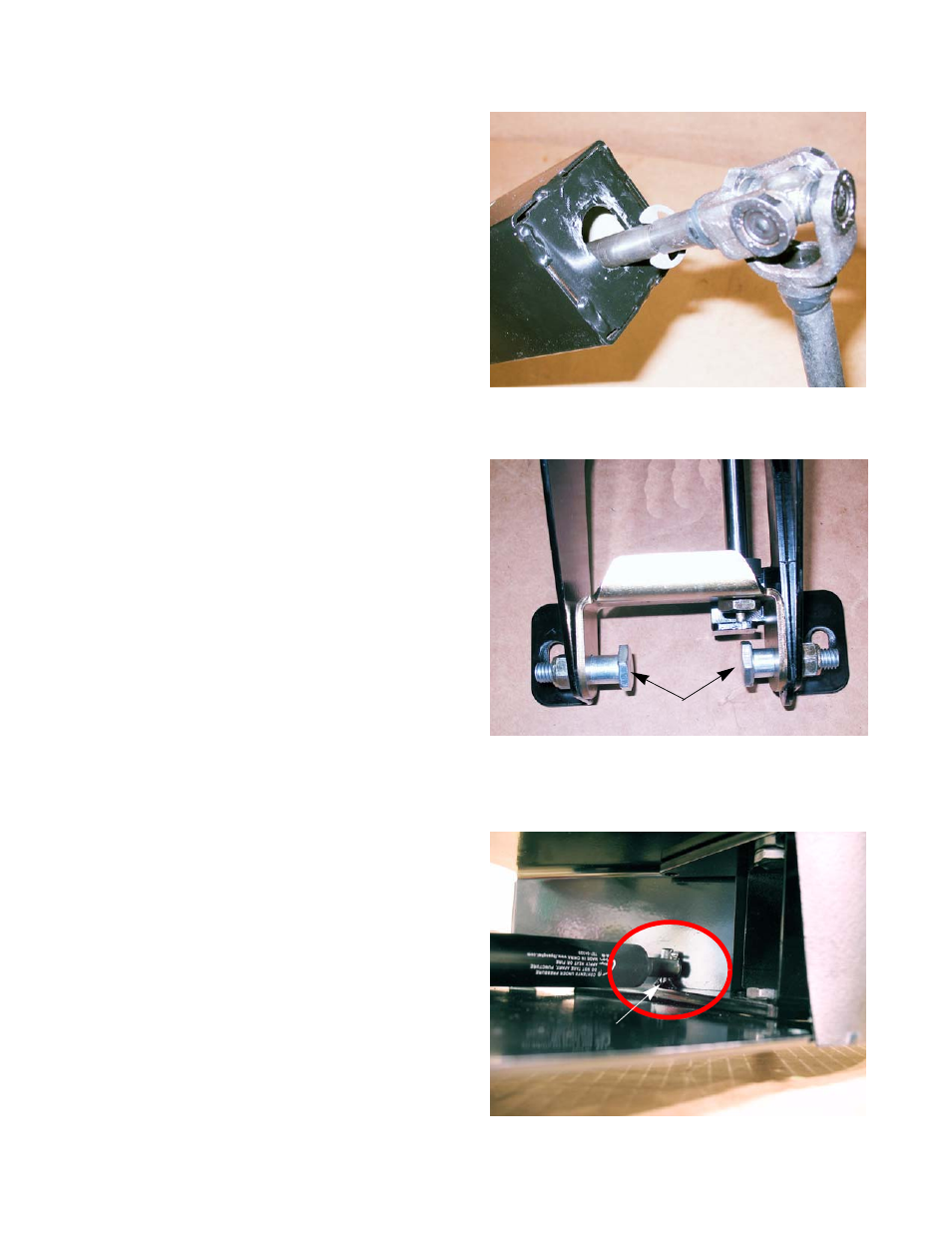

Figure 6.99
Figure 6.100
Pivot bolts
Figure 6.101
Mounting post
