Steering
63
14. Fill the lower housing with 12 oz. of 737-0300A Duri-
na TM grease. See Figure 6.56.
15. Install the steering rack and bushings.
See Figure 6.57.
NOTE: The rack must be centered. When centered, the
rack will measure 1.7” from the shoulder to the
housing. See Figure 6.57. inset
IMPORTANT: Before proceeding, test fit the input shaft
into the ball bearings for the cover. The input shaft
needs to have a slip fit. If it is too tight, clean the
shaft with some emery cloth.
16. Install the input shaft so that it is centered with the
hole in the sector gear and the center of the void for
the wear block. See Figure 6.58.

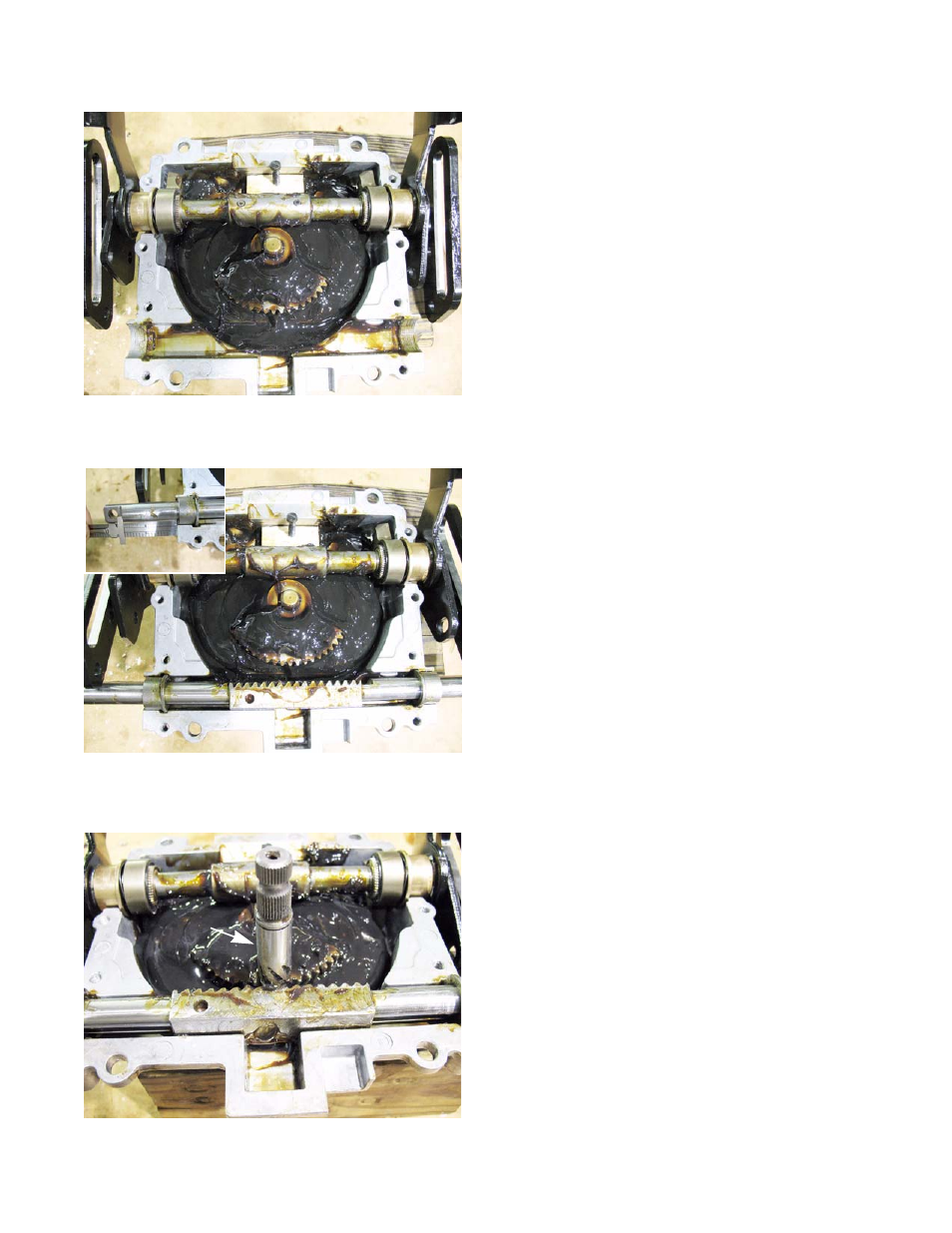

Figure 6.56
Figure 6.57
Figure 6.58
Input shaft
