Spindle pulleys and spindle shafts
To replace a pulley or spindle shaft:
1. Remove the deck as described at the beginning of
this chapter.
2. Slip the deck belt off of the spindle pulley that is to
be serviced.
NOTE: To reach the outer spindles, remove the
spindle covers. See Figure 8.12.
3. Remove the blade nuts using an impact wrench and
a 1 1/8” socket.
4. Left the spindle shaft out of the spindle housing.
See Figure 8.13.
5. Remove the pulley. See Figure 8.14.
6. Install the spindle pulleys by following the above
steps in reverse order.
NOTE: Tighten the blade nut to a torque of 100 -
120 ft-lbs (136 - 163 Nm).
7. Test run the mower before returning to service.

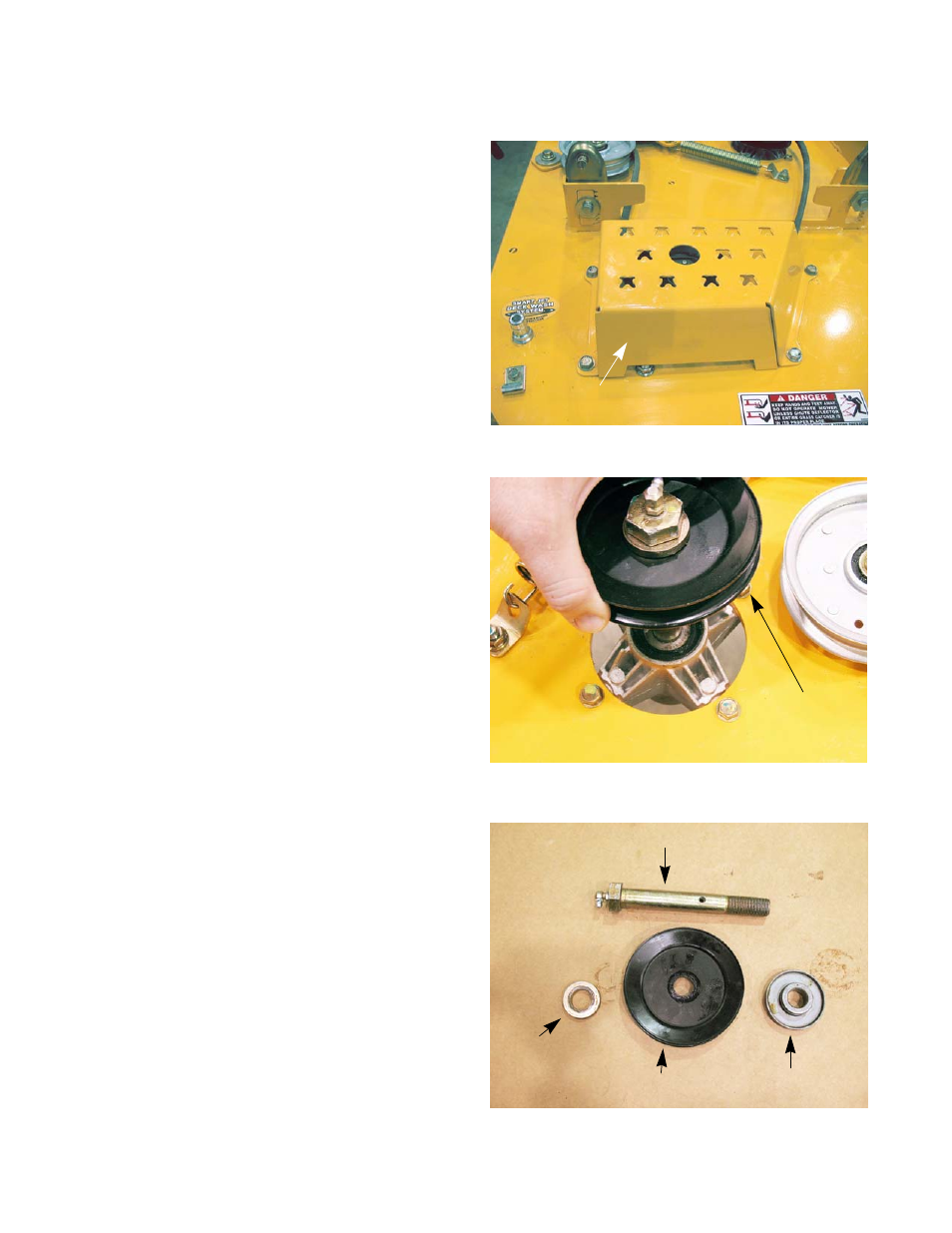

Figure 8.12
Spindle cover
Figure 8.13
Spindle
pulley
Figure 8.14
Spindle shaft
Pulley Bearing protector
Washer
