7. Remove the two screws that secure the fan cover to
the frame using a 1/2” wrench. See Figure 5.3.
NOTE: On the mowers equipped with a 60” deck,
the screw on the left side also goes through
the harness clamp. See Figure 5.3. Insert.
8. Slide the fan cover out of the mower on the side that
has the tire removed.
9. Remove the transmission fans using a 3/8” wrench.
10. Slide the drive belt off of the transmission pulleys.
11. Unplug the electric PTO harness. See Figure 5.1.
12. Unbolt the electric PTO using an impact wrench and
a 5/8” socket. See Figure 5.5.
NOTE: If the PTO clutch will not slide off of the
crankshaft, thread the bolt half way into the
crankshaft. Make sure the belt keeper is in
place to prevent the clutch from rotating.
Start the engine and turn the PTO on and off
several times to shake it loose.
NOTE: If the PTO will not come off using the steps
above, remove the engine mounting bolts
and slide the engine forward. This will give
enough clearance to slide the belt off of the
engine pulley.

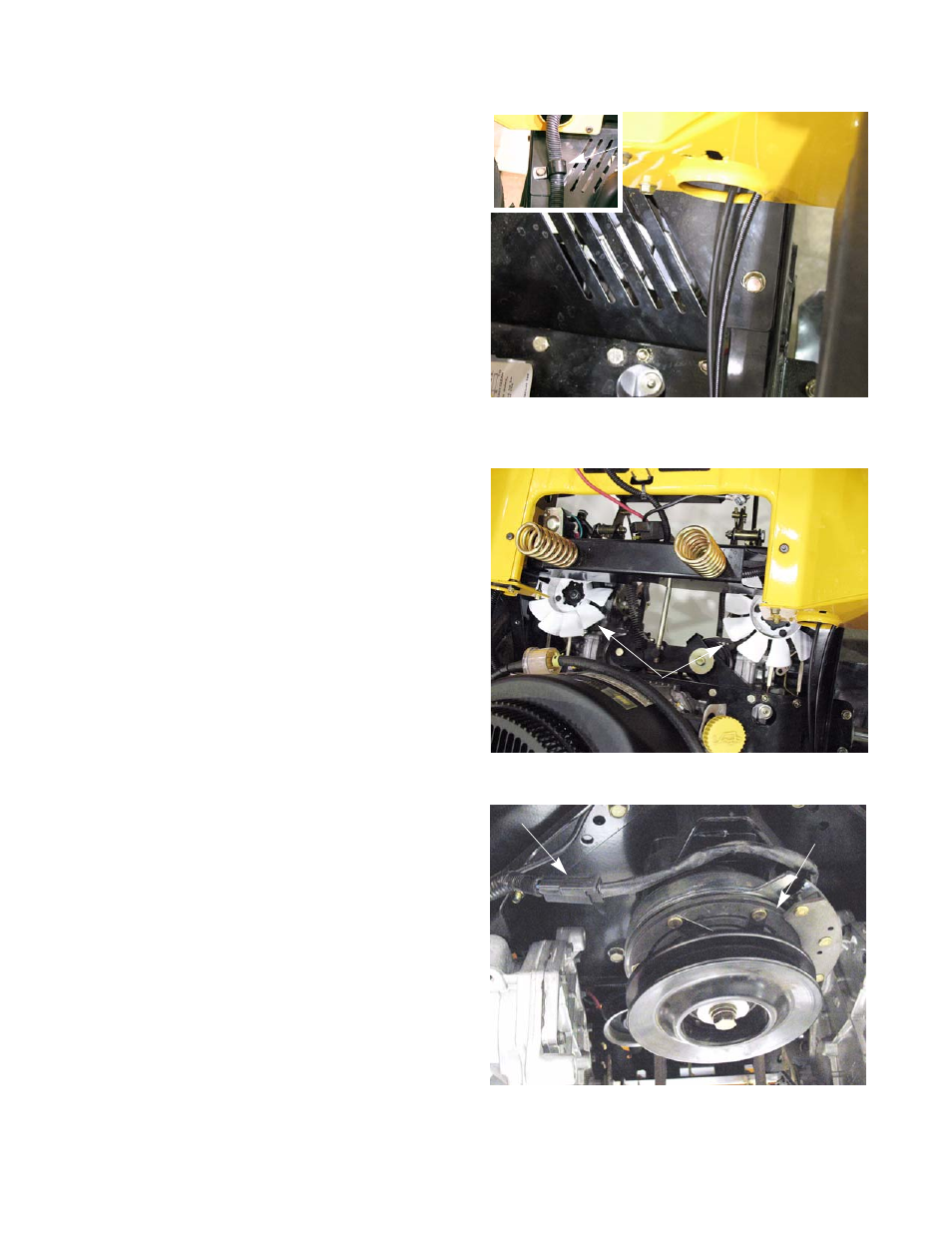

Figure 5.3
Harness clamp
Figure 5.4
Transmission fans
Figure 5.5
PTO clutch
PTO harness
