15. Install the return to neutral spring. See Figure 6.26.
16. Connect the reverse switch. See Figure 6.27.
17. Connect both of the drive control links by installing
the nuts and bolts that attach the connector plates to
the drive control link using a pair of 7/16” wrenches.
See Figure 6.28.
18. Adjust the drive control links so they slide freely into
the hole in the selector plate. Install the hairpin clips.
19. Remove the locking bolt from the steering gearbox,
and install the plug screw.
20. Install the floor pan by following the steps described
in Chapter 4: Body/Chassis.
21. Install the steering column cover.
22. Test drive the riding mower in a safe area before
returning it to service.
23. Install the deck.

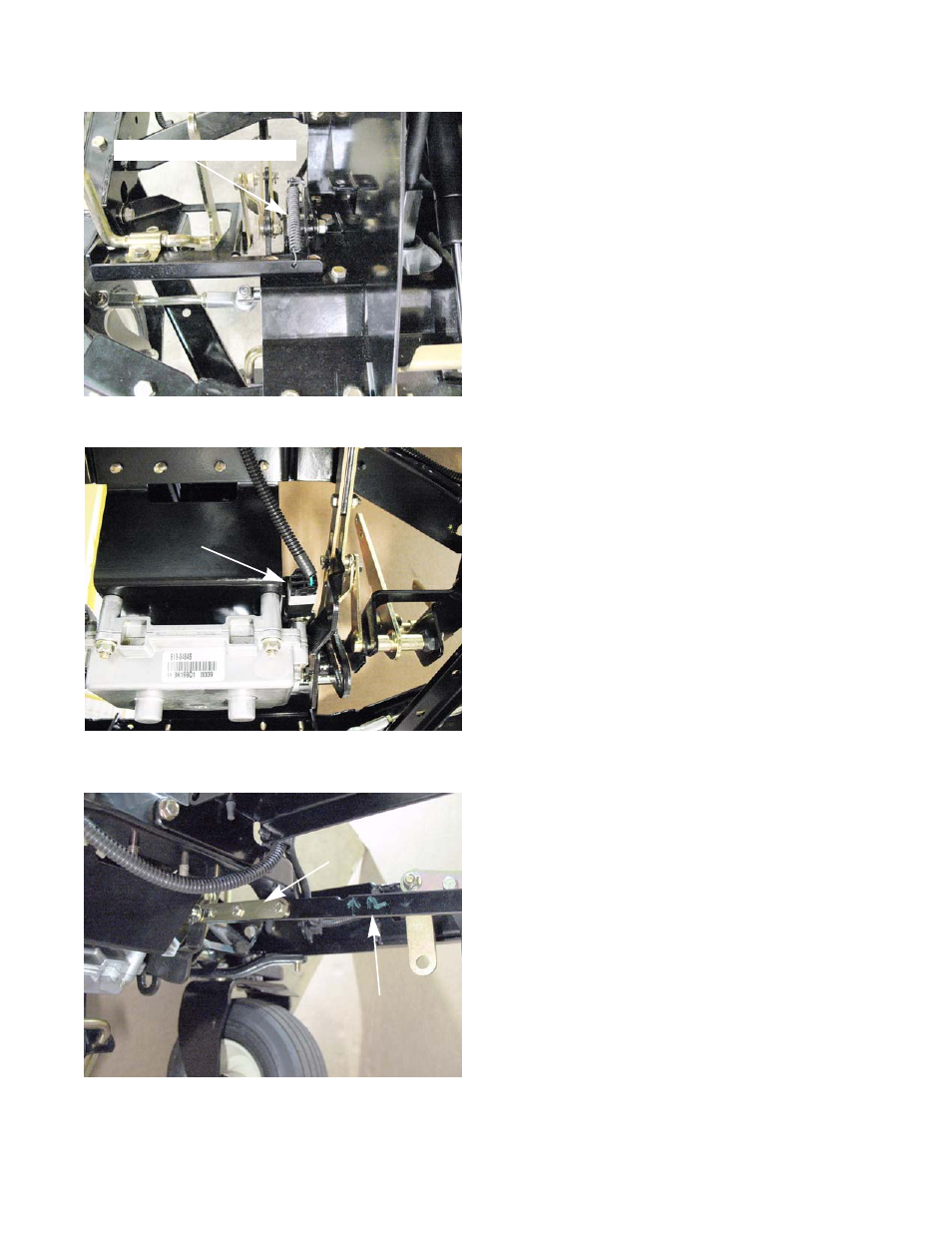

Figure 6.26
Return to neutral spring
Figure 6.27
Reverse switch
Figure 6.28
Drive control link
Connector plate
