8. Disconnect both of the tie rods from the steering
gearbox using a pair of 1/2” wrenches.
See Figure 6.12.
NOTE: There is a spacer between the tie rod end
and the steering rack.
NOTE: The bolt has a special tapered shoulder. Do
not replace it with a standard bolt.
9. Disconnect the reverse switch. See Figure 6.13.
10. Disconnect both of the drive control links by remov-
ing the nuts and bolts that attach the connector
plates to the drive control link using a pair of 7/16”
wrenches. See Figure 6.14.

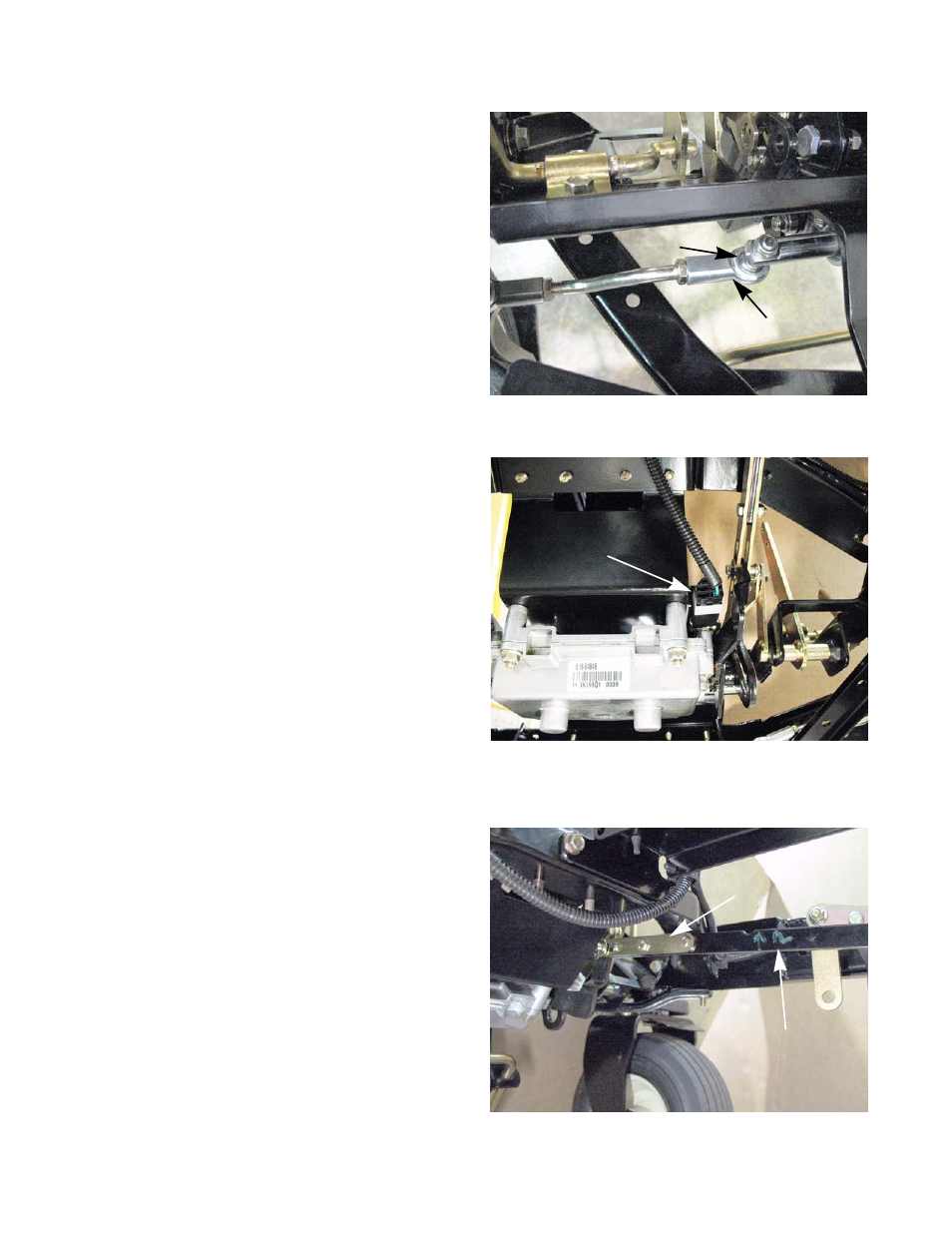

Figure 6.12
Tie rod end
Spacer
Figure 6.13
Reverse switch
Figure 6.14
Drive control link
Connector plate
