Steering
51
6. Insert two 5/16” pins through the holes in the axle
castings. The pins should pass through the casting
down to the wheel yokes. See Figure 6.20.
NOTE: The flat side of the yoke should be parallel to the
box section of the frame when the pins are
installed. See Figure 6.21.
If they are not:
• Check for a bent yoke.
• Remove the yoke and check the gear timing. See
the yoke section of this chapter for the proper pro-
cedures.
7. Center the steering wheel. See Figure 6.22.

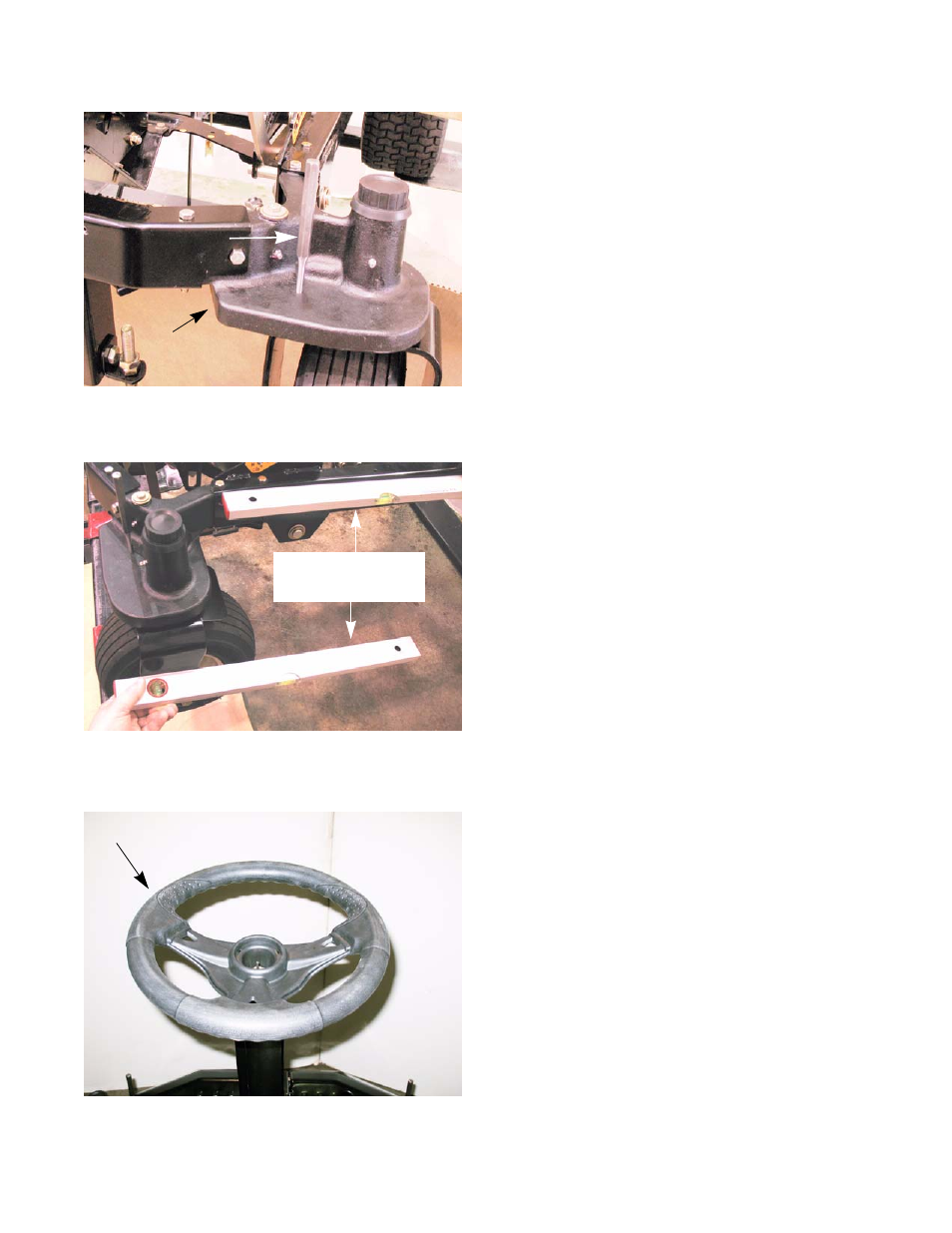

Figure 6.20
5/16” pin
Axle casting
Figure 6.21
The yoke is parallel
to the frame
Figure 6.22
Center the steering wheel
