Cub Cadet Z-Force S Series User Manual
Page 87
Steering
81
14. Remove the pivot bracket from the dampener using
a pair of 17 mm wrenches. See Figure 6.102.
NOTE: This dampener has a locking feature. The pin
extending from the threaded end of the dampener
releases the dampener so that it can extend or
retract. See Figure 6.102.

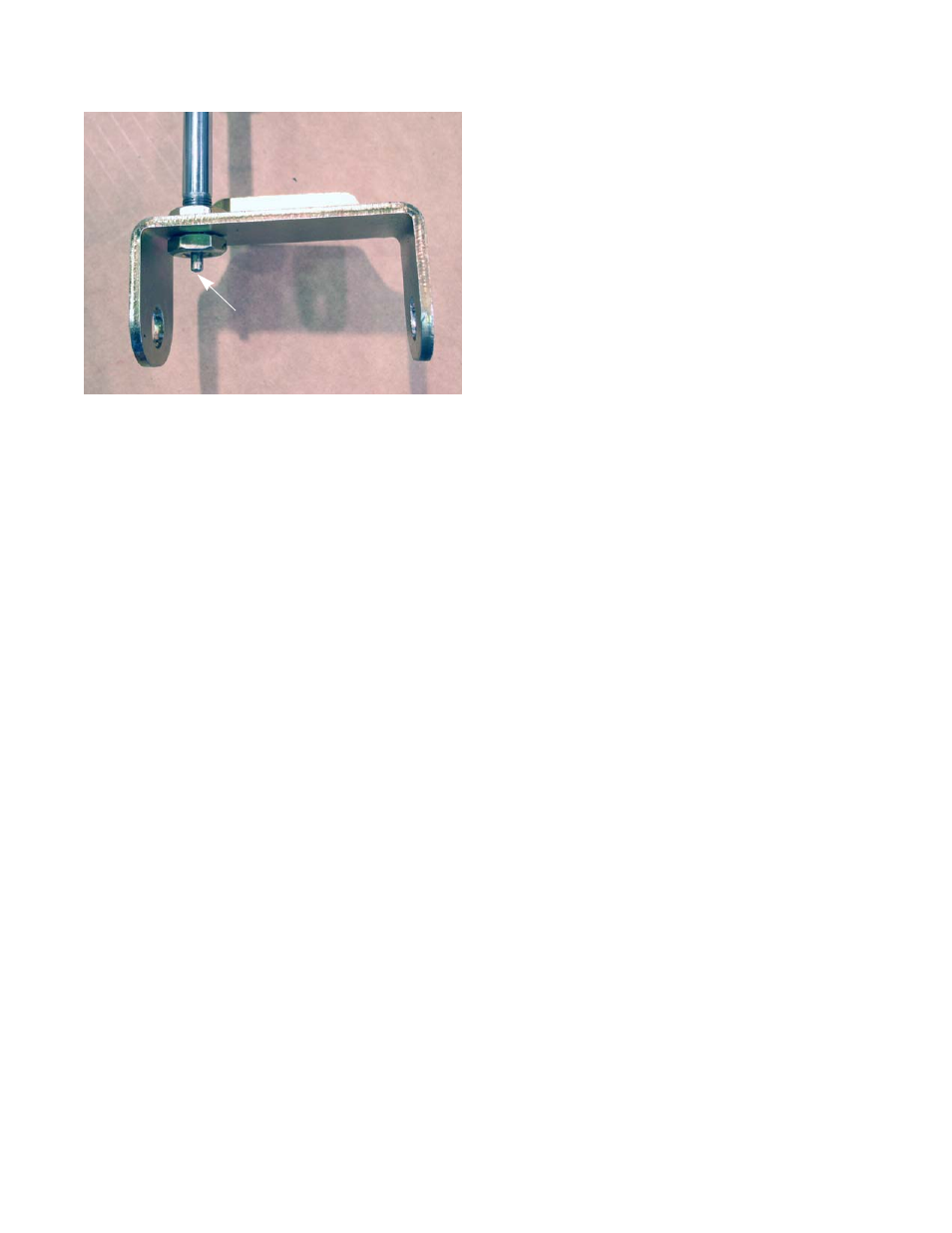

Figure 6.102
Pivot bracket
Pin
