Decks and Lift Shaft
153
Deck lift pedal lever
To remove/replace the deck lift pedal lever:
1. Remove the floor pan by following the procedures
described in Chapter 4: Body.
2. Disconnect the pedal link from the deck lift pedal
lever using a 15/16” wrench and a 9/16” wrench.
See Figure 8.34.
3. Remove the E-ring that secures the deck lift pedal
lever to the frame. See Figure 8.35.
4. Rotate the deck lift pedal lever toward the rear of the
mower and slide it out of the frame.
5. Remove the hex flange bushings.
NOTE: The outboard hex flange bushing can be replaced
without removing the deck lift pedal lever, but the
inboard one can not.
6. Install the deck lift lever pedal by following the previ-
ous steps in reverse order.
7. Test run the mower in a safe area before returning it
to service.

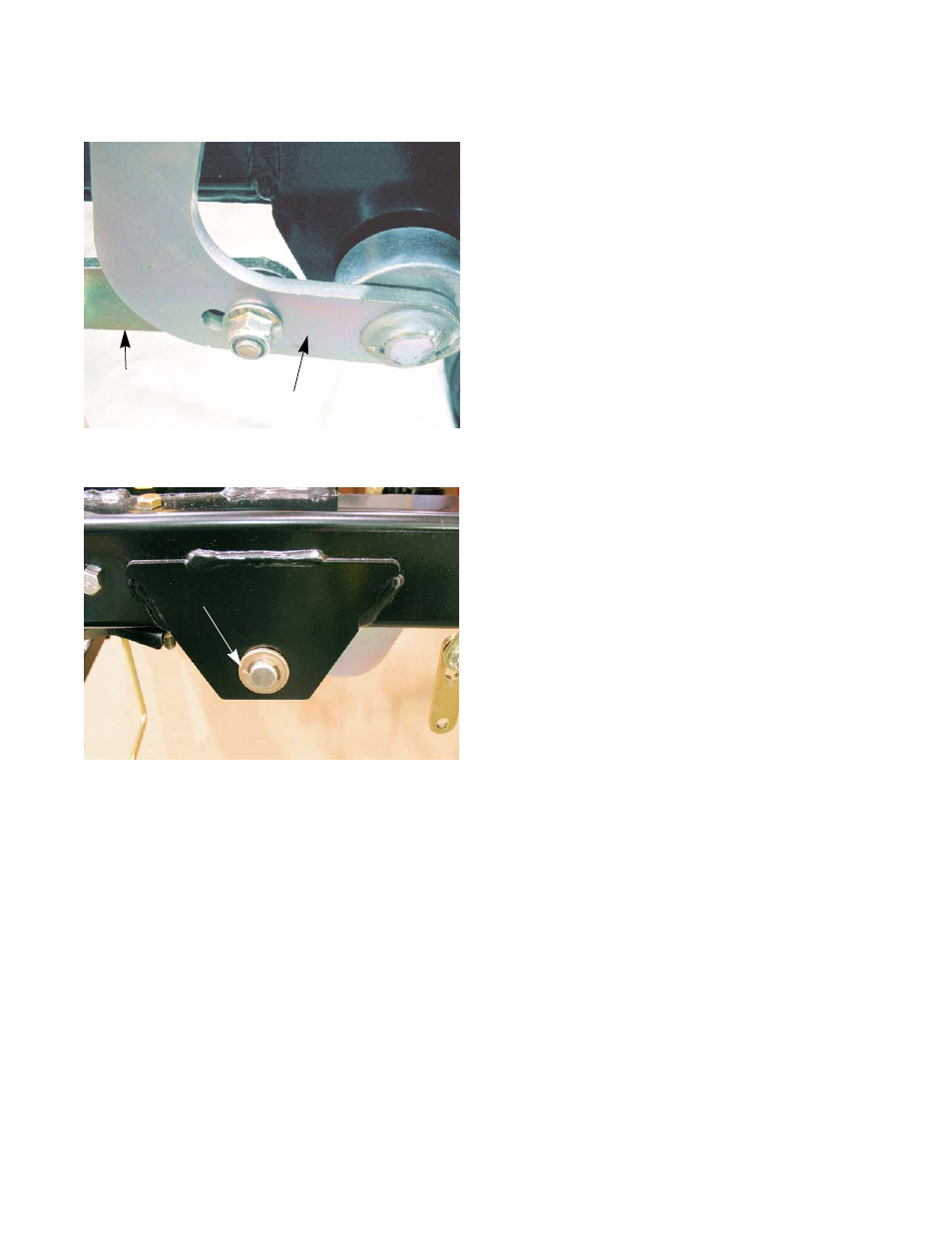

Figure 8.34
Deck lift pedal lever
Pedal link
Figure 8.35
E-ring
