Body
19
Left control console
To remove/replace the left side control console:
1. Disconnect the negative battery cable.
2. Remove the deck by following the procedures
described in Chapter 8: Decks and Lift Shafts.
3. Remove the two screws from the underside of the left
control panel using a T-30 torx driver. See Figure 4.6.
NOTE: Technicians with good dexterity can remove the
RMC module, PTO switch and hour meter with out
removing the left control panel.
• Release the parking brake
• Remove the four screws that hold the park brake
locking plate to the control panel.
• Gentle lower the locking bracket to prevent dam-
age to the parking brake switch.
• Reach into the opening to access the switches.
4. Disconnect the PTO clutch harness. See Figure 4.7.
5. Disconnect the ground cable from the frame.
See Figure 4.7.

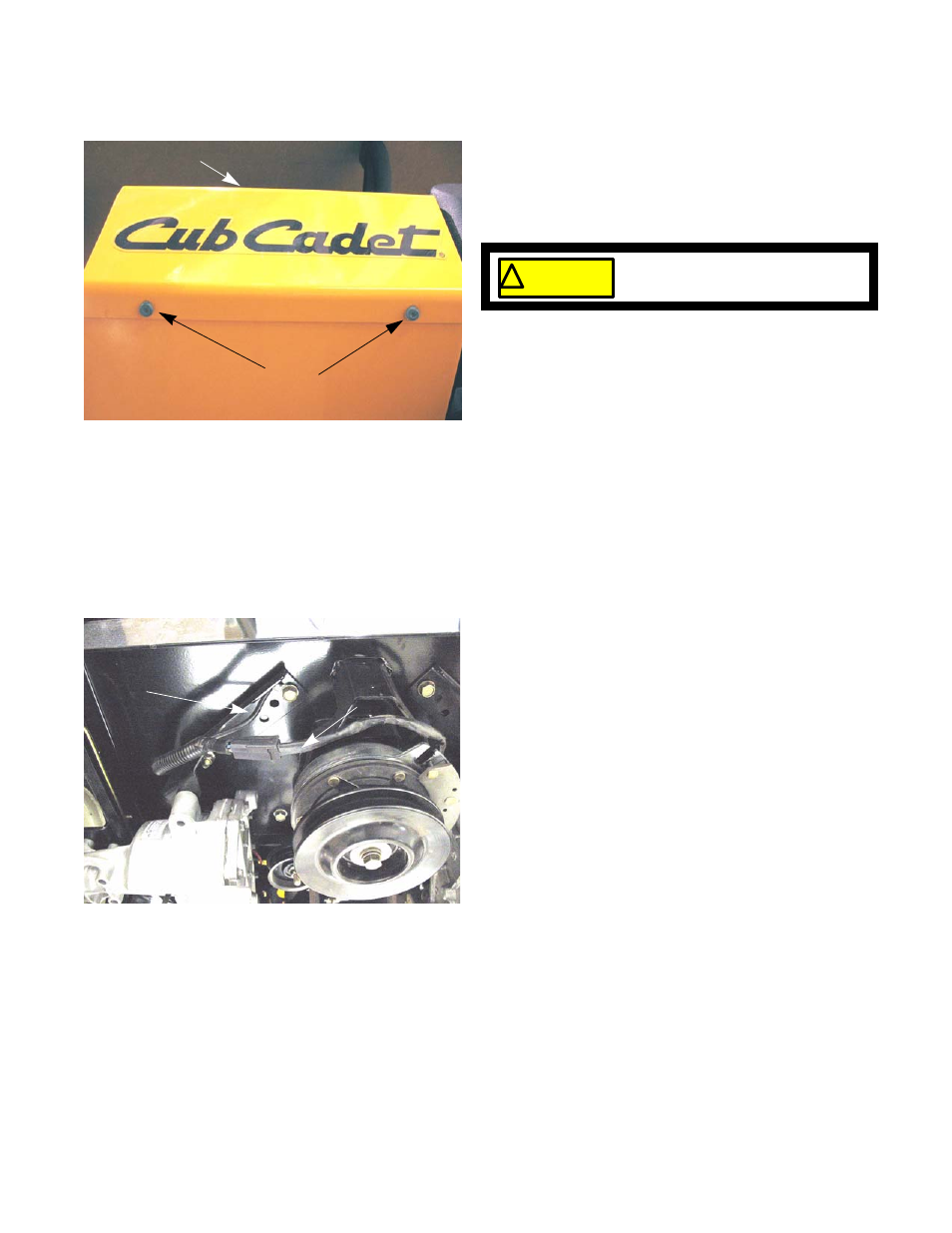

Figure 4.6
Screws
left control panel
! CAUTION ! CAUTION
Release the parking brake before
the control panel.
Figure 4.7
Ground cable
PTO clutch harness
