Z-Force-S
78
11. Manually move the front wheel yoke until the align-
ment holes line up.
12. Insert the 5/16” pin.
NOTE: The flat side of the yoke should be parallel
to the box section of the frame when the pins
are installed.
13. Adjust the tie rods until the ends line up with their
mounting point. See Figure 6.95.
14. Attach the tie rod to the steering rack.
NOTE: The spacer must be between the tie rod end
and the steering rack.
15. Attach the tie rod to the inboard steering gear.
16. Tighten the jam nuts.
17. Remove the 1/4”-20x2” screw from the steering
gear box.
18. Reinstall the original plug screw in the steering gear
box.
19. Install the steering column cover.
20. Remove the 5/16” pins.
21. Test drive the riding mower in a safe area before returning it to service.

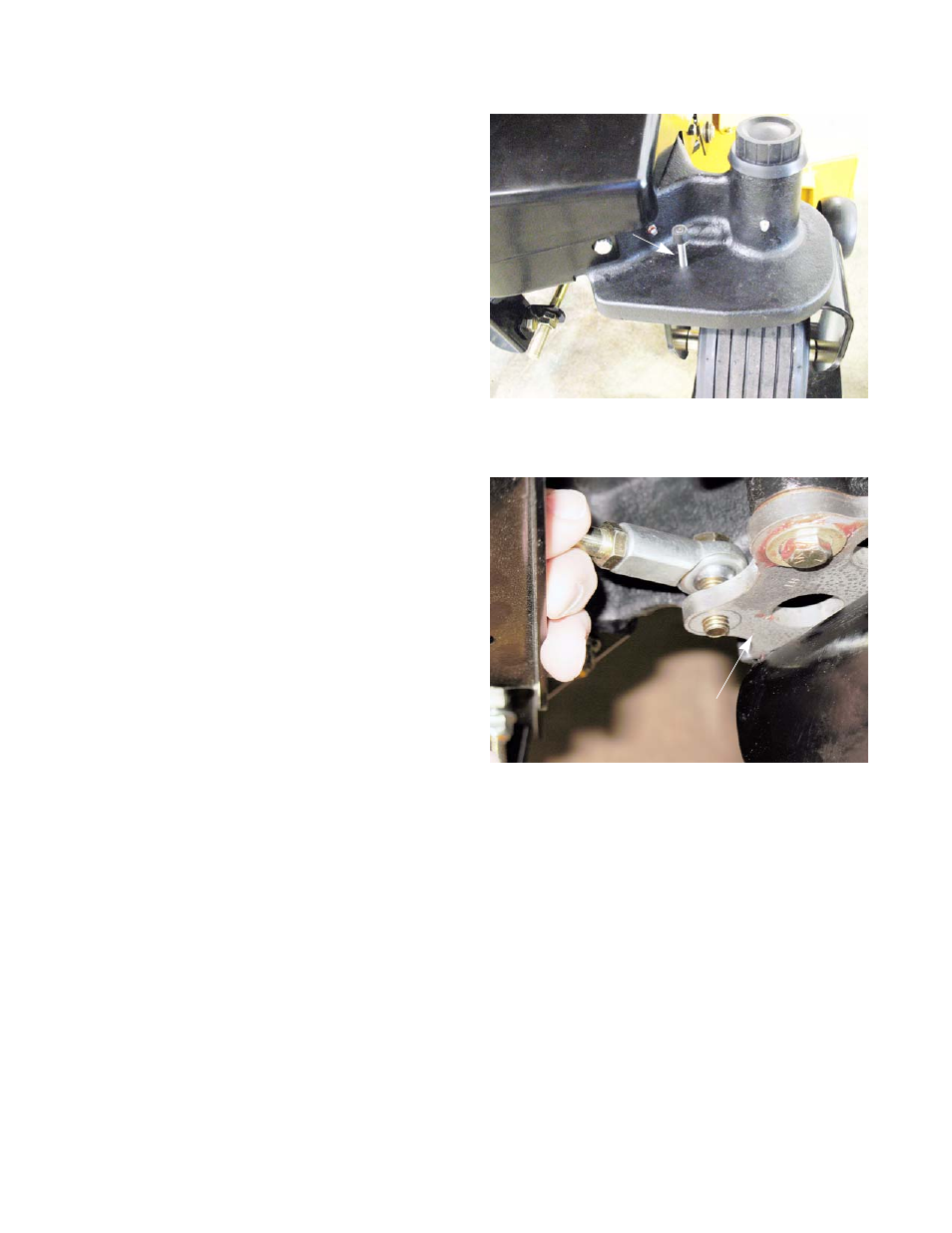

Figure 6.94
5/16” pin
Figure 6.95
Inboard steering gear
