- 17 -

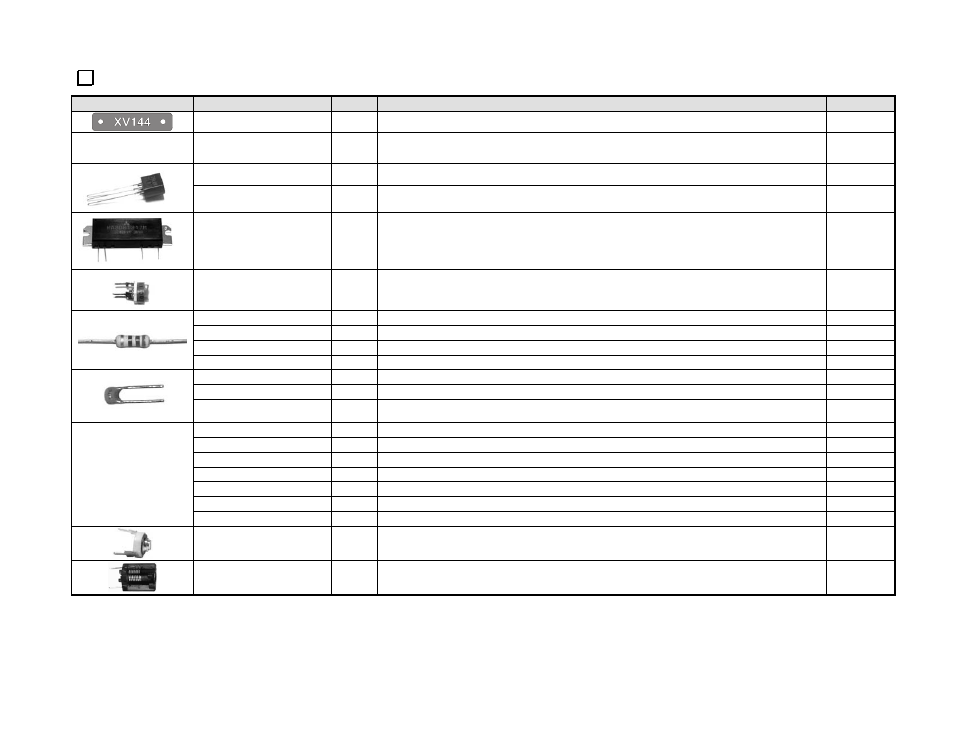

XV144: The following parts are included only in the XV144 transverter.
Ref. Designator(s)
QTY
Description
Part #
1
Front Panel Label, XV144
E980060
Pre-mounted on the
PCB
U6 1
Amplifier, MMIC, ERA-5 (Four-lead device with no tab. All four leads soldered to
PCB)
E600052
U3
1
Voltage Regulator, 5-volt, LM78L05
E600029
Q1
1
Transistor, NPN, NTE108
E580022
U7
1
RF Power Module, RA30H1317M
E600058
R39
1
Pot, PC mount, 1K ohm (102)
E520010
Z4, R29
2
Resistor, 1/4 watt, 56 ohm (grn-blu-blk)
E500096
R24
1
Resistor, 1 watt, 120 ohm (brn-red-brn)
E500105
R28
1
Resistor, 1/4 watt, 1K ohm (brn-blk-red)
E500013
R6
1
Resistor, 1/4 watt, 470 ohm (yel-vio-brn)
E500003
C14
1
Ceramic Capacitor, 0.1 LS, 33 pF (330)
E530116
C12
1
Ceramic Capacitor, 0.1 LS, 10 pF (100)
E530118
C13 1
Ceramic Capacitor, 0.1 LS, .047
F (473)
E530131
Pre-mounted on the
PCB
C42,C43
2
Ceramic Capacitor, SMD, 50 V , 27 pF
E530121
C44
1
Ceramic Capacitor, SMD, 50 V , 47 pF
E530122
C5
1
Ceramic Capacitor, SMD, 50 V, 2.2 pF
E530123
C48,C51, C28
3
Ceramic Capacitor, SMD, 50 V, 4.7 pF
E530125
C45,C47
2
Ceramic Capacitor, SMD, 50 V, 12 pF
E530126
C46
1
Ceramic Capacitor, SMD, 50 V, 15 pF
E530127
C49,C50
2
Ceramic Capacitor, SMD, 50 V, 1 pF
E530128
C1
1
Ceramic Trimmer Capacitor, 4-15 pF (Has a blue dot for identification)
E540003
L19
1
198 nH,7MM,RF Inductor, red
E690226
