- 12 -

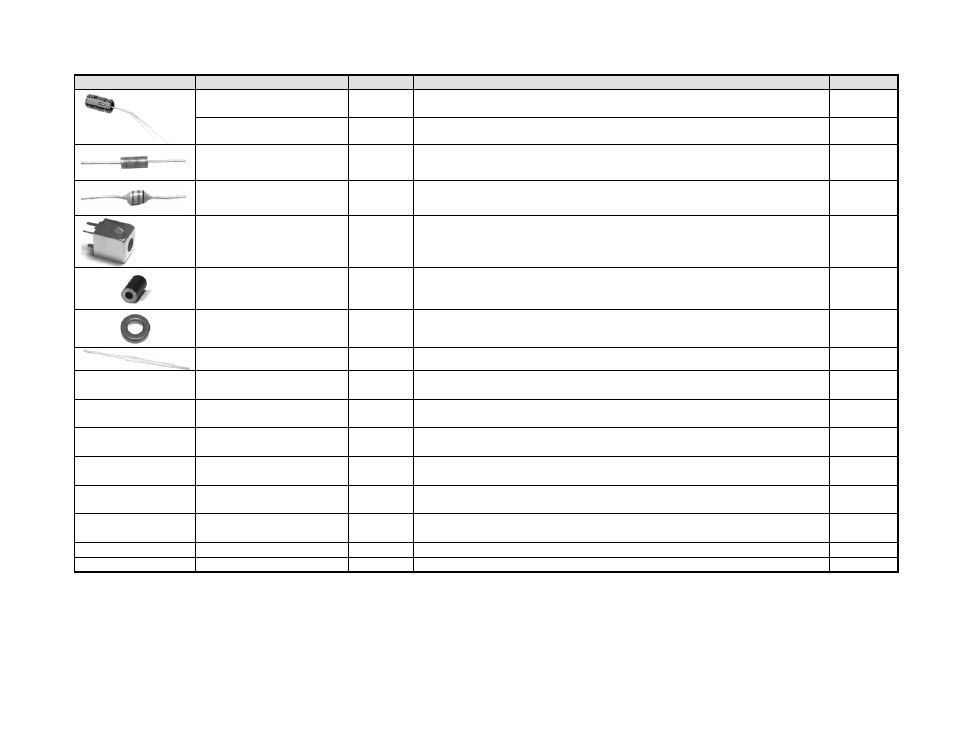

Picture Ref. Designator(s) QTY Description Part #
C26, C60 2 Electrolytic Capacitor, 22
F, 25 V E530012
None 1 Electrolytic Capacitor, 10
F, 16V E530142
L9 1 Molded Inductor, .47 H (yel-vio-silver) E690020
L8 1 Molded Inductor, 15
H (brn-grn-blk)* E690012
L15,L16,L17 3 Variable Inductor, .243-.297 µH, shielded, grey plastic insert. E690025
L7 2 Ferrite Bead E980029
T1 1 Toroid Core, FT37-43 E680003
1 5” Hex Tuning Tool E980068
12 in.
(30 cm)
Solid Insulated Wire, #24 E760008
12 in.
(30 cm)
Red magnet wire, , #26 E760002
12 in.
(30 cm)
Green magnet wire, #26 E760004
3 in.
(7.5 cm)
Bare copper wire, , #14 E760023
5 ft.
(1.5 m)
Red/Black 2-conductor wire, #12 stranded (for DC power wiring) E760017
3 ft.
(91 cm)
4-conductor shielded cable (serial I/O cable) E760009
1 Heat sink gasket, large E100170
1 Heat sink gasket, small E100171
* The color codes on these inductors are different than those used on resistors. See Identifying Molded Inductors on page 4.
