The remainder of the parts in your kit depend upon the band of operation. Check only the list that corresponds to your transverter.

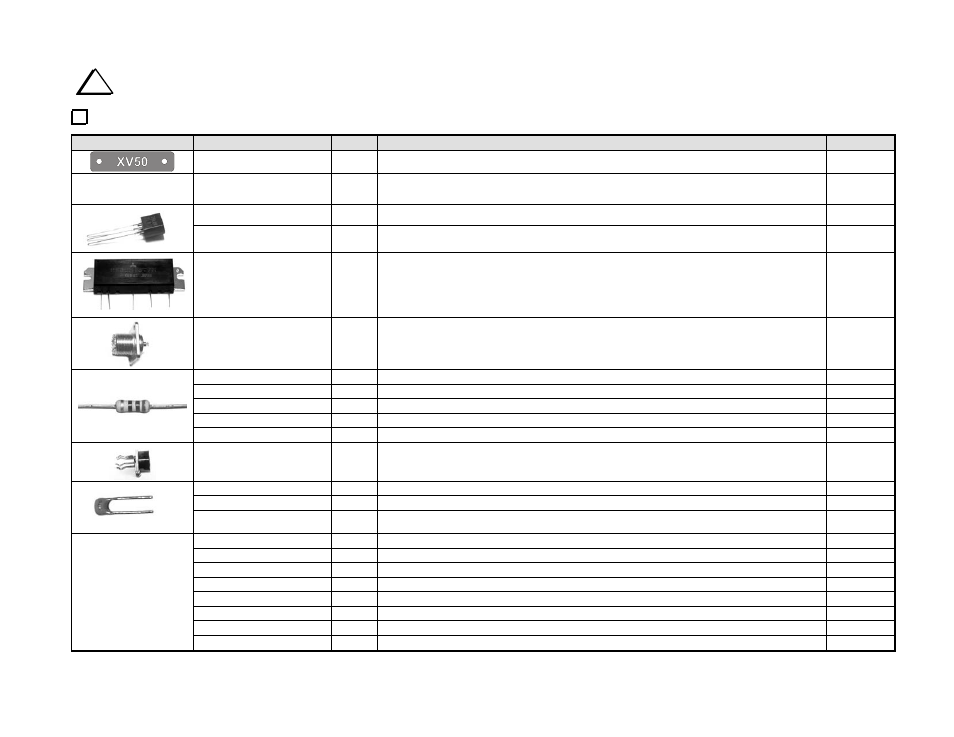

XV50: The following parts are included only in the XV50 transverter.
Ref. Designator(s)
QTY
Description
Part #
1
Front Panel Label, XV50
E980059
Pre-mounted on the
PCB
U6 1
SGA7489, Sirenza Gain Block Amplifier (Three-lead device with tab. Two leads
and tab are soldered to the PCB. Center lead is not connected)
E600055
U3
1
Voltage Regulator, 5-volt, LM78L05
E600029
Q1
1
Transistor, NPN, NTE108
E580022
U7
1
RF Power Module, RA30H0608M
E600056
J1
1
SO-239 Chassis Mount Connector
E620064
R24
1
Resistor, Metal Oxide, 2 watt, 5%, 68 ohm (68J)
E500078
Z4
1
Resistor, 1/4 watt, 5%, 56 ohm (grn-blu-blk)
E500096
R6
1
Resistor, 1/4 watt, 5%, 330 ohm (org-org-brn)
E500103
R29
1
Resistor, 1/4 watt, 56 ohm (grn-blu-blk)
E500096
R28
1
Resistor, 1/4 watt, 1K ohm (brn-blk-red)
E500013
R39
1
Pot, PC mount, 1K ohm (102)
E520010
C69
1
Ceramic Capacitor, LS 0.1, 10 pF (100)
E530118
C14, C58, C59
3
Ceramic Capacitor, LS 0.1, 390 pF (391)
E530051
C12
1
Ceramic Capacitor LS 0.1, 100 pF (101)
E530117
Pre-Mounted on the
PCB.
C42,C43
2
Ceramic Capacitor, SMD, 50 V, 82 pF
E530133
C44
1
Ceramic Capacitor, SMD, 50 V, 150 pF
E530134
C5,C49,C50
3
Ceramic Capacitor, SMD, 50 V, 2.2 pF
E530123
C48,C51
2
Ceramic Capacitor, SMD, 50 V, 10 pF
E530135
C28
1
Ceramic Capacitor, SMD, 50 V, 15 pF
E520127
C45,C47
2
Ceramic Capacitor, SMD, 50 V, 22 pF
E530136
C46
1
Ceramic Capacitor, SMD, 50 V, 27 pF
E530121
C32 1
Ceramic SMD Capacitor, .047
F, 50 V
E530120
