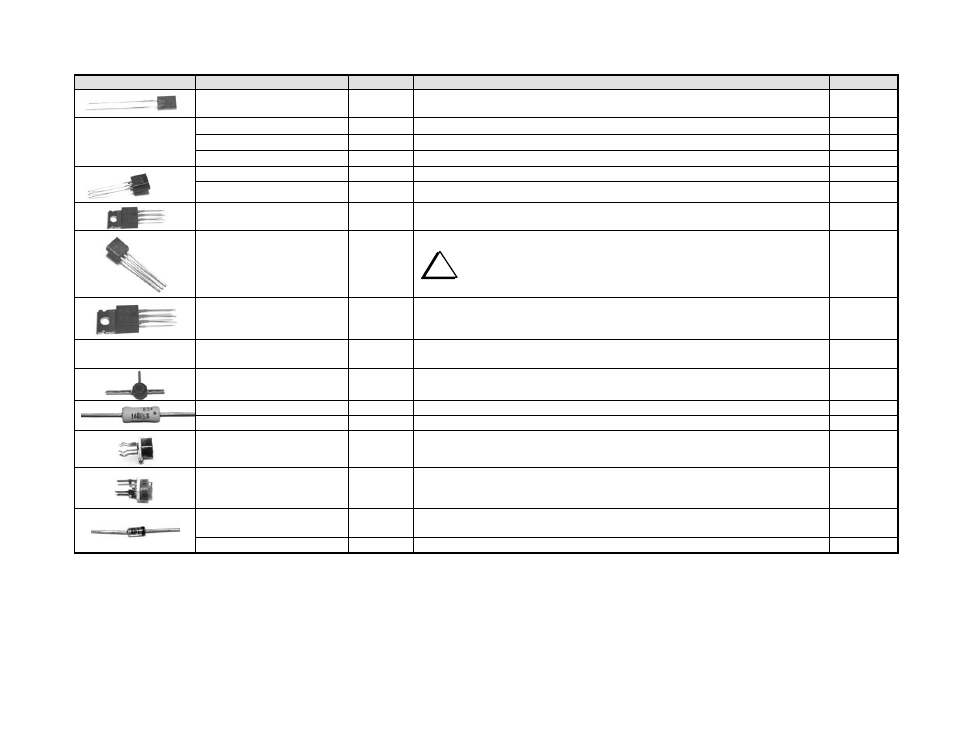

Ref. Designator(s)
QTY
Description
Part #
D10, D11
2
Diode, LED, Red
E570007
Pre-mounted on the
PCB
Z1
1
Frequency Mixer, ADEX-10H
E600050
U1
1
MMIC Amplifier, ERA-6
E600051
U5
1
MMIC Amplifier, MAR-3
E600073
U2
1
Voltage Regulator, 9 volt, LM78L09
E600054
Q6
1
Transistor, NPN, PN2222A
E580001
U4
1
Voltage Regulator, 5 volt, LM7805
E600024
Q5 1
Transistor, MOSFET, 2N7000
i
Handle with care – ESD Sensitive. May be shipped loose in an
ESD-safe bag with other parts.
E580002
Q4 1
Transistor, HEXFET, IRL620
E580018
Pre-mounted on
the PCB
Q3
1
Transistor, PHEMT, ATF 34143
E580020
Q2
1
Transistor, NPN , BFR96
E580021
R21
1
Resistor, metal oxide, 1 watt, 5%, 820 ohm (821)
E500094
R20, R26, R27
3
Resistor, metal oxide, 3 watt, 5%,160 ohm (160)
E500095
R10
1
Trimmer Potentiometer, PC mount, 100K ohm (104)
E520001
R13, R22
2
Trimmer Potentiometer, PC mount, 100 ohm (101)
E520008
D1, D2, D4, D13, D6,
D12, D9, D14, D15, D16
10 Diode,
1N4148
E560002
D7, D8
2
Diode, 1N5711
E560004
