- 8 -

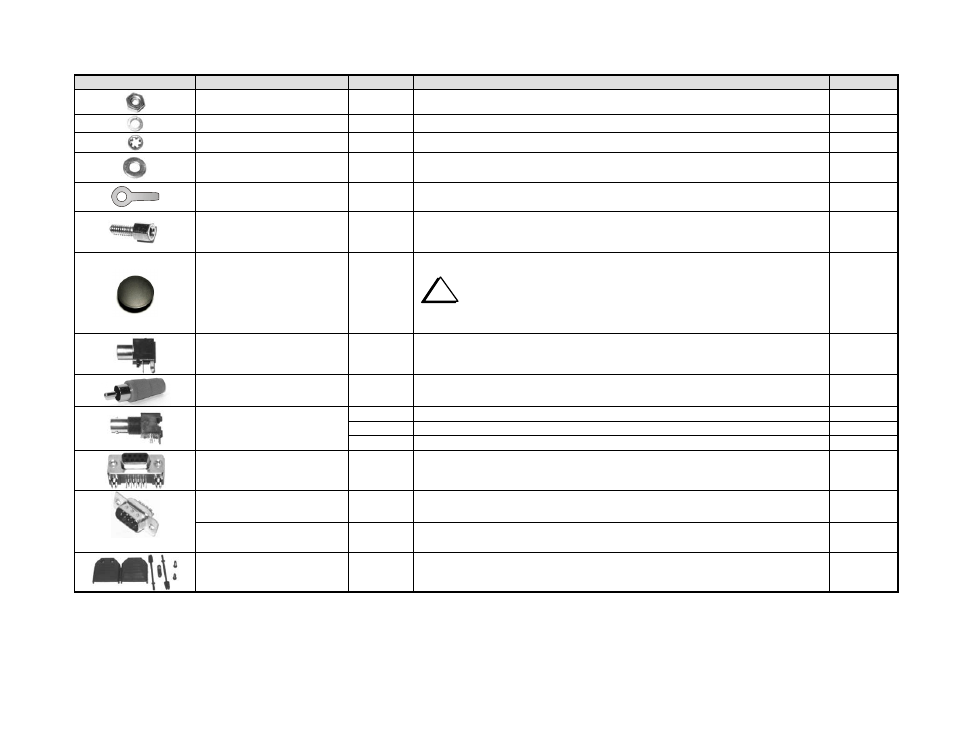

Picture Ref. Designator(s) QTY Description Part #
10 Machine Screw Nut, 4--40 E700011
14 Split Lock washer, #4 (Includes two spares) E700004
8 Internal Tooth Lock washer, #4 E700010
2 Flat Washer, #4 E700044
1 Ground Lug E700062
2 M-F Standoff for DB9 Connector E700078
4
Rubber Foot, Self Adhesive
i
A Bail kit is available as an optional accessory if desired. The
Bail will hold the front of the transverter up at a convenient viewing angle.
See www.elecraft.com for details
E980067
J4, J5 2 Jack, RCA E620057
1 Connector, RCA, Male (Mates with J4) E620108
J2, J3, J8
3 BNC Connector, PC Mount E620020
3 Nut for BNC Connector E700059
3 Lock washer for BNC Connector E700058
J6 1 DB9 Female Connector, PC Mount E620058
(Typical)
1 DB9 (9 pin) Male Cable Connector (Mates with J6) E620049
1 DB15 (15 pin) Male Cable Connector (mates with ACC Connector on K3) E620161
2
DB9 Back Shell (Shell components are normally packaged together in a
transparent bag).
E620050
