Elecraft XV Assembly Manual for XV222 User Manual
Page 12
- 9 -

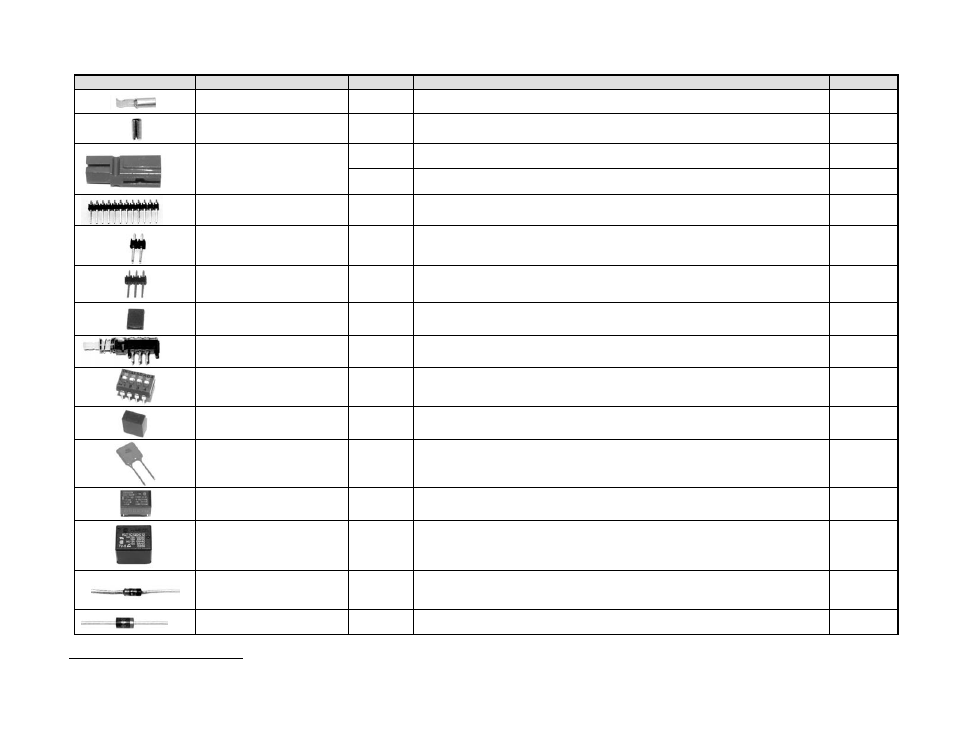

Ref. Designator(s)
QTY
Description
Part #
4
Anderson Powerpole® Connector Crimp Contact
E620062
1
Anderson Powerpole® Connector Roll Pin
E700071
J6
2
Anderson Powerpole® Housing , Red
E620059
2
Anderson Powerpole® Housing, Black
E620060
P1
1
Header Connector, 12 Pin , Right Angle
E620065
JP5,JP6, JP9
3
Header Connector, 2 Pin
E620054
JP1,JP2,JP3,JP4, JP5,
JP6, JP9
2
7
Header Connector, 3 Pin
E620007
9
Header Shorting Block, 2 Pin
E620055
S2
1
DPDT Power switch
E640006
SW1
1
4 Pole DIP switch
E640014
1
Key Cap, Black
E980023
F1
1
Resettable Fuse, 8 Ampere, 16 Volt
E980113
K1, K2, K4, K5, K6, K7,
K8, K9
8
Relay, Small
(
G6E-134P
)
E640011
K3
1
Relay, SPDT, 12 A, 12 VDC, Large (KLT1C12DC12).
E640012
D3
1
Diode, Zener, 6.8 volt, 1N5235B
E560011
D5 1
Diode,
SB530
E560003
2
JP9 comprises a three pin and a two pin header connector.
