80

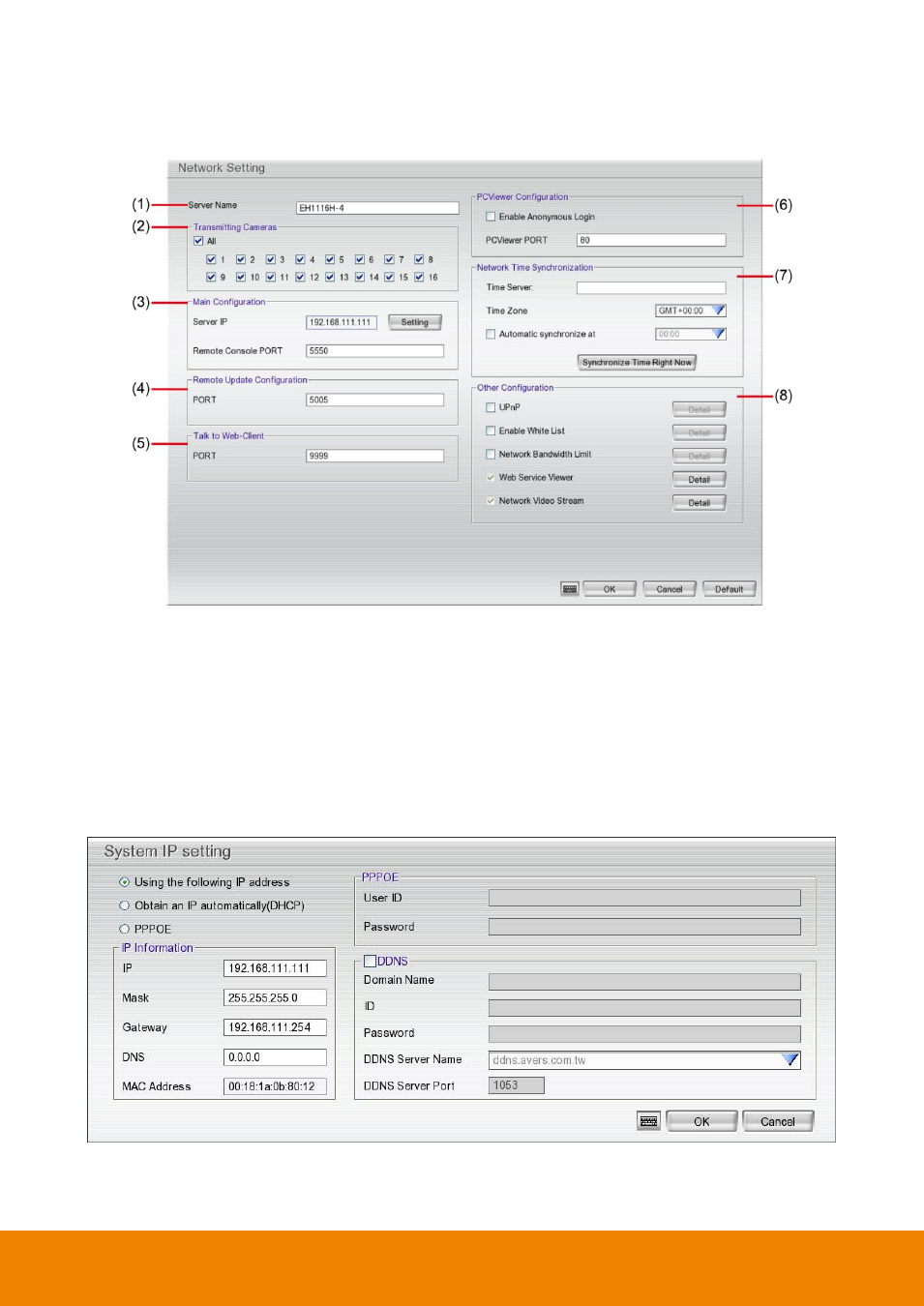

3.4 Network Setup
Click Default will back to the factory default value.
(1) Server Name
Assign a name for the DVR unit. Alphabet letters and numbers only.
(2) Transmitting Cameras
Select and click on the camera number in the Transmitting Camera section you want to make it accessible via
internet using PCViewer, Remote Console, PDA Viewer and JavaViewer (still image). To select all the cameras,
enable the ALL check box.
(3) Main Configuration
Set the DVR IP address and Remote Console Port. You need this when accessing DVR server from the
remote location via internet. Click Setting to setup DVR IP.
 Using the following IP address: Assigns an IP address for the DVR system. Fill in the IP related
parameters in IP information section.
- IP: Assign a constant IP address which a real IP address gives from ISP to DVR system.
